LAN WAN 48 Ports Sliding Fixed Odf FTTH Termination Box
LAN WAN 48 Ports Sliding Fixed Odf FTTH Termination Box
Specifications
Brand Name :
Sunet/OEM
Model Number :
SNT-TB
Certification :
ISO9001/ISO14001
Place of Origin :
Qingdao China
MOQ :
1 PCS
Price :
USD 20-50/PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs/Day
Delivery Time :
5-8 work days
Packaging Details :
Carton, 52*36*58cm
Product name :
FTTH Terminal Box
Application :
FTTH FTTB FTTX Network
Type :
12/24/48/96 ports
Connector type :
SC/LC/FC/ST
Color :
Grey and white
Fiber optic patch panel adapter :
SC/FC/ST/LC
Package :
Carton
Working temperature :
-40℃ ~ 80℃
Description

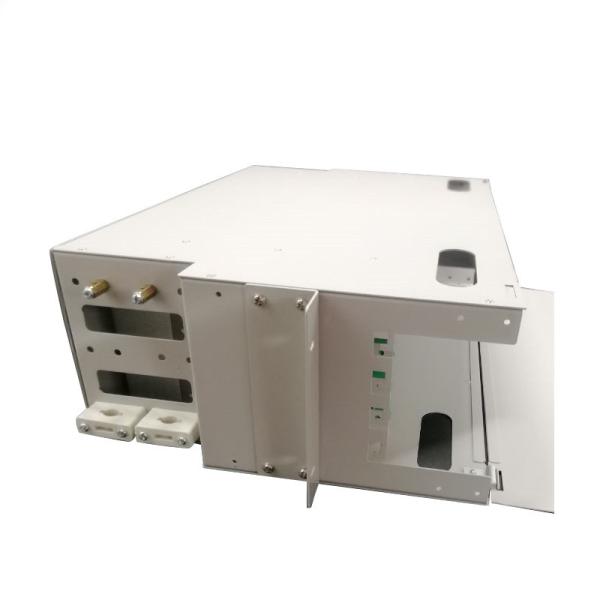

Odf Fiber Terminal Optical Distribution Frame Box

Termination Box Description

ODF is mainly used for cable inlet, grounding and fixing and the splicing between the terminal end and pigtail. Users can select unit or ring flange amount according to their practical needs. 19" ODF offers flexible cabling access, expandable frame design and comprehensive management. A series of optical distribution frames of 12 fibers, 24 fibers, 48 fibers, 72 fibers,96 fibers and 144 fibers counts type are available. ODF with pigtails and adapters contain one ODF, adapters and pigtails.

Termination Box Features

·Standard size, light weight and reasonable structure
·Splice tray inside changeable
·Can be used in 19'', 23'' standard distribution frame
·Suitable for ribbon and single fiber
·Various panel plate to fit different adapter interface
·Front mark on the plate is easy for identification and operation
·24C, 36C, 48C, 72C optional, with or without fiber optic pigtail and adapter

Termination Box Application


·Telecommunications subscriber loop
·Fiber to the home (FTTH)
·LAN/WAN
·CATV

Termination Box Specifications

Fiber Capacity of panel

12-144 core

Panel Connector

SC/LC/ST/FC

Type

Sliding Fixed

Dimension

19'' 1U/2U/3U/4U

Material

Cold Rolled Steel / Aluminum

Storage Temperature

-45ºC~+65ºC

LAN WAN 48 Ports Sliding Fixed Odf FTTH Termination Box
