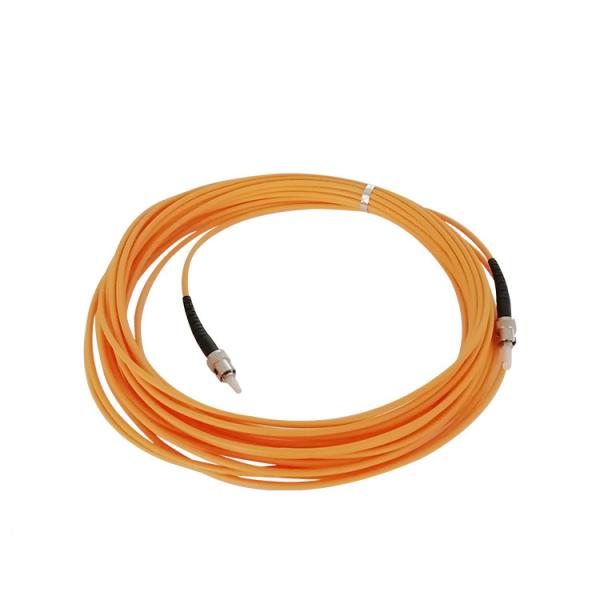

50dB Simplex Fiber Optic Patch Cord , St To St Single Mode Fiber Patch Cable
50dB Simplex Fiber Optic Patch Cord , St To St Single Mode Fiber Patch Cable
Specifications
Brand Name :
SUNET/OEM
Model Number :
SNT-PC
Certification :
ISO9001
Place of Origin :
Qingdao China
MOQ :
1 PCS
Price :
USD 0.5-2/PCS
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
500000 pcs per month
Delivery Time :
5-8 work days
Packaging Details :
Carton
Product name :
Fiber Optic Patch Cord
Application :
FTTH FTTB FTTX Network
Length :
1m 2m 3m or Customized
Material :
PVC,LSZH
Connector :
ST
Insertion loss :
≤0.3dB
Return loss :
≥55dB
Color :
Orange or others
Description

Simplex St-St Connector Fiber Optic Patch Cord

Patch Cord Description

Simplex St-St Connector Fiber Optic Patch Cord is widely used in optical communication industry. Optical Fiber Patch cord are ultra reliable components featuring low insertion loss and return loss. They come with your choice of simplex or duplex cable configuration. Extensive range of fiber patch cables are terminated with state-of-the-art connectors and available in any combination of ST, SC, LC and MTRJ with PC, UPC or APC polish types to meet your standard or custom configurations.

Patch Cord Features

1.Good durability
2.Good exchangeability
3.High temperature stability
4.Low insertion loss and back reflection loss

Patch Cord Applications

1.Optical Distribution Frame
2.Computer Networks
3.Fiber Optic Communication Systems
4.Optical Access Networks
5.Local Area Network
6.Fiber Optic Sensors

Patch Cord Order Information

Cable Material: PVC, LSZH (LSOH), OFNR
Cable Diameter: 3.0mm, 2.0mm, 0.9mm, 3.0*2.0mm, 5.0*2.0mm..
Fiber Type: SM 9/125um, MM 50/125um, MM 62.5/125um, 10G OM3(50/125um)
Polishing: PC, UPC, APC.
Length: 0.2m, 0.3m,.... 100m

Patch Cord Parameters

Single mode (9/125)
Max Insertion Loss: 0.3dB
Minimum Return Loss: PC: 50dB APC: 60dB

Patch Cord Technical specifications

Parameters

Standard Fiber Cable Assemblies

Fiber Type

SM(G.652/G.657)

MM(OM1/OM2/OM3/OM4/OM5)

Jacket Materials

LSZH/OFNR/PVC

Connector Type

FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP

Testing Wavelengths

1310±30/1550±30nm

850±30/1300±30nm

Insertion Loss (dB)

≤0.25dB

≤0.3dB

TIA/EIA-455-107

(PC/UPC/APC)

(PC/UPC)

Return Loss (dB)

≥50dB(PC/UPC)

≥40dB(PC/UPC)

TIA/EIA-455-107

≥60dB(APC)

Exchange-ability

≤0.2dB

Operating Temperature (ºC)

-10 ~ +70

Storage Temperature (ºC)

-40 ~ +85

Package

1 pieces/bag

50dB Simplex Fiber Optic Patch Cord , St To St Single Mode Fiber Patch Cable
