Access Network G657A1 12 Strand Single Mode Fiber Optic Cable
Access Network G657A1 12 Strand Single Mode Fiber Optic Cable
Access Network G657A1 12 Strand Single Mode Fiber Optic Cable
Access Network G657A1 12 Strand Single Mode Fiber Optic Cable
Specifications
Brand Name :
Sunet / OEM
Model Number :
SC APC
Certification :
ISO9001 / ISO14001
Place of Origin :
Qingdao , China
MOQ :
1 pc
Price :
USD 0.2-1 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000000 PCS / Month
Delivery Time :
5 - 8 Workdays
Packaging Details :
Blister box packing
Fiber Type :
G652D / G657A1 / G657A2 / Customized
Connector Type :
SC / APC
Insertion Loss :
≤ 0.3 dB
Jacket material :
PVC / LSZH
Color :
White / Blue / Yellow / orange /Aqua / Customized
Fiber Count :
Simplex
Application :
FTTH FTTB FTTX Network
Length :
1m 2m 3m
Description

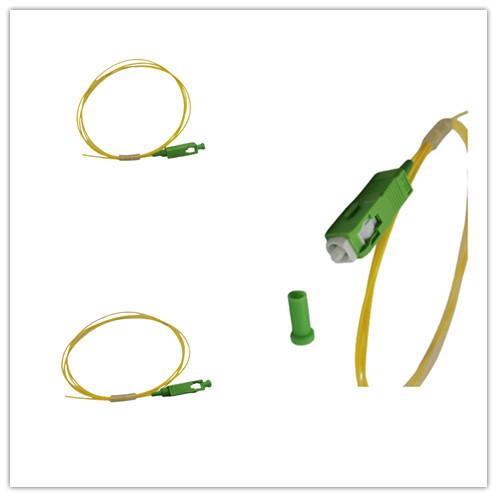

SC APC Single Mode 0.9mm G657A1 Yellow Color Fiber Optic Pigtail

Pigtail Description

Fiber optic pigtails are typically used to link the fiber optic cable with fiber optic equipment. The connector side of the pigtail is used to link the equipment, while the other side is fusion spliced together with the fiber cable. By splicing together, the fiber glasses, it can reach a minimum insertion loss.
Single-mode fiber uses to transmit over longer distances. It is a single glass fiber strand used to transmit a single ray of light. Single-mode fiber features only one transmission mode. Compared with multi-mode fiber, it can carry higher bandwidths; however, it needs to have a light source having a narrow spectral width

Pigtail Feature:

Price-Competitive

Low Insertion Loss & PDL

Factory-terminated and Tested

Fiber Options:G.652/G.657/OM1/OM2/OM3 and PM Panda Fiber

Connector Options :FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP

Polishing Options:PC/UPC/APC

Feature Connector with Ceramic Ferrules

Pigtail Applications

1. Access Network

2. Telecom/CATV Systems

3. FTTx

Pigtail Specifications

Parameters

Standard Fiber Cable Assemblies

Fiber Type

SM(G.652/G.657)

MM(OM1/OM2/OM3/OM4/OM5)

Jacket Materials

LSZH/OFNR/PVC

Connector Type

FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP

Ferrule Materials

Ceramic

Testing Wavelengths

1310±30/1550±30nm

850±30/1300±30nm

Insertion Loss (dB)

≤0.25dB

≤0.3dB

TIA/EIA-455-107

(PC/UPC/APC)

(PC/UPC)

Return Loss (dB)

≥50dB(PC/UPC)

≥40dB(PC/UPC)

TIA/EIA-455-107

≥60dB(APC)

Exchange-ability

≤0.2dB

Cable Assemblies

Pigtail/Simplex/Duplex/Fan-out Patch cord

Operating Temperature (ºC)

-10 ~ +70

Storage Temperature (ºC)

-40 ~ +85

Package

1 pieces/bag

All values specified are with connectors
