Specifications
Brand Name :
Sunet/OEM
Model Number :
SUNET-14
Certification :
RoHS, RoHS
Place of Origin :
Shandong, China
MOQ :
1 piece
Price :
USD 32-33 per km
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20000 per month
Delivery Time :
5-8 days
Packaging Details :
box+ carton
Function :
Fiber Splicing
Warranty Time :
18Months
Fiber type :
G657A1/A2/G652D/G657A1/G657A2
Type :
Drop Cable
Length :
1km or 2km
Jacket material :
LSZH,PVC/LSZH,PVC
Description

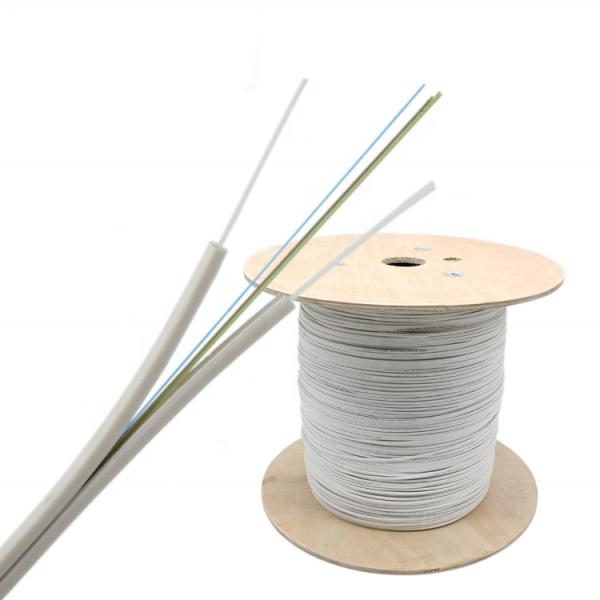

2 Cores Single-Mode With 2 Parallel FRP FTTH GJXFH Drop Cable Fiber Optic Cable

Describtion

The 250μm fiber is positioned in the central of 2 fiber reinforced plastics(FRP) which are placed at the two sides. Then, the
cable is completed with a LSZH sheath. The following is the price of different fiber cores of Single-mode GJXFH. If you want
multimode, please contact us.

We can do FiberType: G.652, G.655 or G.657 single-mode fiber, A1a orA1b, OM3 or OM4 multi-mode fiber, or other types of fiber.

Feature

1) Special low-ben-sensitivity fiber provides high bandwidth and excellent communication transmission property.

2). Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.

3). Simple structure, light weight and high practicability

4). Novel flute design easily strip and splice, simplify the installation and maintenance.

5) Low smoke, zero halogen and flame retardant sheath

Application

♦ Active dvice termination
♦ Telecommunication networks

♦ CATV links

♦ Data Communication

♦ Test Equipment

♦ Wide Area Networks(WANs)

Specification

Cable type
GJXFH-1,2,4B6.A2
Cable Dimension
3.0mm x 2.0mm
Fiber type
9/125 (G.657A2)
Fiber Counts
1
2
4
Tight buffer color
Nature
Nature,Blue
Nature,Blue,Orange,Green
Sheath material
LSZH
Sheath Color
White or Black
Cable weight
7.5Kg/Km
Min. bending radius
10mm (Static) 25mm (Dynamic)
Attenuation dB/km
≦ 0.336 at 1310nm, ≦ 0.198 at 1550nm
Short term tensile
80N
Crush resistance
500N/100mm
Operation temperature ℃
-20~+70
Single Mode FRP FTTH GJXFH Drop Cable Fiber Optic Cable 2 Cores With 2 ParallelSingle Mode FRP FTTH GJXFH Drop Cable Fiber Optic Cable 2 Cores With 2 ParallelSingle Mode FRP FTTH GJXFH Drop Cable Fiber Optic Cable 2 Cores With 2 ParallelSingle Mode FRP FTTH GJXFH Drop Cable Fiber Optic Cable 2 Cores With 2 Parallel
