Specifications
Brand Name :
Hioso
Model Number :
Foway2209TF
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
3000pcs/month
Delivery Time :
2-6 work days
Packaging Details :
38X24X18 CM
Product Name :
9 ports switch
Mac address :
2K MAC learning
Storage :
-40~80℃
Working :
-10~60℃
Support :
VLAN
Consumption :
5W
Description

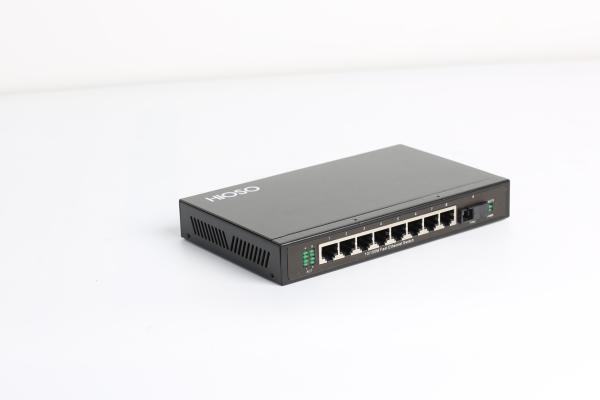

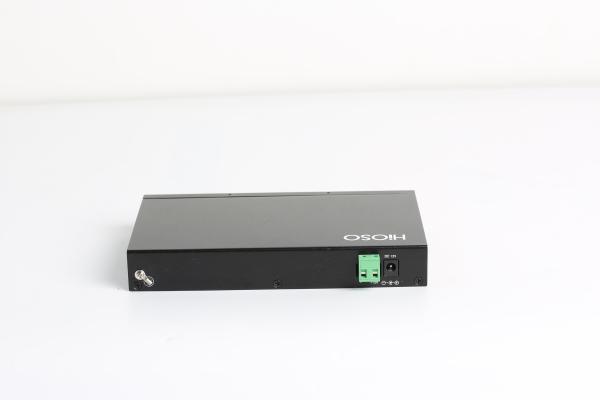

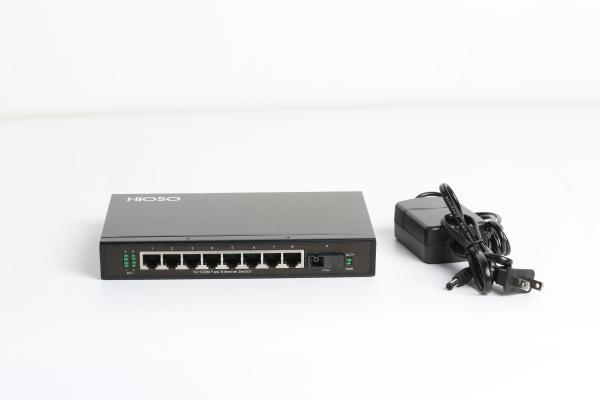

9 Ports Industrial Ethernet Access Switch 8FE Ports + 1 100M FX Port

Overview

HiOSO Foway2209TF series 9 ports 100M Security Industrial Ethernet Switches, supply 8 10/100M RJ45 ports and 1 100M FX uplink port; support to choose web or SNMP management; support to transmit HD video flow; apply to Security system, electronic power system and traffic system requirements.

Character

  • Support 8 10/100M RJ45 ports and 1 100M FX uplink port
  • Support each port full rate, full-duplex non-blocking forwarding
  • Support 2K MAC learning, 1Mbit storage and forward cache space,2G back plane bandwidth
  • Each RJ45 port adopts anti-high voltage circuit, strengthen the lightning protection and anti-interference ability

Technical Specification

Parameter Specification
Wavelength 850nm/1310nm/1490nm/1550nm
Transmission distance

100M fiber:multi-mode: 2km; Single-mode:25/40/60/80/100/120Km;

Single-fiber single-mode:25/40/60/80/100/120Km;

CAT5: 100M
Ports

8 10/100M RJ45 ports: 10/100Mbs

1 100M FX uplink port: 100Mbps SC/FC/ST fiber port
MAC 2K
Buffer memory space 1Mbit
Bit error rate <1/1000000000
MTBF 100000 hours
Power DC12V/1A dual input redundant backup
Power consumption 5W
Installation Wall mounting type
Dimension 30mm (H)×219mm(W)×119mm (D)

Order information

No Type NMS Ports
1 Foway2209TF NO 8 10/100M RJ45 ports + 1 100M FX uplink
2 Foway2209TFM YES 810/100M RJ45 ports + 1 100M FX uplink
