4 10/100M RJ45 Ports Ethernet Access Switch
4 10/100M RJ45 Ports Ethernet Access Switch
4 10/100M RJ45 Ports Ethernet Access Switch
4 10/100M RJ45 Ports Ethernet Access Switch
4 10/100M RJ45 Ports Ethernet Access Switch
4 10/100M RJ45 Ports Ethernet Access Switch
4 10/100M RJ45 Ports Ethernet Access Switch
4 10/100M RJ45 Ports Ethernet Access Switch
Specifications
Brand Name :
Hioso
Model Number :
FOWAY1205T
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
Negotiable
Payment Terms :
D/A, T/T, Western Union
Supply Ability :
4000pcs/month
Delivery Time :
3-10 working days
Packaging Details :
30X25X15 CM
Item :
Ethernet Switch
Distance :
Cat5:100m
MAC :
2K
Ports :
5 ports
MTBF :
100000 hours
Bit error rate :
<1/1000000000
Description

Ethernet Access Switch 4 100M TP + 1 100M TP Uplink Ports 5 Ports Switch

Overview

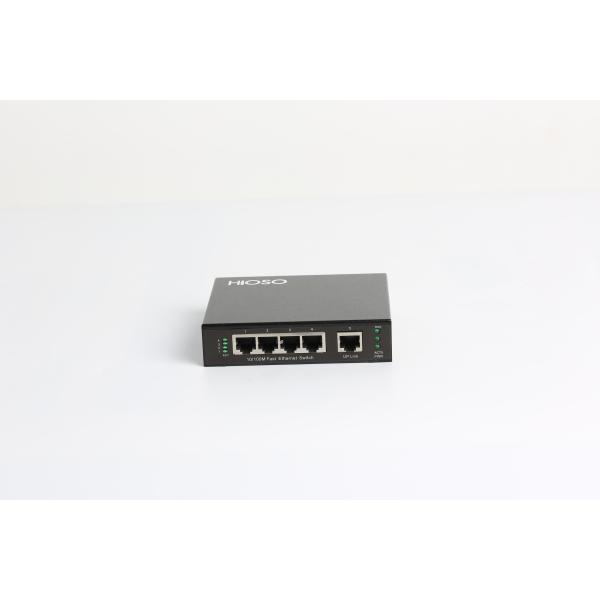

HiOSO FOWAY1205T is our five port Ethernet switch with 4 10/100M RJ45 Ethernet ports and 1 10/100M RJ45

uplink port. It can be either Managed or non managed through web/SNMP (optional). FOWAY1205T is widely

used in transmitting HD videos with strict requirements in security, power and traffic system.

Character

  • 4 10/100M RJ45 ports and 1 10/100M RJ45 uplink port
  • Full 100M rate, full-duplex non-blocking forwarding on every port
  • 2K MAC learning, 1Mbit storage of forward cache space, 2G back plane bandwidth
  • (Optional) Anti-high voltage with lightning protection and anti-interference ability on each RJ45 port

Technical Specification

Parameter Specification
Standard IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX Fast Ethernet, IEEE802.1d Spanning Tree Protocol,IEEE802.1w Rapid STP, IEEE802.1s Multiple STP,IEEE802.1q Vlan,IEEE802.1p QoS, IEEE802.3ad Trunk,IEEE802.3X Flow Control
Distance Cat5:100m
Port

4 100M RJ45 ports : 10/100Mbps

1 10/100M RJ45 uplink
MAC 2K
Buffer memory space 1Mbit
Bit error rate <1/1000000000
MTBF 100000 hours
Power DC12V/1A
Power consumption 2.5W
Working temperature -10~60℃
Storage temperature -40~80℃
Humidity 5%~90% non-condensing
Dimension 28mm (H)×120mm(W)×106mm (D)

Order information

No Product code NMS Ports Power
1 FOWAY1205T NO 5 10/100M RJ45 ports External power DC12V
2 FOWAY1205TM WEB 5 10/100M RJ45 ports External power DC12V
3 FOWAY1205TM-SI WEB/SNMP 5 10/100M RJ45 ports External power DC12V
