HiOSO 16 10/100M RJ45 Ports 2 GE Combo Uplink Ports Ethernet Access Switch 18 Ports
HiOSO 16 10/100M RJ45 Ports 2 GE Combo Uplink Ports Ethernet Access Switch 18 Ports
HiOSO 16 10/100M RJ45 Ports 2 GE Combo Uplink Ports Ethernet Access Switch 18 Ports
HiOSO 16 10/100M RJ45 Ports 2 GE Combo Uplink Ports Ethernet Access Switch 18 Ports
HiOSO 16 10/100M RJ45 Ports 2 GE Combo Uplink Ports Ethernet Access Switch 18 Ports
HiOSO 16 10/100M RJ45 Ports 2 GE Combo Uplink Ports Ethernet Access Switch 18 Ports
HiOSO 16 10/100M RJ45 Ports 2 GE Combo Uplink Ports Ethernet Access Switch 18 Ports
HiOSO 16 10/100M RJ45 Ports 2 GE Combo Uplink Ports Ethernet Access Switch 18 Ports
Specifications
Brand Name :
Hioso
Model Number :
Foway3000-18TFCM
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, D/P, Western Union, L/C
Supply Ability :
2000pcs/month
Delivery Time :
3-11 working days
Packaging Details :
54X32X18 cm
Product Name :
Ethernet switch
Function :
Support VLAN
Management :
Support CLI,WEB
Distance :
CAT5: 100M
Rj45 Ports :
18 ports
Uplink Ports :
2 ports
Description

18 Ports Ethernet Access Switch 16 10 / 100M RJ45 Ports + 2 Combo Uplink Ports

Overview

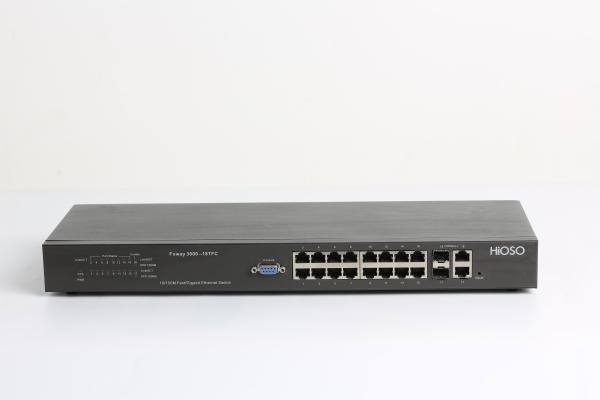

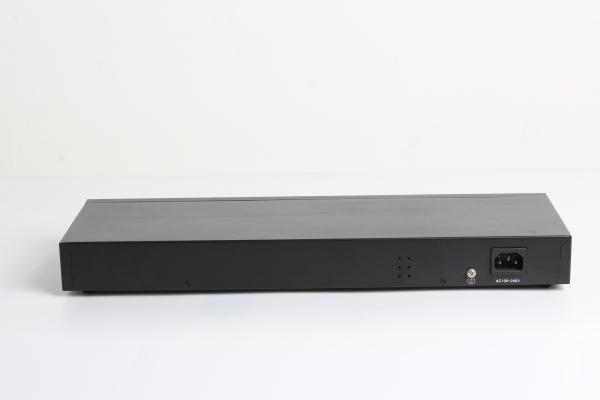

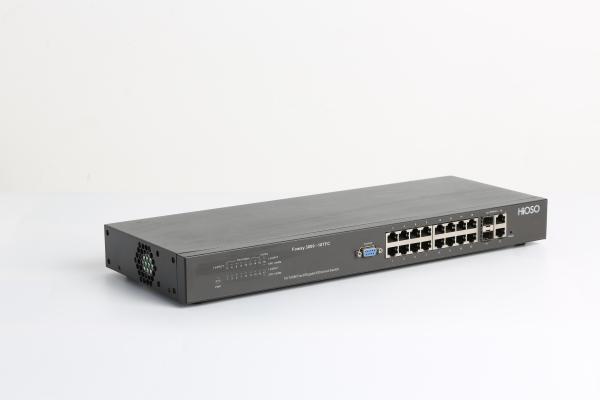

HiOSO Foway3000-18TFCM is a 18 ports 100M/1000M Enterprise Ethernet switch, with 16 10/100M RJ45 ports and 2 Combo uplink ports (100M/1000M SFP optional+100/1000M RJ45 port). Uplink SFP ports support hot swapping, support to work with fiber switch, fiber converters and other deivces with fiber port. It applies to Enterprise network, campus network, HD security monitoring network, Telecom broadband network, power grids and transportation network , etc.

Character

  • Support 16 10/100M RJ45 ports and 2 Gigabit Combo ports
  • Support SFP hot swapping
  • Support Support each port full rate, full-duplex non-blocking forwarding
  • Support CLI,WEB management and SNMP v1/v2/v3
  • Support VLAN,STP/RSTP/MSTP, support Trunk port aggregation, IGMPm port Mirroring, port isolation, broadcast storm control, loop detection, bandwidth control, QinQ, etc.
  • Support LLDP, DHCP, PPPoE, ACL
  • Support RSR ( Rapid Super Ring)(optional),failover time less than 20ms
  • Support 8k MAC,2Mbit storage and forward cache space,15.2Gback plane bandwidth
  • 1U chassis, no fan , apply for mute needs, sand and wind environment

Technical Specification

Parameter Specification
Standard IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.3ab 1000Base-T,IEEE802.3z 1000Base-SX/LX Gigabit Ethernet,IEEE802.1d Spanning Tree Protocol, IEEE802.1w Rapid STP,IEEE802.1s Multiple STP,IEEE802.1q Vlan,IEEE802.1p QoS,IEEE802.3ad Trunk,IEEE802.3X Flow Control
Wavelength SFP: 850nm/1310nm/1490nm/1550nm
Distance

1000M SFP:multi-mode: 220m (fiber size 62.5/125μm)/550m (fiber size 50/125μm)

Single-mode:10/20/40/60/80/100/120Km;

Single-fiber single-mode:10/20/40/60/80/100/120Km; CAT5: 100M
Port

16 100M RJ45 ports: 10/100M

2 100/1000M SFP/TP (Combo) uplink
MAC 8K
Buffer memory space 2Mbit
Bit error rate <1/1000000000
MTBF 100000 hours
Power supply AC110V/220V
Power consumption 8 W
Working temperature -10~60℃
Storage temperature -40~80℃
Humidity 5%~90% non-condensing
Installation 1U chassis wall mounting
Dimension 44mm (H)×440mm(W)×160mm (D)

Order information

Type Product code NMS Ports
1 FOWAY3000-18TFC NO 16 10/100M RJ45 + 2 Combo
2 FOWAY3000-18TFCM Web 16 10/100M RJ45 + 2 Combo
3 FOWAY3000-18TFCM-SI Standard SNMP 16 10/100M RJ45 + 2 Combo
4 FOWAY3000-18TFCM-EI Enhanced SNMP 16 10/100M RJ45 + 2 Combo
Specification Datasheet Download:FOWAY3000-18TFCM.pdf
