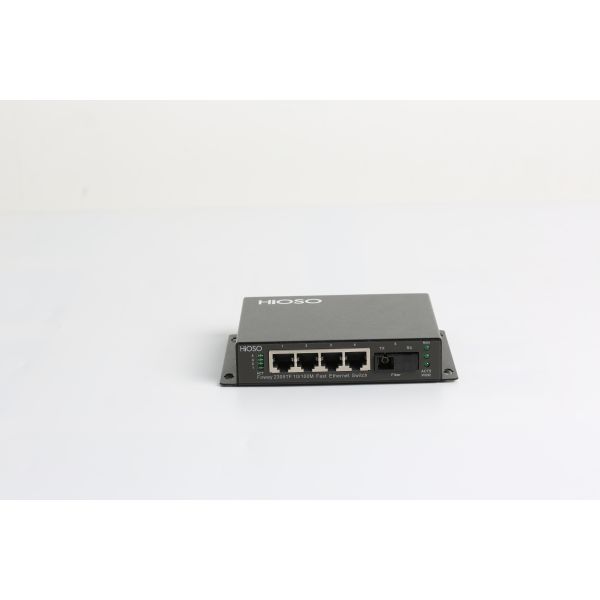

HiOSO DC12V Ethernet Access Switch , 5 Port Industrial Ethernet Switch
HiOSO DC12V Ethernet Access Switch , 5 Port Industrial Ethernet Switch
HiOSO DC12V Ethernet Access Switch , 5 Port Industrial Ethernet Switch
HiOSO DC12V Ethernet Access Switch , 5 Port Industrial Ethernet Switch
HiOSO DC12V Ethernet Access Switch , 5 Port Industrial Ethernet Switch
HiOSO DC12V Ethernet Access Switch , 5 Port Industrial Ethernet Switch
Specifications
Brand Name :
Hioso
Model Number :
Foway2305TF
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
2000pcs/month
Delivery Time :
3-10 work days
Packaging Details :
38X24X18 CM
Product Name :
5 Ports Switch
Support :
8K MAC learning
Distance :
CAT5: 100M
MTBF :
100000 hours
Consumption :
3.6 W
Power :
DC12V
Description

Industrial Ethernet Access Switch 4 100M RJ45 Ports + 1 1000M FX Uplink Port

Overview

HiOSO Foway2305TF series 5 ports 100M Security Industrial Ethernet Switches, supply 4 10/100M RJ45 ports and 1 1000M FX uplink port; support to choose web or SNMP management; support to transmit HD video flow; apply to Security system, electronic power system and traffic system requirements.

Character

  • Support 4 10/100M RJ45 ports and 1 1000M FX uplink port
  • Support each port full rate, full-duplex non-blocking forwarding
  • Support WEB management and SNMP (optional)
  • Support 8K MAC learning, 1Mbit storage and forward cache space
  • Each RJ45 port adopts anti-high voltage circuit, strengthen the lightning protection and anti-interference ability
  • Supply redundant dual power input ports, enhance reliability
  • Metal casing with Wall mounting design, external power , better for heat dissipating and installation

Technical Specification

Parameter Specification
Transmission distance

1000M fiber:multi-mode: 220m (fiber size 62.5/125μm)/550m (fiber size 50/125μm)

Single-mode:10/20/40/60/80/100/120Km;

Single-fiber single-mode:10/20/40/60/80/100/120Km; CAT5: 100M
Ports

4 10/100M RJ45 ports: 10/100Mbs

1 1000M FX uplink port: 1000Mbps SC/FC/ST fiber port
MAC 8K
Buffer memory space 1Mbit
Bit error rate <1/1000000000
MTBF 100000 hours
Power DC12V/1A dual input redundant backup
Power consumption 3.6W

Order information

No Type NMS Ports
1 Foway2305TF NO 4 10/100M RJ45 ports + 1 1000M FX uplink
2 Foway2305TFM YES 4 10/100M RJ45 ports + 1 1000M FX uplink

HiOSO DC12V Ethernet Access Switch , 5 Port Industrial Ethernet Switch

HiOSO DC12V Ethernet Access Switch , 5 Port Industrial Ethernet Switch
