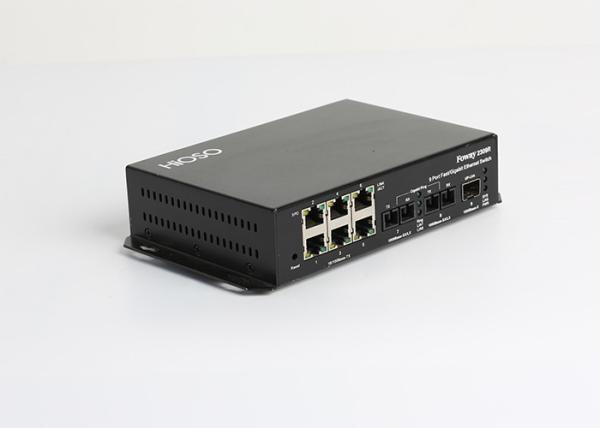

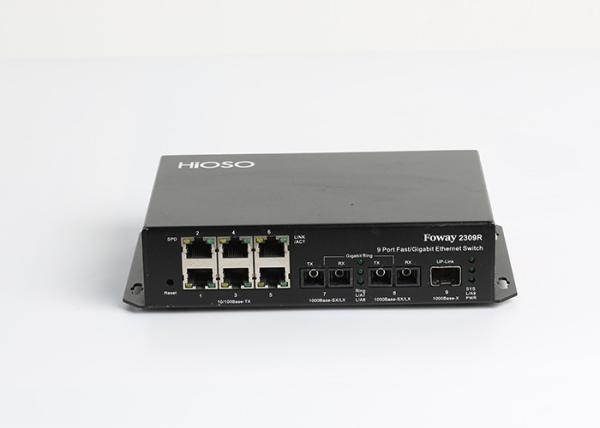

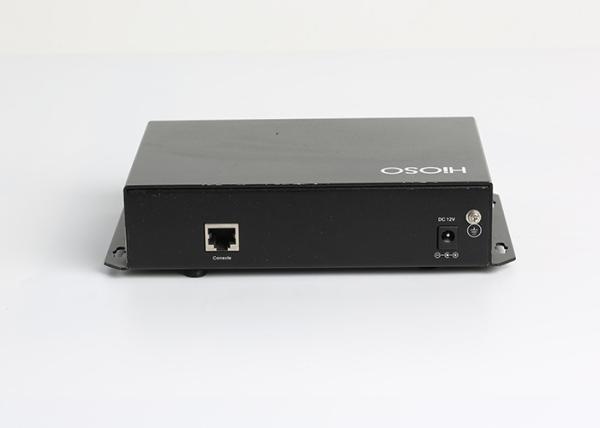

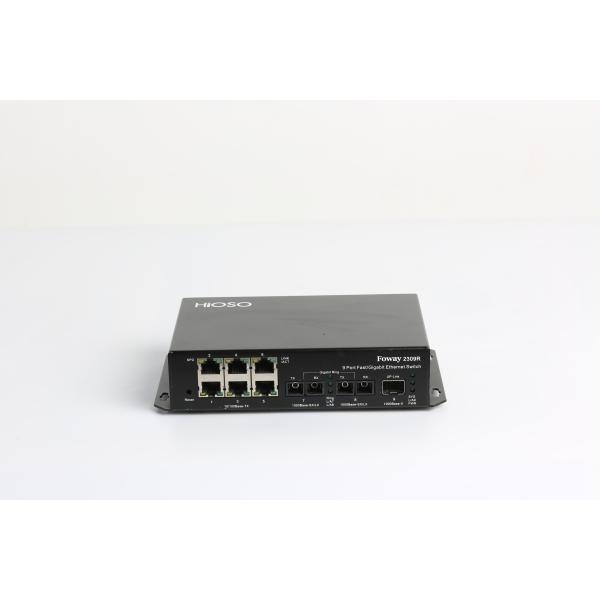

6FE 2 1000M FX 1 1000M SFP Ports Ethernet Access Switch 9 Ports
6FE 2 1000M FX 1 1000M SFP Ports Ethernet Access Switch 9 Ports
6FE 2 1000M FX 1 1000M SFP Ports Ethernet Access Switch 9 Ports
6FE 2 1000M FX 1 1000M SFP Ports Ethernet Access Switch 9 Ports
6FE 2 1000M FX 1 1000M SFP Ports Ethernet Access Switch 9 Ports
6FE 2 1000M FX 1 1000M SFP Ports Ethernet Access Switch 9 Ports
6FE 2 1000M FX 1 1000M SFP Ports Ethernet Access Switch 9 Ports
6FE 2 1000M FX 1 1000M SFP Ports Ethernet Access Switch 9 Ports
Specifications
Brand Name :
Hioso
Model Number :
Foway2309R
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, T/T
Supply Ability :
6000pcs/month
Delivery Time :
3-10 working days
Packaging Details :
30X25X15 CM
Item :
9 ports switch
Wavelength :
850nm/1310nm/1490nm/1550nm
MAC :
8K
Power :
DC12V/2A
MTBF :
100000 hours
Bit error rate :
<1/1000000000
Description

Ethernet Switch 6FE + 2 1000M FX + 1 1000M SFP Ports 9 Ports Switch

Overview

HiOSO FOWAY2309R/2309FTS series 9 ports 100M/1000M Security Industrial Ethernet switch,supply 6 100M RJ45 ports,

2 1000M fiber ports and 1 1000M SFP uplink port (support 1000M SFP module and 1000M RJ45 electric module); support HD

video flow transmission; support to establish redundant back bone ring type network; apply to security system, electric power

system, and traffic system requirements.

Technical Specification

Parameter Specification
Standard IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.3ab 10000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS, IEEE802.1d Spanning Tree, IEEE802.12 RSTP
Wavelength 850nm/1310nm/1490nm/1550nm
Transmission distance

1000M fiber:multi-mode: 220m (fiber size 62.5/125μm)/550m (fiber size 50/125μm)

Single-mode:10/20/40/60/80/100/120Km;

Single-fiber single-mode:10/20/40/60/80/100/120Km; CAT5: 100M
Ports

6 10/100M RJ45 ports: 10/100Mbs; 2 1000M FX fiber ports:1Gbps, SC/FC

1 1000M SFP port: 1Gbps, support 1000Base-SX/LX or 1000Base-T SFP
MAC 8K
Buffer memory space 1Mbit
Bit error rate <1/1000000000
MTBF 100000 hours
Power DC12V/2A
Power consumption 8W
Working temperature Common:-10~60℃; -T (wide temperature range):-40~75℃
Storage temperature -40~80℃
Humidity 5%~90% non-condensing
Installation Wall mounting type
Dimension 42mm (H)×195mm(W)×116mm (D)

Order informatio

No Type NMS Ports
1 Foway2309FTS NO 6 10/100M RJ45 ports + 2 1000M FX +1 1000M SFP uplink
2 Foway2309FTSM YES 6 10/100M RJ45 ports + 2 1000M FX +1 1000M SFP uplink
3 FOWAY2309R YES 6 10/100M RJ45 ports + 2 1000M fiber ring FX ports +1 1000M SFP
