CCC Approval 2 Port WEB SNMP CLI FTTH OLT Supply Huawei ZTE ONU
CCC Approval 2 Port WEB SNMP CLI FTTH OLT Supply Huawei ZTE ONU
CCC Approval 2 Port WEB SNMP CLI FTTH OLT Supply Huawei ZTE ONU
CCC Approval 2 Port WEB SNMP CLI FTTH OLT Supply Huawei ZTE ONU
CCC Approval 2 Port WEB SNMP CLI FTTH OLT Supply Huawei ZTE ONU
CCC Approval 2 Port WEB SNMP CLI FTTH OLT Supply Huawei ZTE ONU
CCC Approval 2 Port WEB SNMP CLI FTTH OLT Supply Huawei ZTE ONU
CCC Approval 2 Port WEB SNMP CLI FTTH OLT Supply Huawei ZTE ONU
Specifications
Place of Origin :
China, Guang dong
Brand Name :
Hioso
Model Number :
HA7302CS
MOQ :
1
Price :
Negotiable
Certification :
CE, RoHS, CCC
Payment Terms :
L/C, T/T
Supply Ability :
6000pcs/month
Delivery Time :
3-11 working days
Packaging Details :
38X24X18 CM
Name :
EPON OLT
Management :
WEB/SNMP/CLI
Material :
metal
Colour :
black
Port :
2 SC/PC G-EPON +2 Combo
Type :
pizza box type, support 1U
Description

Epon Olt 2 Port Supply Huawei Zte Onu Mini 2pon Ftth Olt Fiber Optic Equipment

Overview

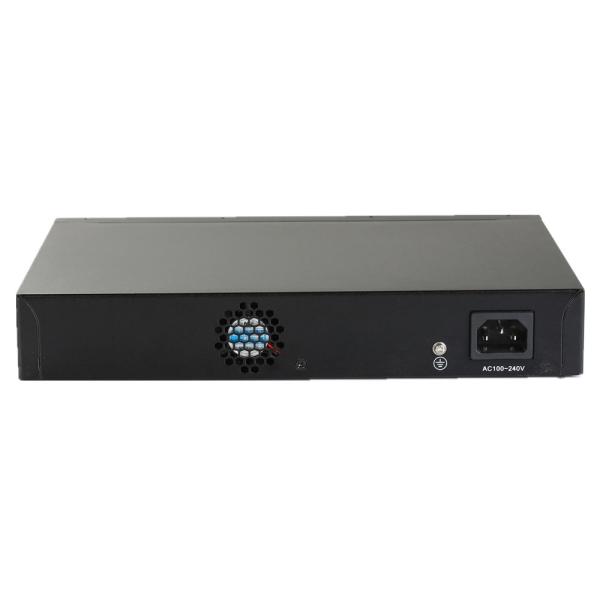

HA7302CS is a standalone 2-PON OLT,working with HA7200 series ONU and ODN, to establish a passive optic network. It supports 2-PON, 64 ONUs access. It supports 10～20km transmission distance at the base of high bandwidth, full line speed L2/L3 transition capacity. It supports SNMP management

Technical Specification

Parameter Specifications
Operating wavelength 1310(RX)/1490(TX)
Optical power +0 ~ +7dBm
Receiving sensitivity -27dBm
Max distance 20km
Max splitter ratio 1:32
Capacity 2 PON, standard: 64 ONUs maximum:128 ONUs
MAC 8K
Uplink port 2 10/100/1000 Ethernet RJ45 ports / 2 Gigabit SFP ports optional
Protocols supported Support IEEE802.3, IEEE802.3u, IEEE802.3ab
Support IEEE802.1Q VLAN
Support IEEE 802.1P QoS
Management CLI and GUI, SNMP, WEB
Support DHCP Snooping
Support Ipv4 address learning based at DHCP Snooping
Support ARP Snooping, QoS etc

CCC Approval 2 Port WEB SNMP CLI FTTH OLT Supply Huawei ZTE ONU
