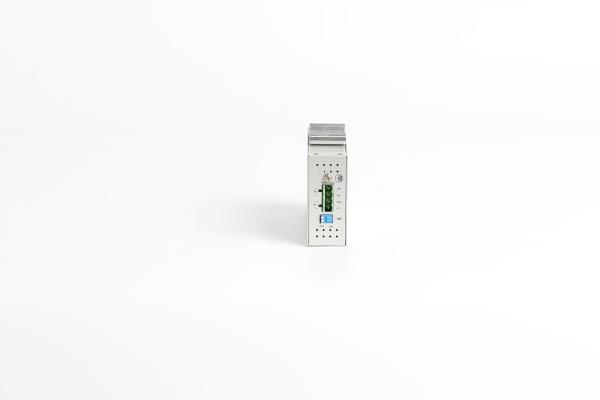

IP30 Metal Case 5 Ports 10/100M Panel Mount Ethernet Switch 3W
IP30 Metal Case 5 Ports 10/100M Panel Mount Ethernet Switch 3W
IP30 Metal Case 5 Ports 10/100M Panel Mount Ethernet Switch 3W
IP30 Metal Case 5 Ports 10/100M Panel Mount Ethernet Switch 3W
IP30 Metal Case 5 Ports 10/100M Panel Mount Ethernet Switch 3W
IP30 Metal Case 5 Ports 10/100M Panel Mount Ethernet Switch 3W
IP30 Metal Case 5 Ports 10/100M Panel Mount Ethernet Switch 3W
IP30 Metal Case 5 Ports 10/100M Panel Mount Ethernet Switch 3W
IP30 Metal Case 5 Ports 10/100M Panel Mount Ethernet Switch 3W
IP30 Metal Case 5 Ports 10/100M Panel Mount Ethernet Switch 3W
Specifications
Brand Name :
Hioso
Model Number :
Foway4205T
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
Negotiable
Payment Terms :
TT
Supply Ability :
5000pcs/month
Delivery Time :
2-12 working days
Packaging Details :
25*15*10 cm
Name :
Din Rail Switch
Ports :
5 10/100M rj45 ports
Transmisson rate :
100Mbps
MAC address :
8K
Black casing :
metal
Consumption :
3W
Description

5 Ports 10 / 100M Din Rail Ethernet Switch Support High Temperature

Character

l 10 / 100M adaptive RJ45 ports, support MDI and MDI-X auto recognition

l Provide 2 RPS (Redundant power supply) input : 10~ 60 VDC and 18 ~ 30VAC,with reverse connection

l Support maximum 1552 byte long frame data packet transmission

l DIP switch supports to enabled/disable broadcast storm function

l Each RJ45 port adopts anti-high voltage circuit, strengthen the lightning protection and anti-interference ability

l With IP30 metal case; support din rail or wall mounting installation

Parameter Specification
Access mode 10/100Mbps
Standard IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet,IEEE802.1d Spanning Tree Protocol ,IEEE802.1w Rapid STP,IEEE802.1s Multiple STP,IEEE802.1q vlan,IEEE802.1p Qos,,IEEE802.3ad Trunk, IEEE 802.3x Flow Control
Transmission distance Category-5 twisted pairs: 100m
Port 5 10/100M RJ45 ports: Connected to STP/UTP category-5 twisted pairs
Conversion mode Medium conversion, storing and forwarding/straight-through
MAC address table 1K
Buffer space 1Mbit
Flow control Full duplex state: flow control; half-duplex state: back pressure mode
Delay 9.6us
Bit error rate <1/1000000000
MTBF 100,000 hours
LED 100M (twisted pair rate 100M), TP1/2/3/4/5 Link(twisted pair link/action); P1 (power supply P1 connected), P2(power supply P2 connected)
Power 12/24/48 VDC,18 ~ 30VAC input
Power consumption 3W
Operating temperature Normal:-10~60°C ;-T(wide temperature range): -40~75°C
Operating humidity 5%~90%
Storage temperature -40~85°C
Storage humidity 5%~95% (non-condensing)
Installation Din rail installation, wall mounting installation
Dimensions 115mm×30mm×70mm (height * width * depth)

IP30 Metal Case 5 Ports 10/100M Panel Mount Ethernet Switch 3W

IP30 Metal Case 5 Ports 10/100M Panel Mount Ethernet Switch 3W
