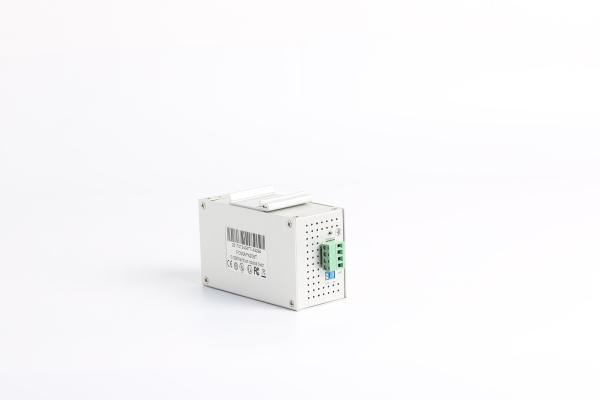

CCC Approval 8 10/100M RJ45 Ports Poe Switch Din Rail Mount
CCC Approval 8 10/100M RJ45 Ports Poe Switch Din Rail Mount
CCC Approval 8 10/100M RJ45 Ports Poe Switch Din Rail Mount
CCC Approval 8 10/100M RJ45 Ports Poe Switch Din Rail Mount
CCC Approval 8 10/100M RJ45 Ports Poe Switch Din Rail Mount
CCC Approval 8 10/100M RJ45 Ports Poe Switch Din Rail Mount
CCC Approval 8 10/100M RJ45 Ports Poe Switch Din Rail Mount
CCC Approval 8 10/100M RJ45 Ports Poe Switch Din Rail Mount
CCC Approval 8 10/100M RJ45 Ports Poe Switch Din Rail Mount
CCC Approval 8 10/100M RJ45 Ports Poe Switch Din Rail Mount
Specifications
Brand Name :
Hioso
Model Number :
Foway4208T
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
Negotiable
Payment Terms :
TT
Supply Ability :
5000pcs/month
Delivery Time :
2-12 working days
Packaging Details :
25*15*10 cm
Name :
Din Rail Switch
Ports :
8 FE ports
Transmisson rate :
100Mbps
MTBF :
100,000 hours
MAC :
4K
Delay :
9.6us
Description

8 Ports Din Rail Ethernet Switch Supply 8 10 / 100M RJ45 Ports

Overview

Foway 4208T series 8 ports Din Rail Type Industrial Ethernet switch , supply 8 10/100M RJ45 ports; provide 2 RPS (Redundant power supply) input : 10 ~ 60 VDC and 18 ~ 30VAC; support to connect DC power and AC power at the same time.

Foway 4208T series switches support to work under the -40 ~ 75°C , With IP30 environmental protection grade, suitable for most industrial applications. Foway 4205TF series supply DIP switch , support to enable or disable broadcast storm protection,provide another flexible solutions for different industrial applications.

Charater

  • 10 / 100M adaptive RJ45 ports, support MDI and MDI-X auto recognition
  • Provide 2 RPS (Redundant power supply) input : 10~ 60 VDC and 18 ~ 30VAC,with reverse connection
  • Support maximum 1552 byte long frame data packet transmission,1.8G back board bandwidth
  • Each RJ45 port adopts anti-high voltage circuit, strengthen the lightning protection and anti-interference ability

Parameter Specification
Access mode 10/100Mbps
Transmission distance Category-5 twisted pairs: 100m
Port 8 10/100M RJ45 ports: Connected to STP/UTP category-5 twisted pairs
Conversion mode Medium conversion, storing and forwarding/straight-through
MAC address table 4K
Buffer space 1Mbit
Flow control Full duplex state: flow control; half-duplex state: back pressure mode
Delay 9.6us
Bit error rate <1/1000000000
MTBF 100,000 hours
LED 100M (twisted pair rate 100M), TP1/2/3/4/5/6/7/8 Link(twisted pair link/action); P1 (power supply P1 connected), P2(power supply P2 connected)
Power 12/24/48 VDC,18 ~ 30VAC input
Power consumption 3W
Operating temperature Normal:-10~60°C ;-T(wide temperature range): -40~75°C
Installation Din rail installation, wall mounting installation
Dimensions 115mm×50mm×70mm (height * width * depth)

CCC Approval 8 10/100M RJ45 Ports Poe Switch Din Rail Mount

CCC Approval 8 10/100M RJ45 Ports Poe Switch Din Rail Mount
