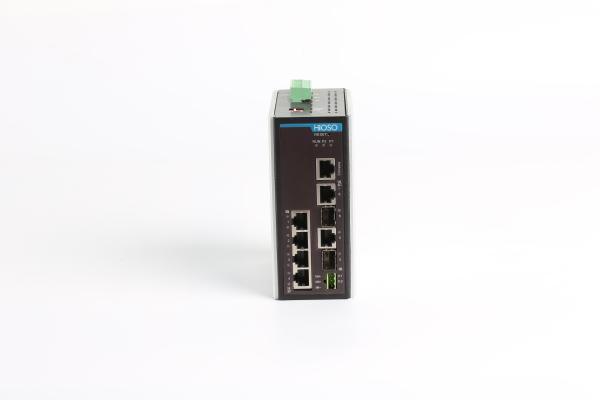

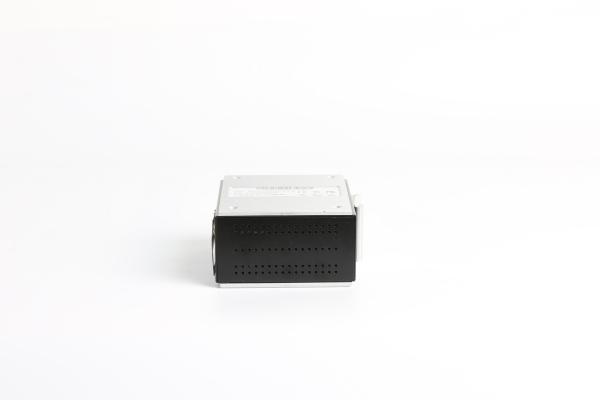

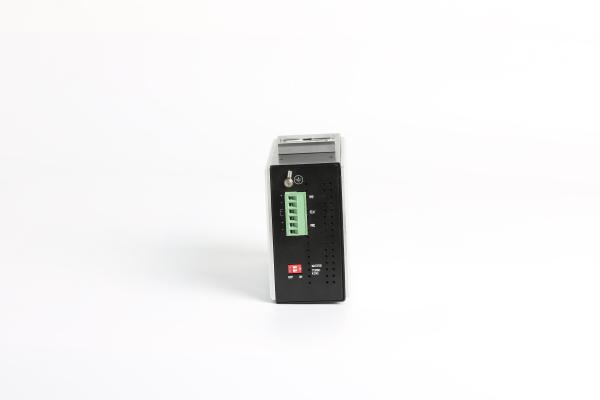

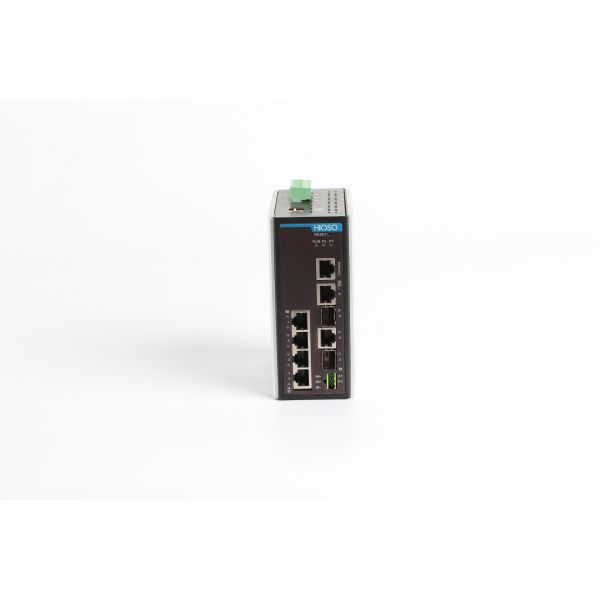

4 1000M Rj45 2 1000M Combo Ports Din Rail Mount Network Switch 6 Ports
4 1000M Rj45 2 1000M Combo Ports Din Rail Mount Network Switch 6 Ports
4 1000M Rj45 2 1000M Combo Ports Din Rail Mount Network Switch 6 Ports
4 1000M Rj45 2 1000M Combo Ports Din Rail Mount Network Switch 6 Ports
4 1000M Rj45 2 1000M Combo Ports Din Rail Mount Network Switch 6 Ports
4 1000M Rj45 2 1000M Combo Ports Din Rail Mount Network Switch 6 Ports
4 1000M Rj45 2 1000M Combo Ports Din Rail Mount Network Switch 6 Ports
4 1000M Rj45 2 1000M Combo Ports Din Rail Mount Network Switch 6 Ports
Specifications
Brand Name :
Hioso
Model Number :
Foway 4306TFC
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
Negotiable
Payment Terms :
TT
Supply Ability :
5000pcs/month
Delivery Time :
2-12 working days
Packaging Details :
38X24X18 CM
Item :
Din Rail Switch
Wavelength :
850~1550 nm
Mounting :
Din-rail/wall mounting
Distance :
CAT5 : 100m
Support :
DHCP, ACL
MTBF :
10000h
Description

6 Ports Din Rail Ethernet Switch 4 1000M Rj45 + 2 1000M Combo Ports

Character

  • 10 / 100M adaptive RJ45 ports, support MDI and MDI-X auto recognition
  • Support 100M/1000M SFP, maximum transmission distance 120km
  • Provide 2 input : 10~ 60 VDC, reverse connection protection
  • Support DHCP,PPPoE,ACL,LLDP, RSR,switch time less than 20ms
  • Support max 1632 byte long frame transmission,7.6G back board bandwidth
  • Mirroring, port mirroring, port isolation, broadcast storm suppression, loop detection, QinQ, bandwidth control, etc

Technical Specification

Parameter Specification
Access mode 10/100/1000Mbps
Standard IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
Wavelength 850nm/1310nm/1490nm/1550nm
Port

8 RJ45 ports: 10/100M

2 1000M Combo: 1Gbps, 100M/1000M SFP or 10/100/1000M Copper SFP
Conversion mode Medium conversion, storing and forwarding/straight-through
MAC address table 8K
Buffer space 1Mbit
Flow control Full duplex state: flow control; half-duplex state: back pressure mode
Delay 9.6us
Bit error rate <1/1000000000
MTBF 100,000 hours
LED P1 (power supply P1 connected) ,P2(power supply P2 connected),SYS (system)
Power 12/24/48 VDC,18 ~ 30VAC input
Power consumption 5W
Operating temperature Normal:-10~60°C ;-T(wide range temperature: -40~75°C
Dimensions 135mm×52mm×105mm (height * width * depth)


4 1000M Rj45 2 1000M Combo Ports Din Rail Mount Network Switch 6 Ports

4 1000M Rj45 2 1000M Combo Ports Din Rail Mount Network Switch 6 Ports
