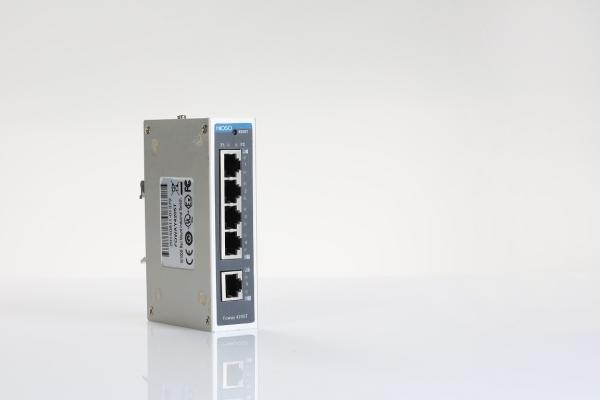

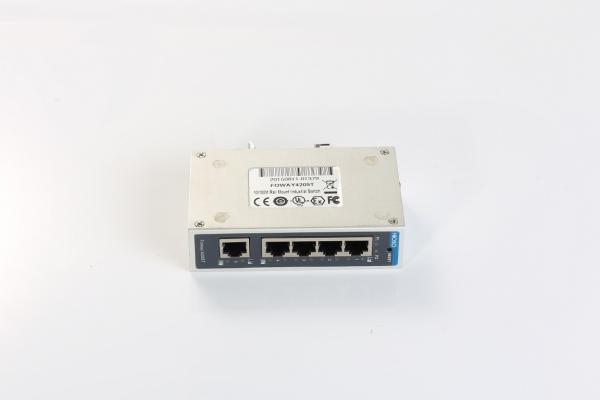

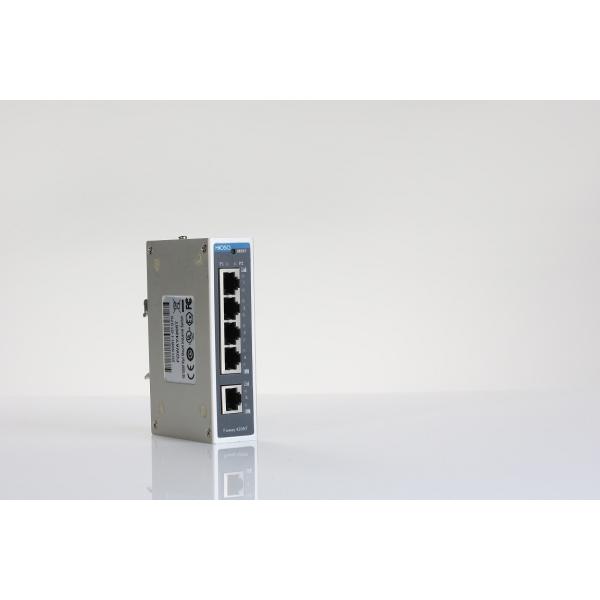

HiOSO 10/100M RJ45 5 Port Industrial Ethernet Switch Din Rail
HiOSO 10/100M RJ45 5 Port Industrial Ethernet Switch Din Rail
HiOSO 10/100M RJ45 5 Port Industrial Ethernet Switch Din Rail
HiOSO 10/100M RJ45 5 Port Industrial Ethernet Switch Din Rail
HiOSO 10/100M RJ45 5 Port Industrial Ethernet Switch Din Rail
HiOSO 10/100M RJ45 5 Port Industrial Ethernet Switch Din Rail
HiOSO 10/100M RJ45 5 Port Industrial Ethernet Switch Din Rail
HiOSO 10/100M RJ45 5 Port Industrial Ethernet Switch Din Rail
Specifications
Brand Name :
Hioso
Model Number :
FOWAY4205T
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000pcs/month
Delivery Time :
2-12working days
Product Name :
Din Rail Ethernet Switch
Port :
5 Ports
Delay :
9.6us
MTBF :
100,000 hours
Bit error rate :
<1/1000000000
Description

FOWAY4205T 5 10/100M RJ45 Din Rail Industrial Ethernet switch

Overview

Foway 4205T series 5 ports Din Rail Type Industrial Ethernet switch , supply 5 10/100M RJ45 ports; provide 2 RPS (Redundant power supply) input : 10 ~ 60 VDC and 18 ~ 30VAC; support to connect DC power and AC power at the same time.

Foway 4205T series switches support to work under the -40 ~ 75°C , With IP30 environmental protection grade, suitable for most industrial applications. Foway 4205TF series supply DIP switch , support to enable or disable broadcast storm protection,provide another flexible solutions for different industrial applications.

Character

l 10 / 100M adaptive RJ45 ports, support MDI and MDI-X auto recognition

l Provide 2 RPS (Redundant power supply) input : 10~ 60 VDC and 18 ~ 30VAC,with reverse connection

l Each RJ45 port adopts anti-high voltage circuit, strengthen the lightning protection and anti-interference ability

Technical Specification

Parameter Specification
Access mode 10/100Mbps
Standard IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet,IEEE802.1d Spanning Tree Protocol ,IEEE802.1w Rapid STP,IEEE802.1s Multiple STP,IEEE802.1q vlan,IEEE802.1p Qos,,IEEE802.3ad Trunk, IEEE 802.3x Flow Control
Transmission distance Category-5 twisted pairs: 100m
Port 5 10/100M RJ45 ports: Connected to STP/UTP category-5 twisted pairs
Conversion mode Medium conversion, storing and forwarding/straight-through
MAC address table 1K
Buffer space 1Mbit
Flow control Full duplex state: flow control; half-duplex state: back pressure mode
Delay 9.6us
Bit error rate <1/1000000000
MTBF 100,000 hours
LED 100M (twisted pair rate 100M), TP1/2/3/4/5 Link(twisted pair link/action); P1 (power supply P1 connected), P2(power supply P2 connected)
Power 12/24/48 VDC,18 ~ 30VAC input
Power consumption 3W
Operating temperature Normal:-10~60°C ;-T(wide temperature range): -40~75°C
Operating humidity 5%~90%
Storage temperature -40~85°C
Storage humidity 5%~95% (non-condensing)
Installation Din rail installation, wall mounting installation
Dimensions 115mm×30mm×70mm (height * width * depth)

Order information

No Product code Management Ports Power
1 Foway4205T No 5 10/100M RJ45 ports DC12-48V
2 Foway4205TM Support 5 10/100M RJ45 ports DC12-48V
