Specifications
Brand Name :
Hioso
Model Number :
FOWAY2509TFS
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 pcs/month
Delivery Time :
3-10 work days
Packaging Details :
38X24X18 CM
Product name :
Gigabit Ethernet Switch
Buffer memory space :
2Mbit
Products status :
Stock
MAC :
16K
MTBF :
100000 hours
Bit error rate :
<1/1000000000
Description

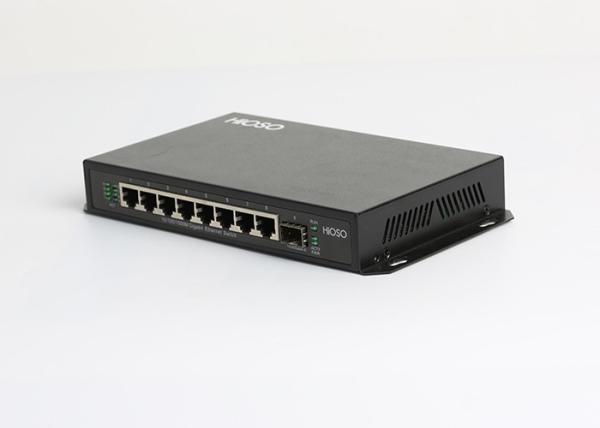

Gigabit Ethernet Switch 8 1000M RJ45 Ports + 1 1000M SFP Uplink Port

Overview

HiOSO Foway2509TFS series 9 ports 1000M Security Industrial Ethernet Switches, supply 8 10/100/1000M RJ45 ports

and 1 1000M SFP uplink port; SFP port supports hot swap. It supports to work with fiber switches, fiber media converters,

and other terminal devices with fiber port;support to choose web or SNMP management; support to transmit HD video flow;

apply to Security system, electronic power system and traffic system requirements.

Technical Specification

Parameter Specification
Standard IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet,IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS, IEEE802.1d Spanning Tree, IEEE802.3ad Trunk
Wavelength 850nm/1310nm/1490nm/1550nm
Transmission distance

1000M fiber:multi-mode: 220m ; Single-mode:10/20/40/60/80/100/120Km;

Single-fiber single-mode:10/20/40/60/80/100/120Km;

CAT5: 100M
Ports

8 1000M RJ45 ports: 10/100/1000Mbs

1 1000M SFP uplink port:1 Gbps, 1000M SFP/ 1000M Copper SFP
MAC 16K
Buffer memory space 2Mbit
Bit error rate <1/1000000000
MTBF 100000 hours
Power DC12V/2A dual input redundant backup
Power consumption 6W
Working temperature Common:-10~60℃; -T (wide temperature range):-40~75℃
Storage temperature -40~80℃
Humidity 5%~90% non-condensing
Installation Wall mounting type
Dimension 30mm (H)×219mm(W)×119mm (D)

Order information

No Type NMS Ports
1 Foway2509TFS NO 8 10/100/1000M RJ45 ports + 1 1000M SFP uplink
2 Foway2509TFSM YES 8 10/100/1000M RJ45 ports + 1 1000M SFP uplink
