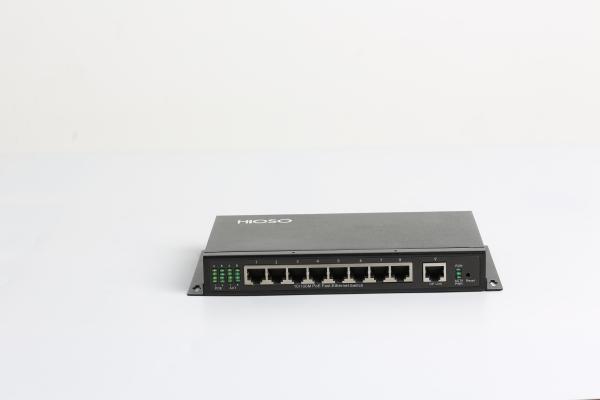

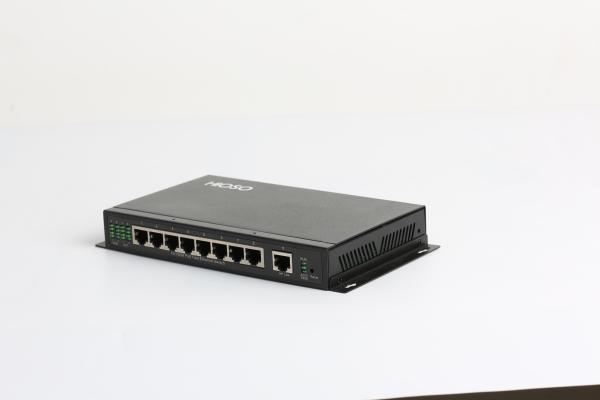

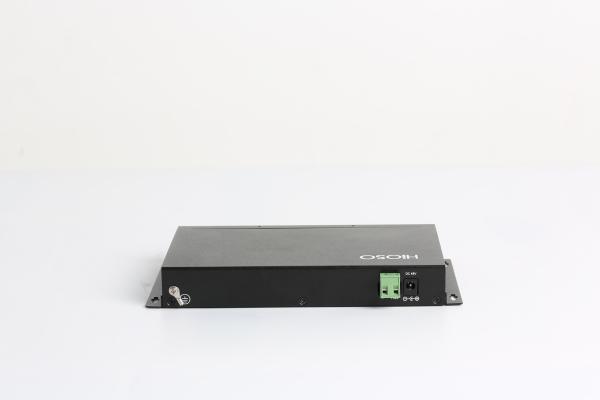

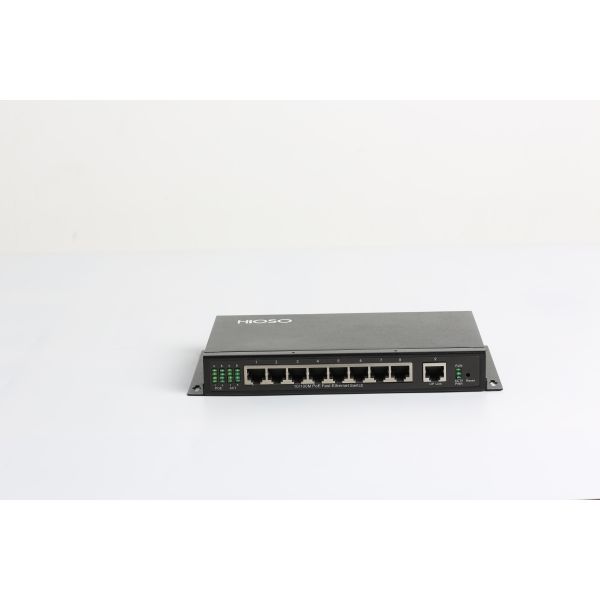

8 10/100M POE Ports 1 FE RJ45 Port 100M POE Switch 9 Ports
8 10/100M POE Ports 1 FE RJ45 Port 100M POE Switch 9 Ports
8 10/100M POE Ports 1 FE RJ45 Port 100M POE Switch 9 Ports
8 10/100M POE Ports 1 FE RJ45 Port 100M POE Switch 9 Ports
8 10/100M POE Ports 1 FE RJ45 Port 100M POE Switch 9 Ports
8 10/100M POE Ports 1 FE RJ45 Port 100M POE Switch 9 Ports
8 10/100M POE Ports 1 FE RJ45 Port 100M POE Switch 9 Ports
8 10/100M POE Ports 1 FE RJ45 Port 100M POE Switch 9 Ports
Specifications
Brand Name :
Hioso
Model Number :
Foway2209P
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A
Supply Ability :
3000 pcs/month
Delivery Time :
3-9 work days
Packaging Details :
38X24X18 CM
Name :
POE Switch
standard :
IEEE802.3af/at
distance :
CAT5: 100M
cache space :
1 Mbit
Working :
-10~60℃
Storage :
-40~80℃
Description

9 Ports 100M Poe Switch 8 10 / 100M PoE Ports + 1 FE RJ45 Port

Overview

HiOSO Foway2209P series 9 ports 100M Security Industrial PoE Ethernet Switches, supply 8 10/100M RJ45 PoE ports and 1 10/100M RJ45 uplink port; support auto discovery IEEE802.3af/at standard powered devices,auto stop powering the non standard poe devices;support to supply power to IP cameras,VoIP phones,wireless access points and other network devices;support to choose web or SNMP management; support to transmit HD video flow; apply to Security system, electronic power system and traffic system requirements.

Character

  • Support 8 10/100M RJ45 PoE ports and 1 10/100M RJ45 uplink port
  • Each PoE port supports auto detect the powered device
  • Support IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards
  • Support each port full rate, full-duplex non-blocking forwarding
  • Support WEB management and SNMP (optional)
  • Support 2K MAC learning, 1Mbit cache space,2G back plane bandwidth
  • Each RJ45 port adopts anti-high voltage circuit, strengthen the lightning protection and anti-interference ability
  • Supply redundant dual power input ports, enhance reliability
  • Metal casing with Wall mounting design, better for heat dissipating and installation

Technical Specification

Parameter Specification
Standard IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet,IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS, IEEE802.1d Spanning Tree,IEEE802.3af,IEEE802.3at
PoE

8 10/100M RJ45 PoE/PSE, support IEEE802.3af 15.4W / IEEE802.3at 30W

Working mode:auto detect powered device,stop powering if not PD device
Transmission distance CAT5: 100M
Ports

8 10/100M RJ45 ports (PoE/PSE): 10/100Mbs

1 10/100M RJ45 uplink port: 10/100Mbps
MAC 2K
Buffer memory space 1Mbit
Bit error rate <1/1000000000
MTBF 100000 hours
Power DC48V dual input redundant backup
Power consumption Whole device:5W POE/PSE: maximum240W
Working temperature Common:-10~60℃; -T (wide temperature range):-40~75℃
Storage temperature -40~80℃
Humidity 5%~90% non-condensing
Installation Wall mounting type
Dimension 30mm (H)×219mm(W)×119mm (D)

Order information

No Type NMS Ports Output Power
1 Foway2209P-8AF NO 8 10/100M PoE+ 1 10/100M RJ45 IEEE802.3af 15.4W, total 125w
2 Foway2209P NO 8 10/100M PoE+ 1 10/100M RJ45 IEEE802.3af/at 15.4W/30W, total125w
3 Foway2209P-120W NO 8 10/100M PoE+ 1 10/100M RJ45 IEEE802.3af/at 15.4W/30W, total 240w
4 Foway2209PM-8AF YES 8 10/100M PoE+ 1 10/100M RJ45 IEEE802.3af 15.4W, total 125w
5 Foway2209PM YES 8 10/100M PoE+ 1 10/100M RJ45 IEEE802.3af/at 15.4W/30W, total 125w
6 Foway2209PM-120W YES 8 10/100M PoE+ 1 10/100M RJ45 IEEE802.3af/at 15.4W/30W, total 240w

8 10/100M POE Ports 1 FE RJ45 Port 100M POE Switch 9 Ports

8 10/100M POE Ports 1 FE RJ45 Port 100M POE Switch 9 Ports

FAQ

Q: Can you offer Technical Support after purchase?

A: YES, HSGQ technical department will be 24h stand by to solve your concerns.

Q: Do you accept Small Quantity Order?
A: Yes, we do accept a trial order to support you test the quality.

Q: What is your Lead Time for regular items?
A: Normal items, will delivery ASAP after payment 1-5 Days , for OEM / ODM, pls confirm the date with us.

Q: Do you offer Distributorship Abroad?
A: Yes, we are looking for a reliable business partner overseas market, welcomw to be HSGQ Exclusive Agent.

Q: What Payment Term can you provide?
A: Delivery Terms: FOB,CFR, CIF, EXW； Payment Currency: USD, CNY;
Payment Type: T/T,L/C,Western Union,Cash,Escrow;

Q: How about the Shipping?
A: For sample, about 5-7 days by fast delivery
For Mass order, about 15-25 days by sea, air, train shipping (after payment )
