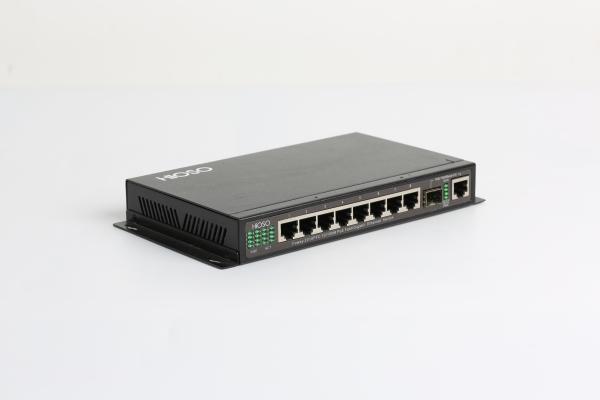

8 100M RJ45 PoE Ports + 2 1000M SFP Ports PoE Network Switch
8 100M RJ45 PoE Ports + 2 1000M SFP Ports PoE Network Switch
8 100M RJ45 PoE Ports + 2 1000M SFP Ports PoE Network Switch
8 100M RJ45 PoE Ports + 2 1000M SFP Ports PoE Network Switch
8 100M RJ45 PoE Ports + 2 1000M SFP Ports PoE Network Switch
8 100M RJ45 PoE Ports + 2 1000M SFP Ports PoE Network Switch
8 100M RJ45 PoE Ports + 2 1000M SFP Ports PoE Network Switch
8 100M RJ45 PoE Ports + 2 1000M SFP Ports PoE Network Switch
Specifications
Brand Name :
Hioso
Model Number :
Foway2310PFS
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
4000pcs/month
Delivery Time :
3-10 working days
Packaging Details :
38X24X18 CM
Name :
10 Ports POE Switch
Function :
8K MAC learning
Standard :
IEEE802.3at
Support :
Auto detect
Storage :
1Mbit
Consumption :
5.2W
Description

10 Ports Industrial PoE Switch 8 100M RJ45 PoE Ports + 2 1000M SFP Ports

Overview

HiOSO Foway2310PFS series 10 ports 100M/1000M Security Industrial PoE Ethernet Switches, supply 8 10/100M RJ45 PoE ports and 2 1000M SFP cascaded/ring network uplink ports ; support auto discovery IEEE802.3af/at standard powered devices,auto stop powering the non standard poe devices;support to supply power to IP cameras,VoIP phones,wireless access points and other network devices;support to choose web or SNMP management; support to transmit HD video flow; apply to Security system, electronic power system and traffic system requirements.

Technical Specification

Parameter Specification
Standard IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.3z 1000Base-SX/LX Gigabit Ethernet,IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS, IEEE802.1d Spanning Tree,IEEE802.1w RSTP IEEE802.3af,IEEE802.3at
PoE

8 10/100M RJ45 PoE/PSE, support IEEE802.3af 15.4W / IEEE802.3at 30W

Working mode:auto detect powered device,stop powering if not PD device
Wavelength 850nm/1310nm/1490nm/1550nm/
Transmission distance 1000M Fiber,multi-mode:220m(fiber size 62.5/125μm)/550m(fiber size 50/125μm); Single-mode:10/20/40/60/80/100/120Km;Single-fiber:10/20/40/60/80/100/120Km CAT5: 100M
Ports

8 10/100M RJ45 ports (POE/PSE);

2 1000M SFP ports: 1 Gbps, 1000M SFP / 1000M Copper SFP
MAC 8K
Buffer memory space 1Mbit
Bit error rate <1/1000000000
MTBF 100000 hours
Power

DC48V dual input redundant backup (external power)

AC110V/220V@50HZ/60HZ&DC48V dual input redundant backup (inside power)
Power consumption Whole device:5.2W POE/PSE: maximum240W
Working temperature Common:-10~60℃; -T (wide temperature range):-40~75℃
Storage temperature -40~80℃
Humidity 5%~90% non-condensing
Installation Wall mounting type (external power), desk type/1U rack (inside power)
Dimension

30mm (H)×219mm(W)×119mm (D) (external power)

44mm (H)×276mm(W)×190mm (D) (inside power)

8 100M RJ45 PoE Ports + 2 1000M SFP Ports PoE Network Switch

8 100M RJ45 PoE Ports + 2 1000M SFP Ports PoE Network Switch
