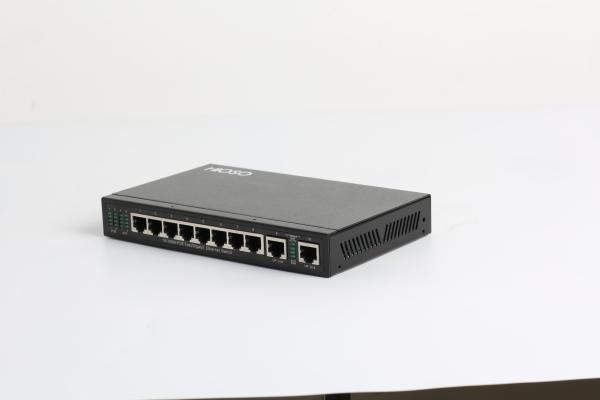

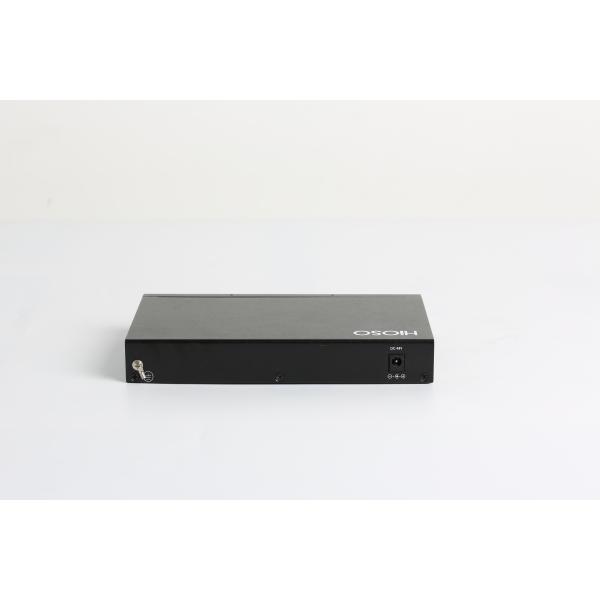

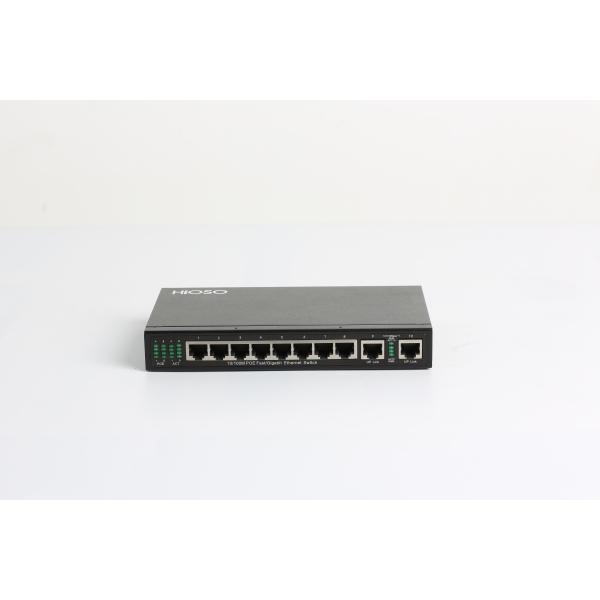

DC48V 8 10/100M POE Ports 2 100M TP Ports POE Switch Managed switch poe 8 port
DC48V 8 10/100M POE Ports 2 100M TP Ports POE Switch Managed switch poe 8 port
DC48V 8 10/100M POE Ports 2 100M TP Ports POE Switch Managed switch poe 8 port
DC48V 8 10/100M POE Ports 2 100M TP Ports POE Switch Managed switch poe 8 port
DC48V 8 10/100M POE Ports 2 100M TP Ports POE Switch Managed switch poe 8 port
DC48V 8 10/100M POE Ports 2 100M TP Ports POE Switch Managed switch poe 8 port
DC48V 8 10/100M POE Ports 2 100M TP Ports POE Switch Managed switch poe 8 port
DC48V 8 10/100M POE Ports 2 100M TP Ports POE Switch Managed switch poe 8 port
Specifications
Brand Name :
Hioso
Model Number :
FOWAY1210P
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
10000pcs/month
Delivery Time :
2-12 work days
Packaging Details :
38X24X18 CM
Name :
10 ports switch
Distance :
100m
MAC :
2K
MTBF :
100000 hours
Power :
DC48V
Consumption :
5W
Description

10 Ports 100M Poe Switch 8 10 / 100M POE Ports + 2 100M TP Ports

Feature

  • 8 10/100M RJ45 PoE ports and 2 100M RJ45 uplink port
  • Auto discovery of standard power receiving device on every port
  • Support IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards
  • Full 100M rate, full-duplex non-blocking forwarding on every pot
  • 2K MAC learning, 1Mbit storage of forward cache space, 2G back plane bandwidth
  • Anti-high voltage with lightning protection and anti-interference ability on each RJ45 port
  • External power supply
  • Metal casing better for heat dissipating

Technical Specification

Parameter Specification
Standard IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE802.3af, IEEE802.3at, IEEE802.1d Spanning Tree
PoE

PoE ports: 8

Standard and power consumption:IEEE802.3af 15.4W, IEEE802.3at 30W

Working mode: auto discovery power receiving devices and auto power supply/power cutting
Distance 100m
Port

8 100M PoE ports: 10/100Mbps

2 uplink port: RJ45 port 10/100M bps
MAC 2K
Buffer memory space 1Mbit
Bit error rate <1/1000000000
MTBF 100000 hours
Power DC48V
Power consumption 5W, PoE power supplying maximum 240W
Working temperature -10~60℃
Storage temperature -40~80℃
Humidity 5%~90% non-condensing
Dimension 28mm (H)×193mm(W)×119mm (D)

DC48V 8 10/100M POE Ports 2 100M TP Ports POE Switch Managed switch poe 8 port

DC48V 8 10/100M POE Ports 2 100M TP Ports POE Switch Managed switch poe 8 port
