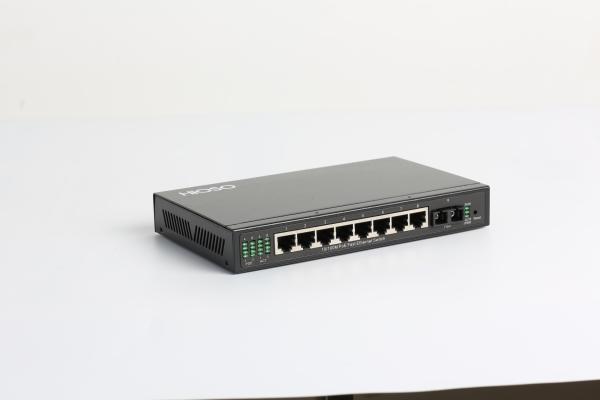

Heat Dissipating IEEE802.3af 15.4W 2 Fiber Ports POE Switch
Heat Dissipating IEEE802.3af 15.4W 2 Fiber Ports POE Switch
Heat Dissipating IEEE802.3af 15.4W 2 Fiber Ports POE Switch
Heat Dissipating IEEE802.3af 15.4W 2 Fiber Ports POE Switch
Heat Dissipating IEEE802.3af 15.4W 2 Fiber Ports POE Switch
Heat Dissipating IEEE802.3af 15.4W 2 Fiber Ports POE Switch
Heat Dissipating IEEE802.3af 15.4W 2 Fiber Ports POE Switch
Heat Dissipating IEEE802.3af 15.4W 2 Fiber Ports POE Switch
Specifications
Brand Name :
Hioso
Model Number :
FOWAY1209PF
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A
Supply Ability :
2000pcs/month
Delivery Time :
3-10 work days
Packaging Details :
38X24X18 CM
Item :
Poe Switch
Poe :
8 poe ports
Port :
2 Fiber ports
Support :
IP camera
MAC :
2K
storage :
1M
Description

9 Port Ethernet Poe Switch 8 100M PoE Ports + 1 100M FX Port

Character

  • Support maximum 8 100M RJ45 PoE ports and 1 100M fiber uplink port
  • Each PoE port supports to auto discovery the standard power receiving devices
  • Support IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards
  • Support each 100M port full rate, full-duplex non-blocking forwarding
  • Support 2K MAC learning, 1Mbit storage and forward cache space, 2G back plane bandwidth
  • Each RJ45 port using anti-high voltage circuit, strengthen the lightning protection and anti-interference ability
  • Support to provide wall-mounted hanger better for installation if need, external power design and metal casing better for heat dissipating

Technical Specification

Parameter Specification
Standard IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3af, IEEE802.3at, IEEE802.1d Spanning Tree
PoE

PoE ports: 8

Standard and power consumption:IEEE802.3af 15.4W, IEEE802.3at 30W

Working mode: auto discovery power receiving devices and auto power supply/power cutting
Wavelength 850nm/1310nm/1490nm/1550nm
Distance

multi-mode: 2Km

Single-mode: 20/40/60/80/100/120Km

Single-fiber single-mode: 20/40/60/80/100/120Km
Port

8 100M PoE ports: 10/100Mbps

1100M FX uplink port: fiber port SC-100Mbps
MAC 2K
Buffer memory space 1Mbit
Bit error rate <1/1000000000
MTBF 100000 hours
Power DC48V
Power consumption 7W, PoE power supplying maximum 240W
Working temperature -10~60℃
Storage temperature -40~80℃
Humidity 5%~90% non-condensing
Dimension 28mm (H)×193mm(W)×119mm (D)

Order information

No Product code NMS Ports PoE ports
1 FOWAY1209PF No 8 100M RJ45+1 100M fiber uplink 8 PoE ports IEEE802.3af/at 125W
2 FOWAY1209PF-240W No 8 100M RJ45+1 100M fiber uplink 8 PoE ports IEEE802.3af/at 240W
3 FOWAY1209PFM Yes 8 100M RJ45+1 100M fiber uplink 8 PoE ports IEEE802.3af/at 125W
4 FOWAY1209PFM-240W Yes 8 100M RJ45+1 100M fiber uplink 8 PoE ports IEEE802.3af/at 240W
