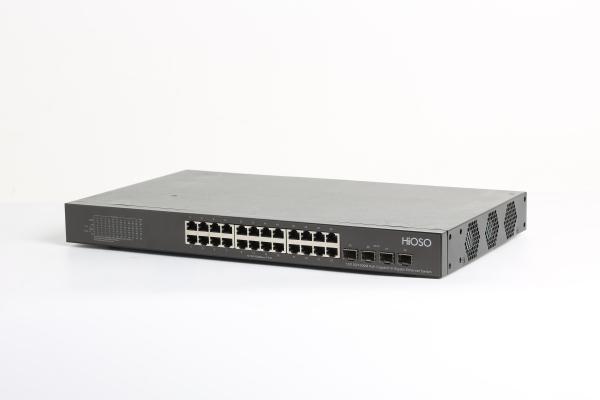

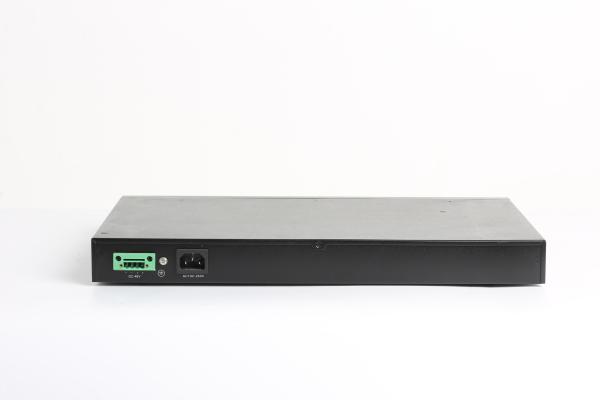

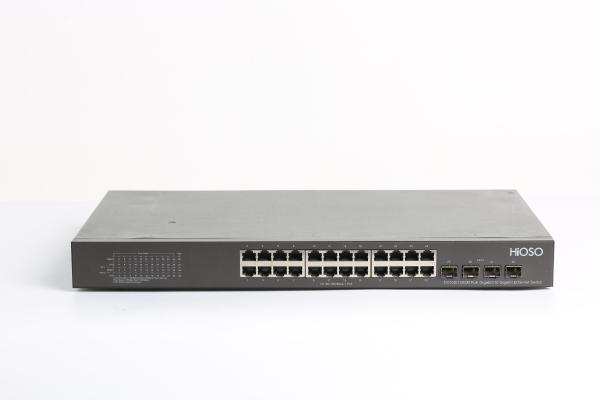

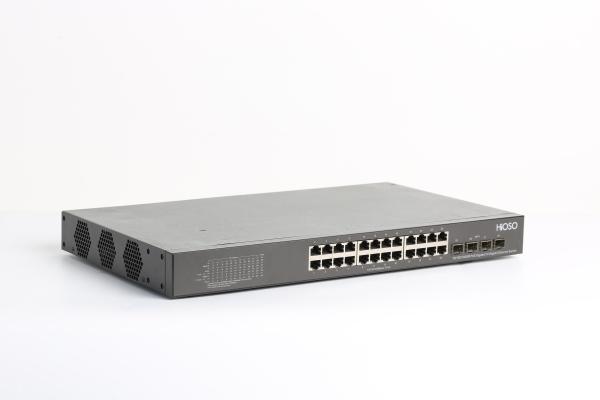

24 PoE Port 4 10G SFP Port POE Switch , Power Over Ethernet Switch
24 PoE Port 4 10G SFP Port POE Switch , Power Over Ethernet Switch
24 PoE Port 4 10G SFP Port POE Switch , Power Over Ethernet Switch
24 PoE Port 4 10G SFP Port POE Switch , Power Over Ethernet Switch
24 PoE Port 4 10G SFP Port POE Switch , Power Over Ethernet Switch
24 PoE Port 4 10G SFP Port POE Switch , Power Over Ethernet Switch
24 PoE Port 4 10G SFP Port POE Switch , Power Over Ethernet Switch
24 PoE Port 4 10G SFP Port POE Switch , Power Over Ethernet Switch
Specifications
Brand Name :
Hioso
Model Number :
Foway2628PFSP
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
4000pcs/month
Delivery Time :
3-10 working days
Packaging Details :
54X32X18 cm
Name :
28 ports poe switch
Mac :
16K MAC learning
Cache space :
12Mbit
Back plane :
128G
Working :
-10~60℃
Storage :
-40~80℃
Description

28 Port Poe Switch 24 10 / 100 / 1000M Poe Port + 4 10G Sfp Port

Overview

HiOSO Foway2628PFSP series 28 ports 1000M Security Industrial PoE Ethernet Switches, supply 24 10/100/1000M RJ45 PoE ports and 4 10G SFP uplink ports (1G SFP/10G SFP+); support auto discovery IEEE802.3af/at standard powered devices,auto stop powering the non standard poe devices;support to supply power to IP cameras,VoIP phones,wireless access points and other network devices;support to choose web or SNMP management; support maximum 350Gbps switching capacity, port full wire speed 95Mbps, support to meet large networks aggregation and medium core network requirements; support to transmit HD video flow; apply to Security system, electronic power system and traffic system requirements.

Parameter Specification
PoE 24 1000M PoE/PSE ports, support IEEE802.3af 15.4W / IEEE802.3at 30W
Wavelength SFP/SFP+: 850nm/1310nm/1490nm/1550nm/
Transmission distance

1G SFP, multi-mode:220m(fiber size 62.5/125μm) /550m(fiber size 50/125μm); Single-mode:10/20/40/60/80/100/120Km; Single-fiber:10/20/40/60/80/100/120Km

10G SFP+,multi-mode:300m;single-mode 2/10/20/40/60/80Km;single-fiber:10/20/40Km; CAT5: 100M
Ports 24 1000M RJ45 ports (POE/PSE);4 10G SFP+ ports:1G SFP/10G SFP+
MAC 16K
Buffer memory space 12Mbit
Bit error rate <1/1000000000
Power AC110V/220V@50HZ/60HZ
Power consumption Whole device:24W POE/PSE: maximum370W
Installation 1U rack
Dimension 44mm (H)×440mm(W)×260mm (D)
