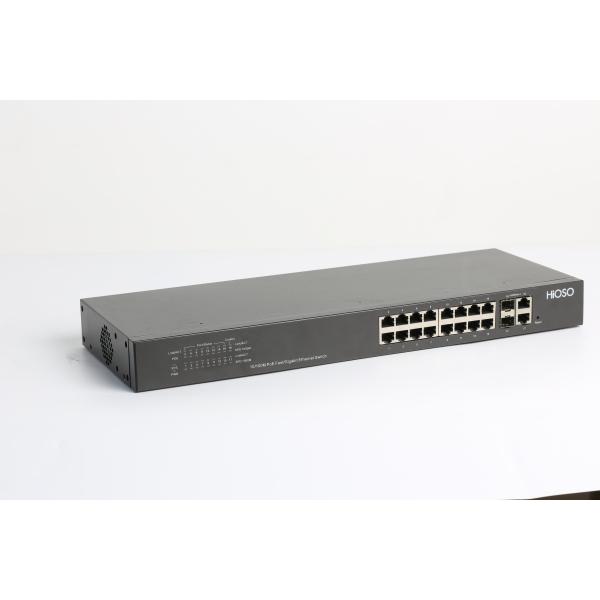

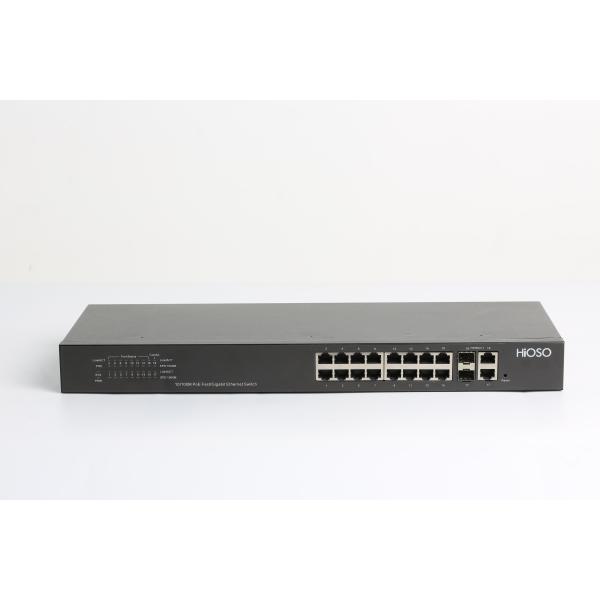

16 10/100M PoE Ports 2 Combo Uplink Ports 18 Port Gigabit Switch
16 10/100M PoE Ports 2 Combo Uplink Ports 18 Port Gigabit Switch
16 10/100M PoE Ports 2 Combo Uplink Ports 18 Port Gigabit Switch
16 10/100M PoE Ports 2 Combo Uplink Ports 18 Port Gigabit Switch
16 10/100M PoE Ports 2 Combo Uplink Ports 18 Port Gigabit Switch
16 10/100M PoE Ports 2 Combo Uplink Ports 18 Port Gigabit Switch
16 10/100M PoE Ports 2 Combo Uplink Ports 18 Port Gigabit Switch
16 10/100M PoE Ports 2 Combo Uplink Ports 18 Port Gigabit Switch
Specifications
Brand Name :
Hioso
Model Number :
Foway2318PFCPM
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
5000pcs/month
Delivery Time :
2-12 work days
Packaging Details :
54X32X18 cm
Item :
18 ports switch
Poe :
16 poe ports
Ports :
2 uplink ports
Power :
DC48V
Working temperature :
-10~60℃
Storage temperature :
-40~80℃
Description

18 Ports PoE Switch 16 10 / 100M PoE Ports + 2 Combo Uplink Ports

Character

  • Support 16 10/100M RJ45 PoE ports and 2 Combo Uplink ports
  • Each PoE port supports auto detect the powered device
  • Support IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards
  • Support each port full rate, full-duplex non-blocking forwarding
  • Support WEB management and SNMP (optional)
  • 8K MAC learning, 2Mbit storage and forward cache space,15.2G back plane bandwidth
  • Each RJ45 port adopts anti-high voltage circuit, strengthen the lightning protection and anti-interference ability
  • Standard 1U rack design, inside fan , better for heat dissipating and installation

Parameter Specification
Standard IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS, IEEE802.1d Spanning Tree, IEEE802.3af,IEEE802.3at
PoE

16 10/100M RJ45 PoE/PSE, support IEEE802.3af 15.4W / IEEE802.3at 30W

Working mode:auto detect powered device,stop powering if not PD device
Wavelength 850nm/1310nm/1490nm/1550nm/
Transmission distance

100M fiber,multi-mode:2Km;single-mode:25/40/60/80/100/120Km; single-fiber:25/40/60/80/100/120Km;

1000M Fiber,multi-mode:220m; Single-mode:10/20/40/60/80/100/120Km

Single-fiber:10/20/40/60/80/100/120Km CAT5: 100M
Ports 16 10/100M RJ45 ports (POE/PSE); 2 1000M Combo ports
MAC 8K
Buffer memory space 2Mbit
Bit error rate <1/1000000000
Power AC110V/220V@50HZ/60HZ
Power consumption Whole device:8W POE/PSE: maximum247W
Working temperature Common:-10~60℃
Storage temperature -40~80℃
Humidity 5%~90% non-condensing
Installation 1U rack
Dimension 44mm (H)×440mm(W)×160mm (D)

16 10/100M PoE Ports 2 Combo Uplink Ports 18 Port Gigabit Switch

16 10/100M PoE Ports 2 Combo Uplink Ports 18 Port Gigabit Switch
