Specifications
Brand Name :
Hioso
Model Number :
Foway1206PP-L
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
4000pcs/month
Delivery Time :
2-12 work days
Packaging Details :
38X24X18 CM
Name :
6 ports non Standard PoE Switch
Transmission distance :
CAT 5: 100M rate 100m
Buffer space :
1Mbit
MAC address :
1K
MTBF :
100000 hours
Power :
AC110V/220V
Description

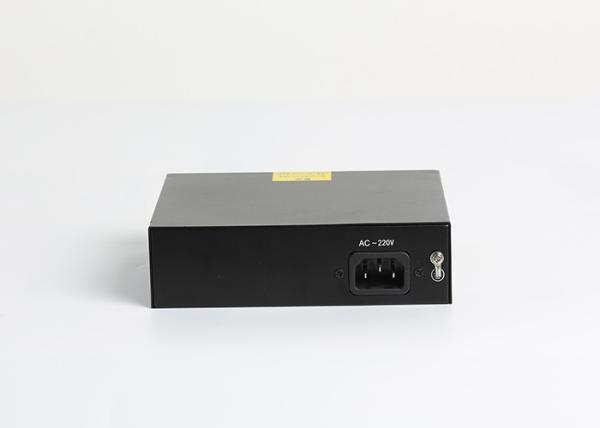

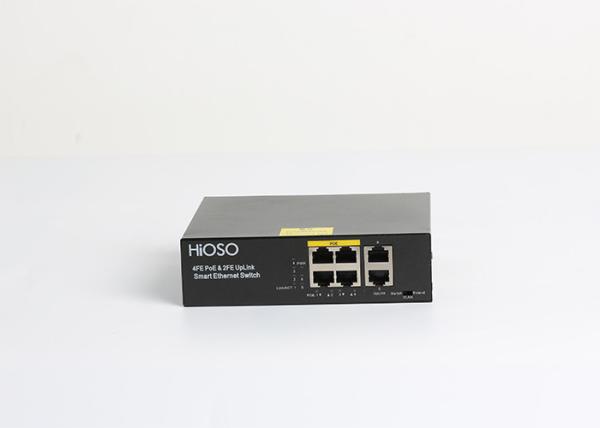

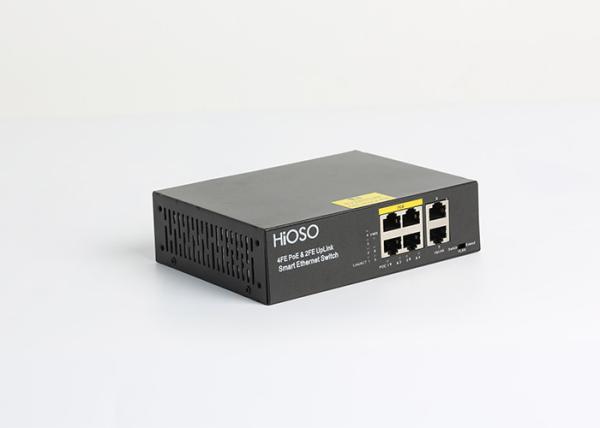

Non Standard PoE Switch 4 100M PoE Ports + 2 100M RJ45 Uplink Ports

Overview

HiOSO Foway1206PP-L surveillance access non-standard PoE switch, supplies 4 10/100MRJ Non-standard PoE ports (DC24V power supply),2 10/100M RJ45 uplink ports. Each port support maximum 15W Ethernet power,supports to power non-standard PoE network cameras,non-PoE video intercom syste and wireless AP devices.

It supports to choose switch mode, vlan islolated mode and long distance 250m mode (change rate to 10M). It applies to security system, smart areas and smart buildings network transmission application.

Feature

  • Support each port full 100M transmission
  • Support 1K MAC learning table, 1Mbit Store-and-forward cache space
  • Switch option:normal switch mode(Switch),port vlan mode and 250m long distance mode (Extend,rate changes to 10M)

Application

Security Video Surveillance access network sytem, Smart Aeras Video Audio intercom system etc.

Technical Specification

Parameter Specification
Standards IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet
PoE

Power supply ports: 4 100M RJ45

Power supply voltage: Non-standard DC24V, support to use lower DC power supply;

Power consumption each port: maximum 15W;

RJ45 signal PIN position:1 2 3 6；

RJ45 power supply PIN position: 4 5 positive, 7 8 negative, optical to choose 1 2 positive,3 6 negative.

The device power consumption:maximum 65W
Transmission distance CAT 5: 100M rate 100m; 10M rate 250m (100M POE port)
Port

4 Non standard poe ports:10/100Mbps

2 RJ45 uplink ports:10/100Mbps
MAC 1K
Buffer space 1Mbit
Bit error rate <1/1000000000
MTBF 100000 hours
Power AC110V/220V@50HZ/60HZ
Power consumption The device 2W, PoE maximum power supply 65W
Working temperature -10~60℃
Storage temperature -40~80℃
Humidity 5%~90% non-condensing
Dimension 43mm (H)×152mm(W)×117mm (D) /height×width×length

Order information

No Type PoE smart control Ports PoE ports
1 Foway1206PP-L No 4FE + 2 FE 4 100M POE ports, power supply DC24V, power supply PIN 45+/78-,total power consumption 65W
2 Foway1206PP-LB No 4FE + 2 FE 4 100M POE ports, power supply DC24V, power supply PIN 12+/36-,total power consumption 65W
