Specifications
Brand Name :
Hioso
Model Number :
Foway1326PP-L
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, D/P
Supply Ability :
4000pcs/month
Delivery Time :
3-10 working days
Packaging Details :
38X24X18 CM
Item :
26 ports poe switch
Power :
AC110V/220V@50HZ/60HZ
Bit error rate :
<1/1000000000
MTBF :
100000 hours
Working temperature :
-10~60℃
Storage temperature :
-40~80℃
Description

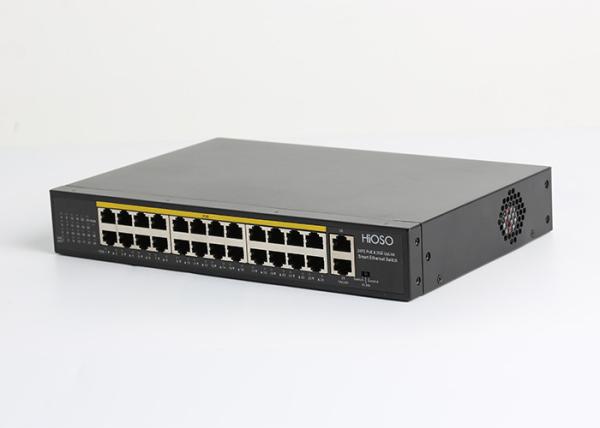

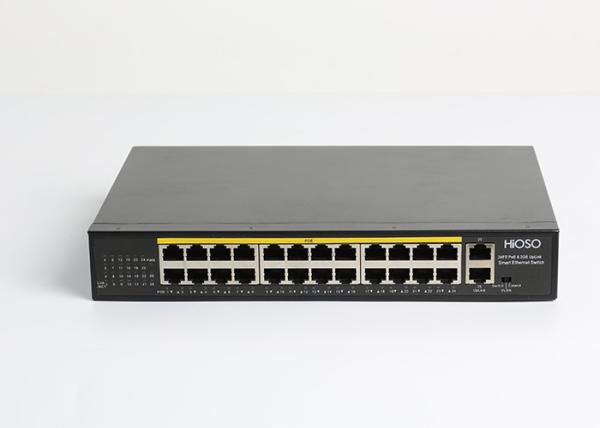

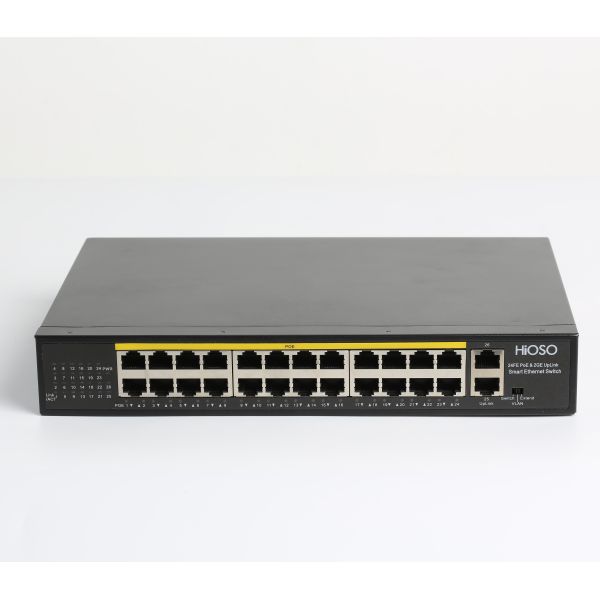

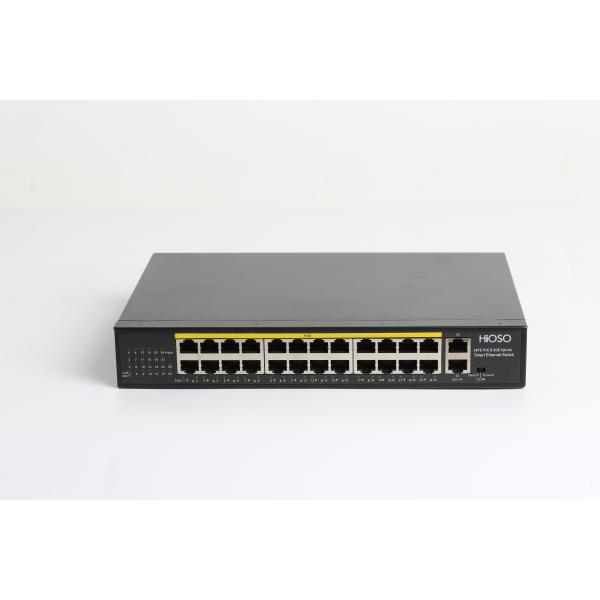

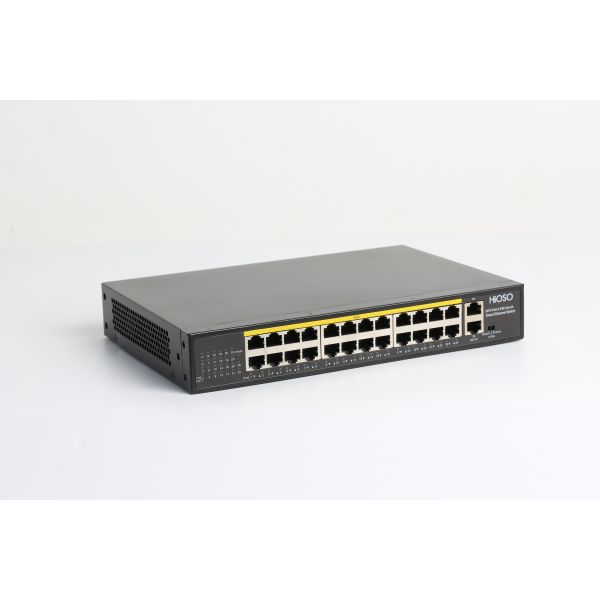

26 Ports Non Standard PoE Switch 24 100M PoE Ports + 2 1000M RJ45 Uplink Ports

HiOSO 26 Ports Non Standard PoE Switch 24 100M PoE Ports + 2 1000M RJ45 Uplink Ports

Feature

  • Support 24 100M Non-standard PoE ports and 2 1000M uplink ports
  • 100M RJ45 port 12/36 PIN transmit signal, 45+/78- PIN DC24V power supply, optional to choose 12+/36+ to supply power, or lower DC power, each port maximum power supply 15W
  • Support each port full 100M transmission
  • Support 2K MAC learning table, 1Mbit Store-and-forward cache space
  • Switch option:normal switch mode(Switch),port vlan mode and 250m long distance mode (Extend,rate changes to 10M)
  • Metal case, inside power, better for heat dissipating

Technical Specification

Parameter Specification
PoE

Power supply ports: 24 100M RJ45

Power supply voltage: Non-standard DC24V, support to use lower DC power supply;

Power consumption each port: maximum 15W;

RJ45 signal PIN position:1 2 3 6；

RJ45 power supply PIN position: 4 5 positive, 7 8 negative, optical to choose 1 2 positive,3 6 negative.

The device power consumption:maximum 200W
Transmission distance CAT 5: 100M rate 100m; 10M rate 250m (100M POE port)
Port

24 Non standard poe ports:10/100Mbps

2 GE RJ45 uplink ports:100/1000Mbps
MAC 2K
Buffer space 1Mbit

Order information

No Type PoE smart control Ports PoE ports
1 Foway1326PP-L No 24FE + 2 GE 24 100M POE ports, power supply DC24V, power supply PIN 45+/78-,total power consumption 260W
2 Foway1326PP-LB No 24FE + 2 GE 24 100M POE ports, power supply DC24V, power supply PIN 12+/36-,total power consumption 260W

HiOSO 26 Ports Non Standard PoE Switch 24 100M PoE Ports + 2 1000M RJ45 Uplink Ports

HiOSO 26 Ports Non Standard PoE Switch 24 100M PoE Ports + 2 1000M RJ45 Uplink Ports

Datasheet download: 1326PP-L.pdf

Our Service:
HiOSO provides technician team and special telephones to support after-sales service, customer can get answer and training from our technicians, the problem can be solved within 24 hours if there is anything with products. What's more, we provide free-exchange within one year, free-repair within three years and lifelong maintenance.

Our advantage:
Founded in 2002, Hioso Technology CO., Ltd. is the optic communication product manufacturer with 20 years experience. We engaged in the R&D, design, manufacture, sell FTTH and FTTD products all by ourselves and also provide OEM&ODM service for customers. We only provide cost-effective quality products and premium after-sale service.
