8 100M SFP Fiber Ports 1 Gigabit Combo Uplink Port Fiber Optic Switch
8 100M SFP Fiber Ports 1 Gigabit Combo Uplink Port Fiber Optic Switch
8 100M SFP Fiber Ports 1 Gigabit Combo Uplink Port Fiber Optic Switch
8 100M SFP Fiber Ports 1 Gigabit Combo Uplink Port Fiber Optic Switch
8 100M SFP Fiber Ports 1 Gigabit Combo Uplink Port Fiber Optic Switch
8 100M SFP Fiber Ports 1 Gigabit Combo Uplink Port Fiber Optic Switch
8 100M SFP Fiber Ports 1 Gigabit Combo Uplink Port Fiber Optic Switch
8 100M SFP Fiber Ports 1 Gigabit Combo Uplink Port Fiber Optic Switch
8 100M SFP Fiber Ports 1 Gigabit Combo Uplink Port Fiber Optic Switch
8 100M SFP Fiber Ports 1 Gigabit Combo Uplink Port Fiber Optic Switch
Specifications
Brand Name :
Hioso
Model Number :
FOWAY1309FCM
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000psc/month
Delivery Time :
2-10 working days
Packaging Details :
28*193*119 mm (H*W*D)
Type :
Fiber Switch
Ports :
8 10/100M sfp ports+ 1 1000M Combo Uplink port
Transmission Rate :
1000Mbps
Power Supply :
AC100-240v 50/60HZ
Working Temperature :
-10-60℃
Dimension :
28*193*119 mm (H*W*D)
Description
FOWAY1309FCM 8 100M SFP Fiber Ports +1 gigabit combo uplink port managed fiber switch
Parameter
Specification
Standard
IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit
Ethernet, IEEE802.1d Spanning Tree,IEEE802.1w Rapid STP,IEEE802.1s Multiple STP,IEEE802.1q Vlan,IEEE802.1q Qos,IEEE802.3ad
Trunk,IEEE802.3X Flow Control
Wavelength
850nm/1310nm/1490nm/1550nm
Distance
100M SFP multi-mode: 2Km
Single-mode: 25/40/60/80/100/120Km
Single-fiber single-mode: 25/40/60/80/100/120Km
1000M SFP multi-mode:220m (fiber 62.5/125μm) / 550m (fiber 50/125μm)
Single-mode:10/20/40/60/80/100/120Km
Single-fiber single-mode: 10/20/40/60/80/100/120Km
Cat5:100m
Port
8 100M SFP fiber ports: 100Mbps
1 Gigabit Combo port:1 Gbps, 100M/1000M SFP&10/100/1000M RJ45
MAC
8K
Buffer memory space
1Mbit
Bit error rate
<1/1000000000
MTBF
100000 hours
Power
DC12V/AC220V
Power consumption
7.9W
Working temperature
-10~60℃
Storage temperature
-40~80℃
Humidity
5%~90% non-condensing
Dimension
28mm (H)×193mm(W)×119mm (D)

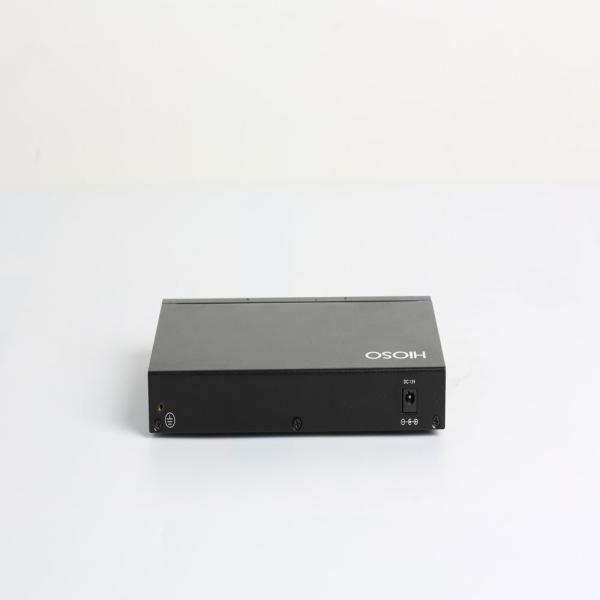

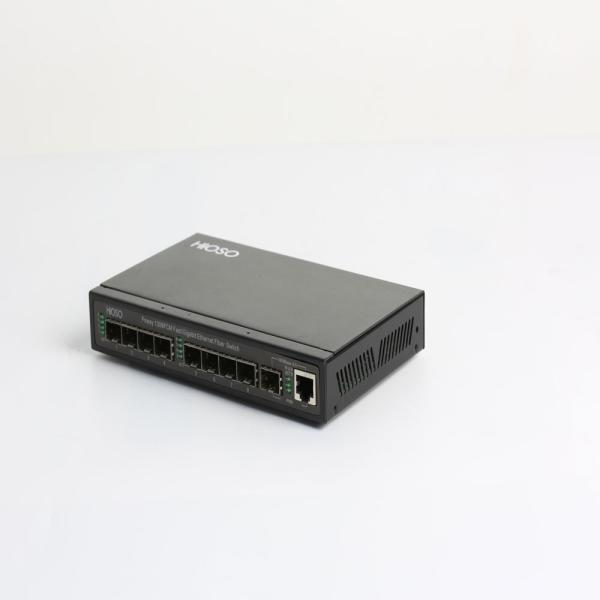

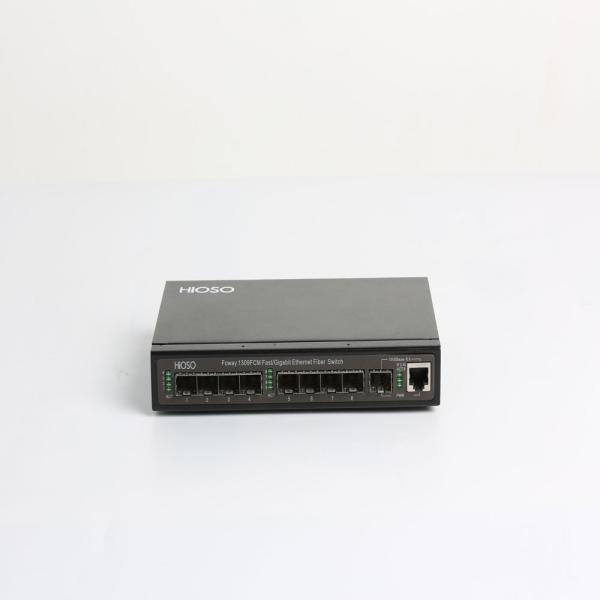

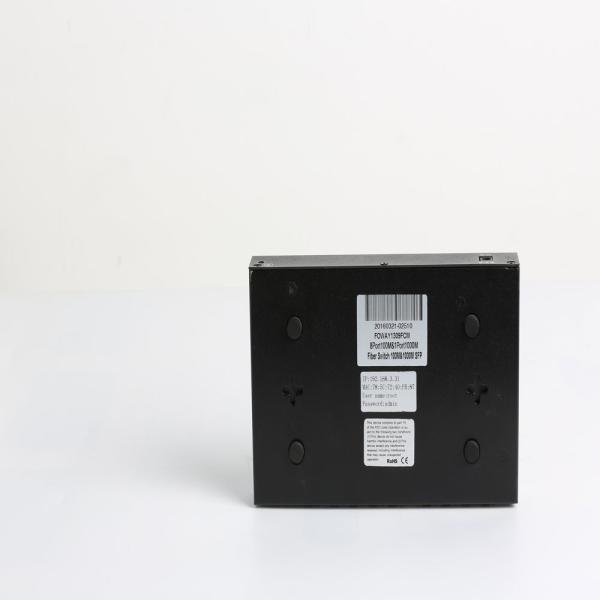

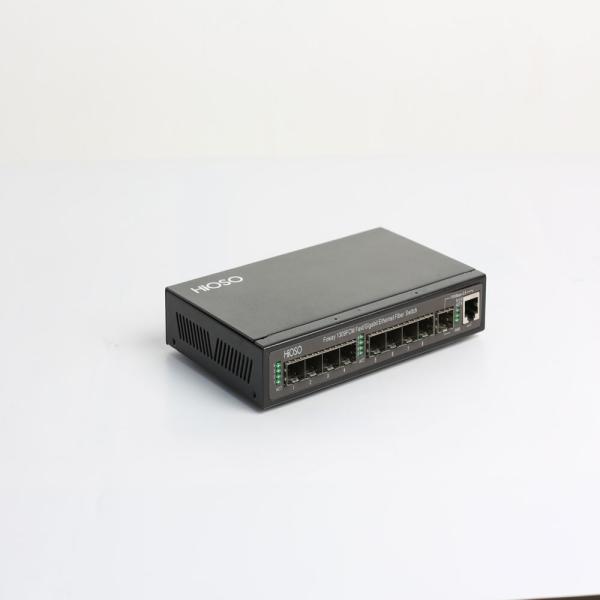

Details Images
Product Usage
Product tags

fiber optic gigabit switch

,

gigabit fiber switch

,

cisco gigabit fiber switch
