16 10/100M SFP Ports 2 100/1000M RJ45 Uplink Port Fiber Optic Switch
16 10/100M SFP Ports 2 100/1000M RJ45 Uplink Port Fiber Optic Switch
16 10/100M SFP Ports 2 100/1000M RJ45 Uplink Port Fiber Optic Switch
16 10/100M SFP Ports 2 100/1000M RJ45 Uplink Port Fiber Optic Switch
16 10/100M SFP Ports 2 100/1000M RJ45 Uplink Port Fiber Optic Switch
16 10/100M SFP Ports 2 100/1000M RJ45 Uplink Port Fiber Optic Switch
16 10/100M SFP Ports 2 100/1000M RJ45 Uplink Port Fiber Optic Switch
16 10/100M SFP Ports 2 100/1000M RJ45 Uplink Port Fiber Optic Switch
Specifications
Brand Name :
Hioso
Model Number :
FOWAY3000-18FSCM
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000psc/month
Delivery Time :
2-10 working days
Packaging Details :
44*277*190 mm (H*W*D)
Type :
fiber switch, FTTx Solutions
Ports :
16 10/100M sfp ports+ 2 1000M SFP/2 100/1000M RJ45
Transmisson rate :
100Mbps
Working Temperature :
-10-60℃
Power Supply :
AC100-240v 50/60HZ
MAC :
8K
Dimension :
44*277*190 mm (H*W*D)
Description
FOWAY3000-18FSC 16 100M SFP + 2 Combo uplink Fiber Switch
✔Support 16 100M SFP fiber ports and 2 GE Combo ports (100M/1000M SFP fiber port and 10/100/1000M RJ45 port interchange) ✔Support SFP hot swap ✔Support each port full rate, full-duplex non-blocking forwarding ✔Support WEB ,and SNMP management (optional):VLAN,STP/RSTP,Trunk port aggregation, IGMP,port Mirroring,port isolation,broadcast control,loop detection,QinQ, etc ✔Support DHCP, PPPoE, ACL, LLDP ✔Support 8K MAC learning, 2Mbit storage and forward cache space, 15.2G back plane bandwidth,1632 byte large frame forwarding ✔Supports to substitute central fiber converter, simplify network structure, lower network establishing cost, reduce device fault ✔All optic ports, strengthen the an-interference ability ✔Metal casing design (support to hang on the wall), better for heat dissipation
Technical Specification
Parameter
Specification


Standard
IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, , IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit
Ethernet, , IEEE802.1d Spanning Tree Protocol, IEEE802.1w Rapid STP, IEEE802.1s Multiple STP, IEEE802.1q VLAN, IEEE802.1p QoS,
IEEE802.3ad Trunk,IEEE802.3X Flow Control
Wavelength
SFP module: 850nm/1310nm/1490nm/1550nm


Distance
100M SFP multi-mode: 2Km
Single-mode: 20/40/60/80/100/120Km
Single-fiber single-mode: 25/40/60/80/100/120Km
1000M SFP multi-mode:220mfiber 62.5/125μm)/ 550m(fiber 50/125μm)
Single-mode:10/20/40/60/80/100/120Km
Single-fiber single-mode: 10/20/40/60/80/100/120Km
Cat5:100m


Port
16 100M SFP fiber ports: 100Mbps
2 Gigabit Combo ports:1 Gbps, 100/1000M SFP&10/100/1000M RJ45
MAC
8K
Buffer memory space
2Mbit
Bit error rate
<1/1000000000
MTBF
100000 hours
Power
AC100~240V 50/60HZ
Power consumption
16W
Working temperature
-10~60℃
Storage temperature
-40~80℃
Humidity
5%~90% non-condensing
Dimension
44mm (H)×276mm(W)×190mm (D)
Details Images

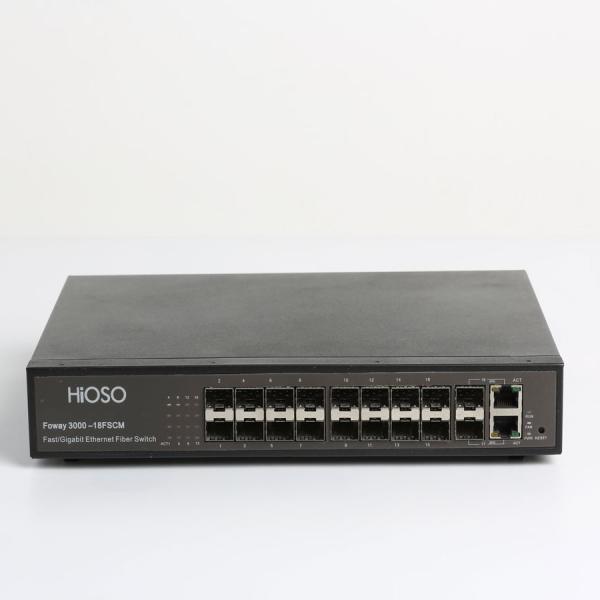

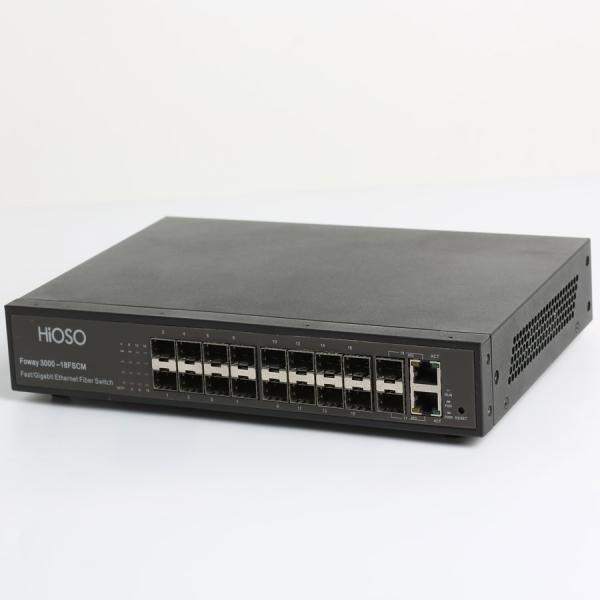

Foway 3000-18FSCM
16 100M SFP fiber ports: 100Mbps
2 Gigabit Combo ports:1 Gbps, 100/1000M SFP&10/100/1000M RJ45
