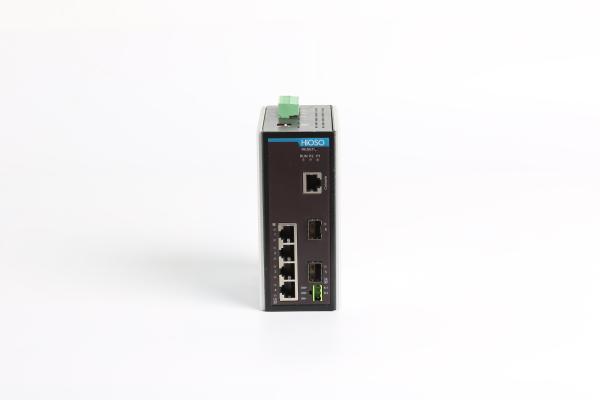

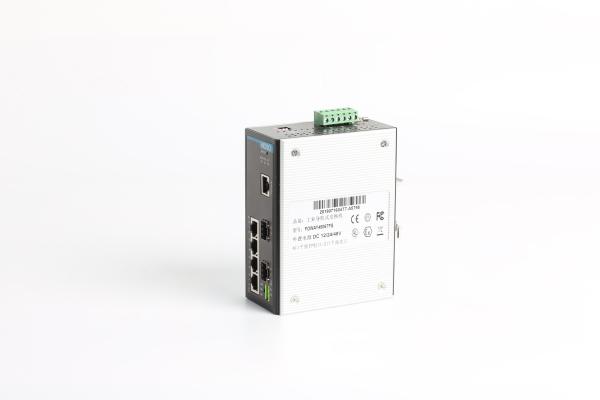

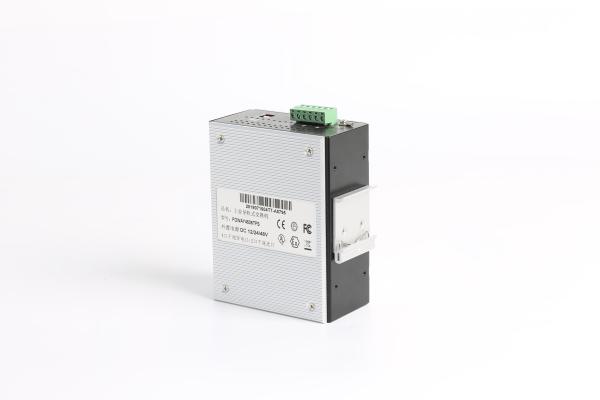

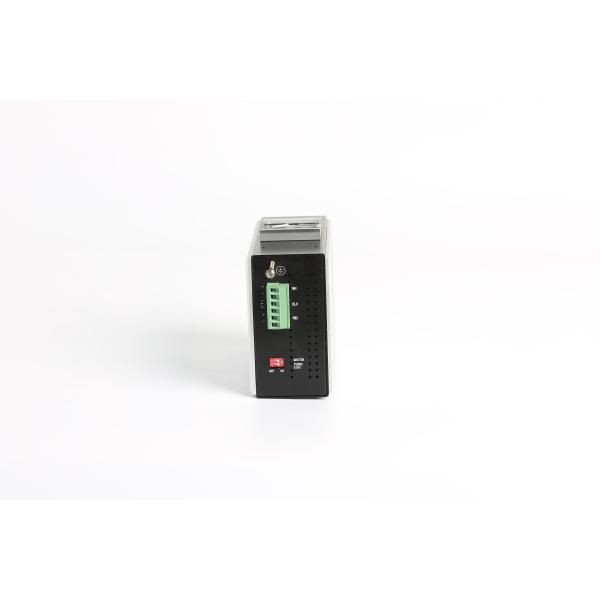

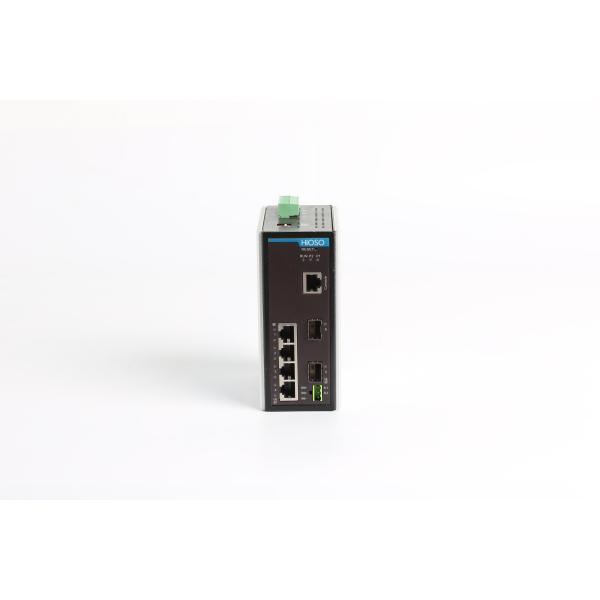

4 Rj45 Ports 2 1000M SFP Ports Gigabit Din Rail Ethernet Switch , Din Rail Managed Switch
4 Rj45 Ports 2 1000M SFP Ports Gigabit Din Rail Ethernet Switch , Din Rail Managed Switch
4 Rj45 Ports 2 1000M SFP Ports Gigabit Din Rail Ethernet Switch , Din Rail Managed Switch
4 Rj45 Ports 2 1000M SFP Ports Gigabit Din Rail Ethernet Switch , Din Rail Managed Switch
4 Rj45 Ports 2 1000M SFP Ports Gigabit Din Rail Ethernet Switch , Din Rail Managed Switch
4 Rj45 Ports 2 1000M SFP Ports Gigabit Din Rail Ethernet Switch , Din Rail Managed Switch
4 Rj45 Ports 2 1000M SFP Ports Gigabit Din Rail Ethernet Switch , Din Rail Managed Switch
4 Rj45 Ports 2 1000M SFP Ports Gigabit Din Rail Ethernet Switch , Din Rail Managed Switch
4 Rj45 Ports 2 1000M SFP Ports Gigabit Din Rail Ethernet Switch , Din Rail Managed Switch
4 Rj45 Ports 2 1000M SFP Ports Gigabit Din Rail Ethernet Switch , Din Rail Managed Switch
4 Rj45 Ports 2 1000M SFP Ports Gigabit Din Rail Ethernet Switch , Din Rail Managed Switch
4 Rj45 Ports 2 1000M SFP Ports Gigabit Din Rail Ethernet Switch , Din Rail Managed Switch
Specifications
Brand Name :
Hioso
Model Number :
Foway4506TFS
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
Negotiable
Payment Terms :
TT
Supply Ability :
5000pcs/month
Delivery Time :
2-12 working days
Packaging Details :
35X25X15CM
Name :
6 ports din rali switch
Transmission :
10/100/1000M
Ports :
4 GE + 2 SFP
Support :
PPPOE
Power :
2 RPS input
Mac :
16k learning
Description

6 Ports Gigabit Din Rail Ethernet Switch 4 Rj45 Ports + 2 1000M Sfp Ports

Feature

  • 10 /100/1000M RJ45 ports and with MDI and MDI-X auto recognition
  • 1000M sfp port, maximum distance 120km
  • Provide two wide voltage 10 ~ 60 VDC input; provide reverse connection protection
  • Support 10K byte long frame data packet transmission

  • Support Web management, CLI and SNMPv1 / V2 / V3 management

  • Support VLAN, STP / RSTP fast spanning tree, trunk port aggregation, IGMP multicast

  • Support DHCP,PPPoE,ACL,LLDP

  • Support up to 10kbyte ultra long frame packet transmission, 22G backplane bandwidth

Technical Specification

Parameter Specification
Access mode 10/100/1000Mbps
Port

4 RJ45 ports: 10/100/1000M

2 1000M SFP: 1Gbps, 10/100M/1000M SFP
Conversion mode Medium conversion, storing and forwarding/straight-through
MAC address table 16K
Buffer space 2Mbit
Flow control Full duplex state: flow control; half-duplex state: back pressure mode
Delay 1us
Bit error rate <1/1000000000
MTBF 100,000 hours
LED FX Link (fiber link/action), TP1/2/3/4/5/67/8 100M/1000M (twisted pair rate) , TP1/2/3/4/5/6/7/8 Link (twisted pair link/action);P1 (power supply P1 connected) ,P2(power supply P2 connected),SYS (system)
Power 12/24/48 VDC,18 ~ 30VAC input
Power consumption 6.5W
Installation Din rail installation, wall mounting installation
Dimensions 135mm×52mm×105mm (height * width * depth)
