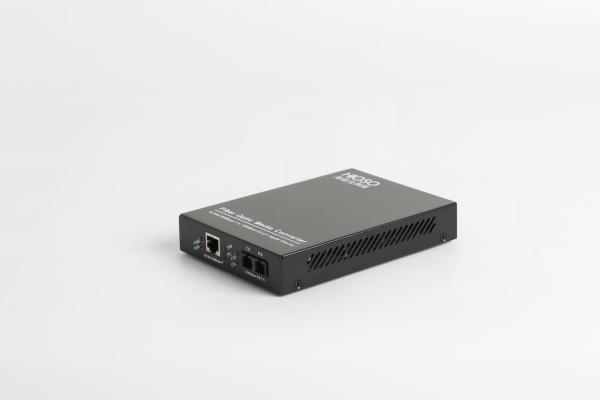

CCC Certified 1 FE 1 F Port 1550nm Fiber Media Converter With Management
CCC Certified 1 FE 1 F Port 1550nm Fiber Media Converter With Management
CCC Certified 1 FE 1 F Port 1550nm Fiber Media Converter With Management
CCC Certified 1 FE 1 F Port 1550nm Fiber Media Converter With Management
CCC Certified 1 FE 1 F Port 1550nm Fiber Media Converter With Management
CCC Certified 1 FE 1 F Port 1550nm Fiber Media Converter With Management
CCC Certified 1 FE 1 F Port 1550nm Fiber Media Converter With Management
CCC Certified 1 FE 1 F Port 1550nm Fiber Media Converter With Management
Specifications
Brand Name :
Hioso
Model Number :
FC830AGM
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
5000pcs/month
Delivery Time :
2-7 working days
Packaging Details :
35X25X10 cm
Product name :
Fiber Media Converter
Wavelength :
850nm/1310nm/1550nm
Standard :
IEEE802.3 10Base-T
Access mode :
10/100/1000Mbps
Delay :
<1us
Mac :
1K
Description

Fiber Media Converter 1 Fe + 1 Fx Port Gigabit Fast Ethernet Converter

Charater

  • 10/100/1000Mbps adaptive, for the convenience of network upgrade;
  • Efficient built-in switching core, to implement flow control and reduce broadcast packets;
  • Supporting full-duplex and half-duplex transmission modes and capable of automatic
  • negotiation;
  • Supporting automatic crossing of twisted pair ports, for the convenience of system debugging
  • and installation;

Technical Specifications

Parameters Specifications
Access mode 10/100/1000Mbps
Wavelength 850nm/1310nm/1550nm
Conversion mode Medium conversion, storing and forwarding/straight-through
MAC address table I K
Buffer space 1Mbit
Flow control Full duplex state: flow control; half-duplex state: back pressure mode
Delay <1 us
Bit error rate <1/1000000000
MTBF 100,000 hours
LED POWER (power), FX LINK/ACT (fiber link/action)
FDX (FX full-duplex mode), TP LINK/ACT (twisted pair link/action); TP 100 (twisted pair: transmission rate of 100M);FX 100 (fiber: transmission rate of 100M) (external power)
Power DC5V 1A (external), AC220V / DC48V
Power consumption <2.5W

CCC Certified 1 FE 1 F Port 1550nm Fiber Media Converter With Management

CCC Certified 1 FE 1 F Port 1550nm Fiber Media Converter With Management

Company Introduction
HiOSO Technology Co., Ltd. was founded in 2002, being dedicated to the research, production and sale of optical communication network products based on FTTH and FTTD.Our main products include EPON systems, fiber optic media converters, CWDM system equipment, digital video optical transceivers, converter racks, single/multi-mode converters, PDH and fiber modems.
