Specifications
Brand Name :
Hioso
Model Number :
FC830A
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5000pcs/month
Delivery Time :
3-7 working days
Packaging Details :
30X25X10 cm
Product name :
Fiber Media Converter
Standard :
IEEE802.3 10Base-T
Access mode :
10/100Mbps
Distance :
CAT5 : 100m
Consumption :
<2W
Mac :
1K
Description

An Intelligent 10 / 100M Adaptive Fast Ethernet Fiber Media Converter

Overview

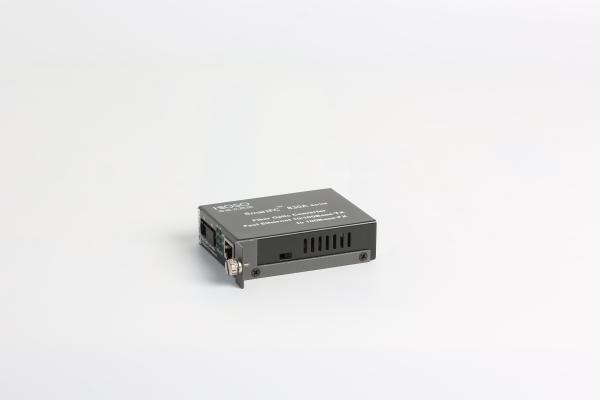

HiOSO FC830A is an intelligent 10/100M adaptive fast Ethernet fiber media converter (also called optical-to-electrical medium converter). With its unique “link failure alert” function at both optical and electrical ends, this fast Ethernet fiber converter can completely replace the fiber converter of Network Management System (NMS) type and greatly reduce system cost.


FC830A can conduct mutual conversion between 10Base-T/100Base-TX twisted pair electrical signals and 100Base-FX optical signals. FC830A extends the transmission distance of a network from 100m over copper wires to 120 Km, and uses two network transmission technologies (that is, the data link layer 2 storing & forwarding mode and the physical layer 1 straight-through mode) to implement data transmission between the optical and electrical network connection mediums. FC830A fiber converter supports transmission in dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fibers.

Technical Specification

Parameters Specifications
Access mode 10/100Mbps
Standard IEEE802.3 10Base-T Ethernet, IEEE802.3u, 100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control, IEEE802.1q VLAN, IEEE802.1p QoS, IEEE802.1d Spanning Tree
Wavelength 850nm/1310nm/1550nm
Transmission distance Dual-fiber multi-mode: 2Km; dual-fiber single-mode: 25/40/60/80/100/120Km;single-fiber single-mode: 25/40/60/80/100Km
Category-5 twisted pairs: 100m
Port One RJ45 port: Connected to STP/UTP category-5 twisted pairs
One fiber port: Multi-mode – SC or ST (fiber size: 50,62.5/125μm)
Single mode – SC/FC fiber port (fiber size: 9/125μm)
Single-fiber single-mode – SC/FC fiber port (fiber size: 9/125 μ m)
Conversion mode Medium conversion, storing and forwarding/straight-through
MAC address table I K
Buffer space 1Mbit
Flow control Full duplex state: flow control; half-duplex state: back pressure mode
Delay Storing & forwarding: 9.6 μ s; straight-through: 0.9 μ s;
Bit error rate <1/1000000000
MTBF 100,000 hours
LED POWER (power), FX LINK/ACT (fiber link/action)
FDX (FX full-duplex mode), TP LINK/ACT (twisted pair link/action)
TP 100 (twisted pair: transmission rate of 100M); FX 100 (fiber: transmission rate of 100M) (external power)
Power DC5V 1A (external), AC220 0.5A/DC-48 (built-in)
Power consumption <2W
Operating temperature -10~55°C
Operating humidity 5%~90%
Storage temperature -40~70°C
Storage humidity 5%~90% (non-condensing)
Dimensions 26mm(H)*71mm(W)*95mm(D) (height * width * depth) (external power)
26mm(H)*85mm(W)*135mm(D) (height * width * depth) (built-in power)
110mm(H)*22mm(W)*81mm(D) /(height * width * depth) (module card)
