Specifications
Place of Origin :
China, Guang dong
Brand Name :
Hioso
Model Number :
FC540B
Supply Ability :
10000pcs/month
Packaging Details :
38X24X18 CM
MOQ :
1
Price :
Negotiable
Certification :
CE, RoHS, CCC
Payment Terms :
T/T, Western Union
Delivery Time :
3-11 working days
Name :
Industrial Ethernet Media Converter
Mounting :
Din rail
RJ45 port :
2 10/100M ports
Power Consumption :
2W(Max)
Power supply :
9.6 ~ 60 VDC, 18 ~ 30VAC
Item :
Industrial Ethernet Media Converter
Description

Fiber Media Converter 2 10/100M Ports Industrial Ethernet Media Converter

Overview

Foway FC540B series is a 2 ports Ethernet media converter , which can implement mutual conversion between10Base-T/100Base-TX twisted pair electrical signal and 100Base-FX optical signal. Foway FC540B series media converter provide 2 RPS (Redundant power supply) input : 9.6 ~ 60 VDC and 18 ~ 30VAC , it can be connected to a DC or AC power supply. Besides, Foway FC540B series can work under the -40 ~ 75°C , With IP30 environmental protection grade, suitable for any industry . Foway FC540B series with the DIP switch , can enable or disable broadcast storm protection, for different industrial applications provide another flexible solution

Character

  • Provide reverse polarity protection
  • Support maximum 1552 byte long data packet transmission
  • Side of the DIP switch dial 1 is enabled broadcast storm, dial the disabled broadcast storm
  • With rugged metal housing IP30

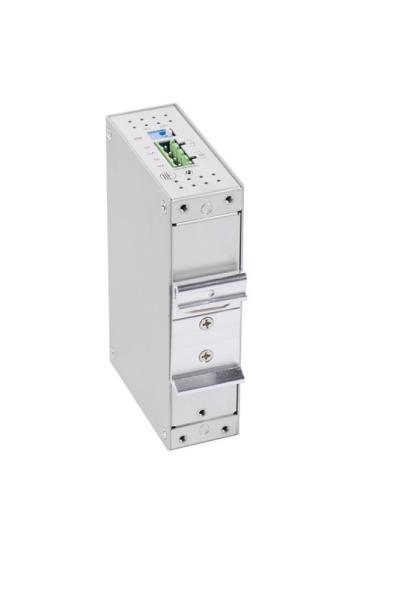

  • Support rails or distribution cabinet installation

Technical Specification

Parameters

Specifications

Access mode

10/100Mbps

Port

Two RJ45 port: Connected to STP/UTP category-5 twisted pairs
One fiber port: Multi-mode – SC or ST (fiber size: 50,62.5/125μm)
Single mode – SC/FC fiber port (fiber size: 9/125μm)
Single-fiber single-mode – SC/FC fiber port (fiber size: 9/125 μ m)

Conversion mode

Medium conversion, storing and forwarding/straight-through

MAC address table

I K

Buffer space

1Mbit

Flow control

Full duplex state: flow control; half-duplex state: back pressure mode

Delay

Storing & forwarding: 9.6 μ s; straight-through: 0.9 μ s;

Bit error rate

<1/1000000000

MTBF

100,000 hours

LED

FX LINK/ACT (fiber link/action)
SPD (twisted pair: transmission rate of 100M) TP LINK/ACT (twisted pair link/action);P1 (power supply P1) ,P2(power supply P2)

Power

12/24/48 VDC,18 ~ 30VAC input

Power consumption

2W

Operating temperature

-40~75°C

Operating humidity

5%~90%

Storage temperature

-40~85°C

Storage humidity

5%~90% (non-condensing)

Dimensions

115mm×30mm×70mm (height * width * depth)

Order information

No

Product code

NMS

Ports

Storage temperature

1

FC540B-xxxx-xx

No

2 10/100M RJ45 + 1 100M SFP port

-10~60℃

2

FC540B-xxxx-xx-T

NO

2 10/100M RJ45 + 1 100M SFP port

-40~75℃
