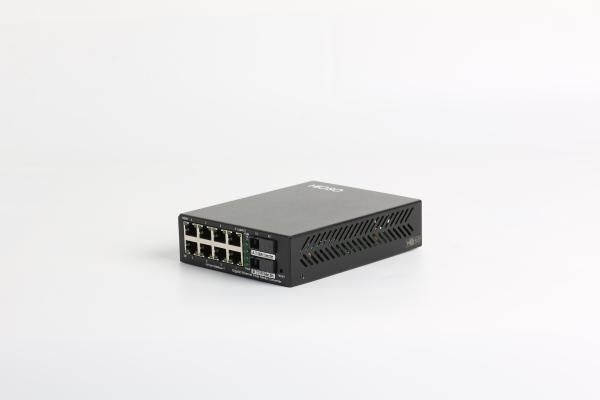

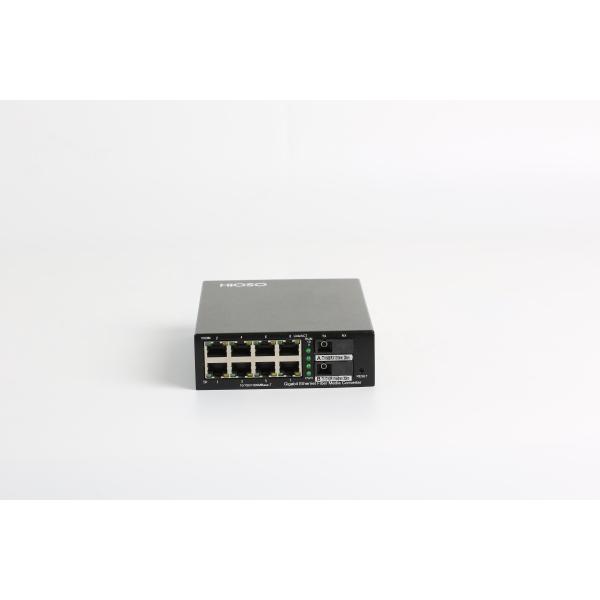

HiOSO 10/100/1000Mbps 1310nm Fiber Optic To Ethernet Converter 8 Ports
HiOSO 10/100/1000Mbps 1310nm Fiber Optic To Ethernet Converter 8 Ports
HiOSO 10/100/1000Mbps 1310nm Fiber Optic To Ethernet Converter 8 Ports
HiOSO 10/100/1000Mbps 1310nm Fiber Optic To Ethernet Converter 8 Ports
HiOSO 10/100/1000Mbps 1310nm Fiber Optic To Ethernet Converter 8 Ports
HiOSO 10/100/1000Mbps 1310nm Fiber Optic To Ethernet Converter 8 Ports
HiOSO 10/100/1000Mbps 1310nm Fiber Optic To Ethernet Converter 8 Ports
HiOSO 10/100/1000Mbps 1310nm Fiber Optic To Ethernet Converter 8 Ports
Specifications
Brand Name :
Hioso
Model Number :
FC1008R
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
6000pcs/month
Delivery Time :
3-8 working days
Packaging Details :
30X25X15 CM
Product name :
Fiber Optic Media Converter
Wavelength :
850nm/1310nm/1550nm
Function :
Ring function
Transmission distance :
cat5: 100m
Warranty :
3 Years
Delay :
<1us
Description

8 Ports Fiber Media Converter 8 1000M Rj45 Ports + 2 1000M Fx Ports

Charater

  • 8 ports support automatic adaptation to 10 / 100 / 1000Mbps environment, convenient for network upgrade
  • Gigabit optical fiber redundant ring network can be set up
  • Support 128 ring nodes
  • Support redundant ring protection (switching time < 50ms), STP / RSTP
  • Built in web management, support RSR (rapid super ring) redundant ring network technology
  • Built in efficient switching core to realize flow control and reduce broadcast packets
  • Full duplex mode and full duplex negotiation are supported

Parameters Specifications
Standard IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T ,IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.1d Spanning Tree
Wavelength 850nm/1310nm/1550nm
Transmission distance

Dual mode: 220m ( fiber size:62.5/125μm )

Dual-fiber single-mode:10/20/40/60/80/100/120Km

Single-fiber single-mode:10/20/40/60/80/100/120Km

CAT5: 100m
Port

8 RJ45 port: Connected to STP/UTP category-5 twisted pairs

2 fiber port: Multi-mode – SC (fiber size: 50,62.5/125μm)
Single mode – SC/FC fiber port (fiber size: 9/125μm)
Conversion mode Medium conversion
Delay <1us
Bit error rate <1/1000000000
MTBF 100,000 hours
Power DC 5V
Power consumption 6.5W
Dimensions 38mm(H)*118mm(W)*152mm(D)/ (height * width * depth) (external power

HiOSO 10/100/1000Mbps 1310nm Fiber Optic To Ethernet Converter 8 Ports

HiOSO 10/100/1000Mbps 1310nm Fiber Optic To Ethernet Converter 8 Ports
