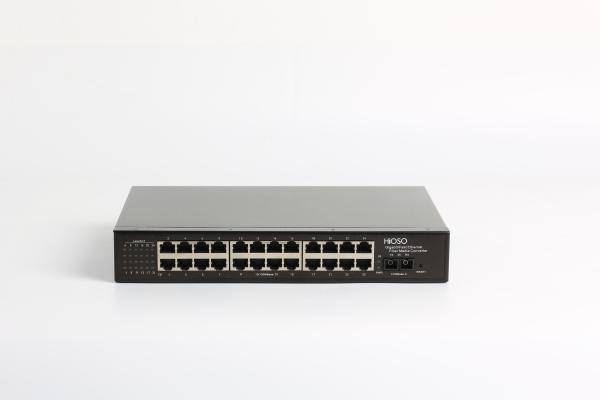

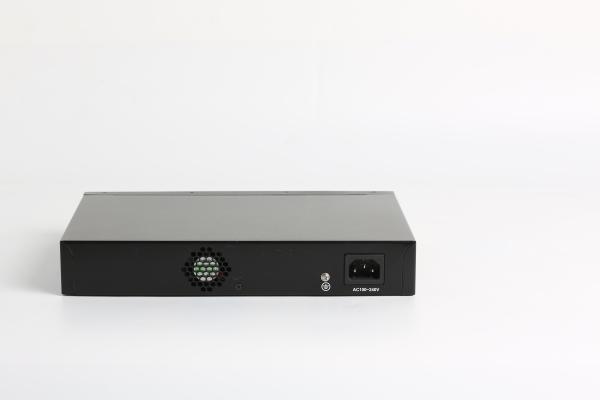

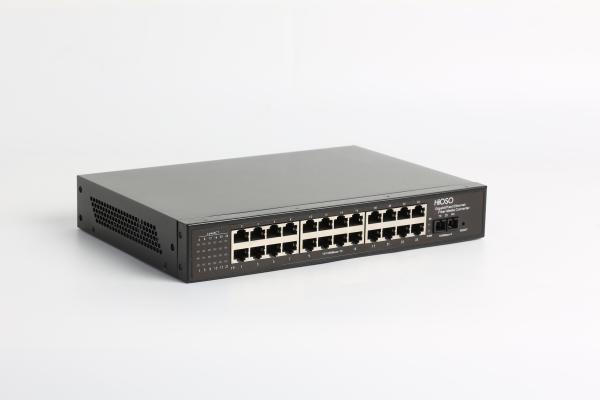

24 Ports Fiber Media Converter 24 10 / 100M rj45 + 1 1000M Fx Port
24 Ports Fiber Media Converter 24 10 / 100M rj45 + 1 1000M Fx Port
24 Ports Fiber Media Converter 24 10 / 100M rj45 + 1 1000M Fx Port
24 Ports Fiber Media Converter 24 10 / 100M rj45 + 1 1000M Fx Port
24 Ports Fiber Media Converter 24 10 / 100M rj45 + 1 1000M Fx Port
24 Ports Fiber Media Converter 24 10 / 100M rj45 + 1 1000M Fx Port
24 Ports Fiber Media Converter 24 10 / 100M rj45 + 1 1000M Fx Port
24 Ports Fiber Media Converter 24 10 / 100M rj45 + 1 1000M Fx Port
Specifications
Brand Name :
Hioso
Model Number :
FC724P
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
6000pcs/month
Delivery Time :
2-5 work days
Packaging Details :
30X25X15 CM
Product name :
24 ports fiber converter
Wavelength :
850nm/1310nm/1550nm
Distance :
CAT5 : 100m
Access mode :
10/100Mbps
Buffer space :
14M
Delay :
9.6us
Description

24 Ports Fiber Media Converter 24 10 / 100M Rj45 + 1 1000M Fx Port

Charater

  • 24 ports automatically adapt to 10Mbps and 100Mbps environment, convenient for network upgrade
  • Built in efficient switching core to realize flow control and reduce broadcast packets
  • Provide 24 independent 10 / 100Base-T standard 100m adaptive switching twisted pair ports to realize electric port backup and multi-user access
  • Full duplex mode and full duplex negotiation are supported
  • Supports automatic crossing of twisted pair interface, convenient for system debugging and installation
  • Support up to 16kbytes ultra long packet transmission, MAC address 16K, cache 4m, backplane bandwidth 13g

Technical Specification

Parameter Specifications
Access mode 10/100Mbps
Standard IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX Fast Ethernet, ,IEEE802.3z 1000Base-SX/LX Gigabit Ethernet,IEEE802.3X Flow Control
Wavelength 850nm/1310nm/1550nm
Transmission distance

Dual-fiber single-mode: 10/20/40/60/80/100/120Km
Single-fiber single-mode: 10/20/40/60/80/100/120Km

cat5:100m
Port Single mode - SC/FC fiber port (fiber size: 9/125μm)
Single-fiber single-mode - SC/FC fiber port (fiber size: 9/125μm)
Conversion mode Medium conversion, storing and forwarding mode
MAC address table I6K
Buffer space 4M
Flow control Full duplex state: flow control; half duplex state: back pressure mode
Delay 9.6us
Bit error rate <1/1000000000
MTBF 100,000 hours
LED

POWER (power),

LINK/ACT 1-24

LINK/ACT 25 (fiber connection/action)
Power DC5V/1A (external)
Power consumption 8W
Operating temperature -10~55℃
Operating humidity 5%~90%
Storage temperature -40~70℃
Storage humidity 5%~90% (non-condensing)
Dimensions 44mm(Height)*276mm(Width)*190mm(Depth) (external power)

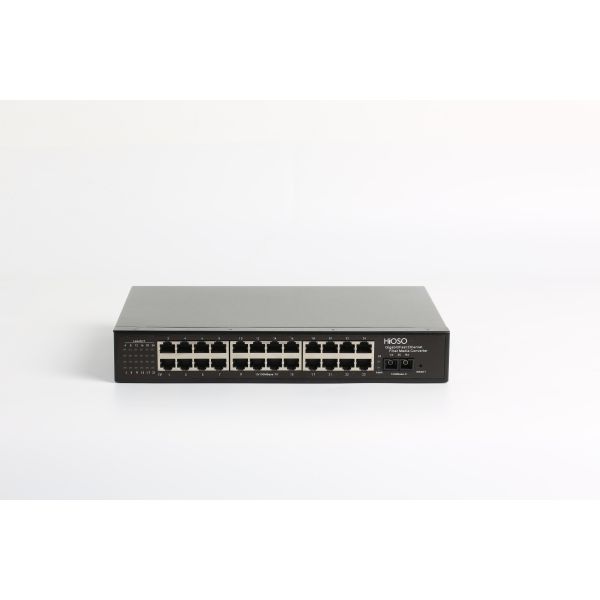

24 Ports Fiber Media Converter 24 10 / 100M rj45 + 1 1000M Fx Port

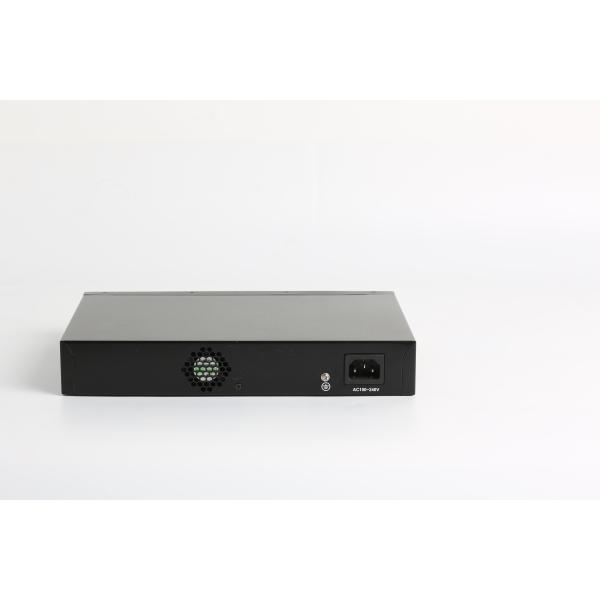

24 Ports Fiber Media Converter 24 10 / 100M rj45 + 1 1000M Fx Port
