Specifications
Brand Name :
Hioso
Model Number :
HA7204H
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
4000pcs/month
Delivery Time :
3-10 working days
Packaging Details :
30X25X15 CM
Name :
Epon onu
Application :
FTTB/FTTH/FTTO
Wavelength :
Tx 1310nm
Power supply :
12V DC
Warranty :
3 years
MAC Table :
64K
Description

4 Port Epon Onu 4 10 / 100M Ports Industrial Type ONU Compatible With Ftth Olt

Overview

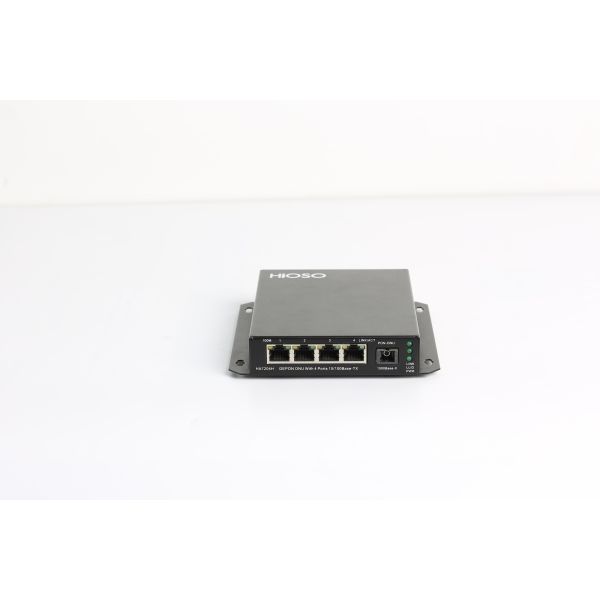

HA7204H is four 10/100M ports industrial type ONU. Its high temperature resistance feature and multiple lightning protection design guarantee high efficient operation in atrocious weather. HA7204H is mainly used in security monitoring, tunnel monitoring, mine network, and other surveillance solutions.

HA7204H ONU works with OLT and NMS management card to implement fault location and diagnosis, which makes maintenance easier.

Technical Specification

Parameter Specification
Working wavelength 1310 (TX)/1490 (RX)
Transmission distance 20KM
Optical power -1-- +4dBm
Receiving sensitivity -24dBm
Cache space 1.25MB
MTBF 100,000 hours
PON interface type SC/PC
EPON trait

Support IEEE802.3ah

Support Dynamic Bandwidth Allocation (DBA)

Support ONU auto-searching and automatic registration (real-time operation)
Standard and protocol

Support IEEE802.3, IEEE802.3u,

Support IEEE802.1q VLAN

Support IEEE802.1p QoS

IGMP Snooping V2
Management Work with OLT to configure ONU and software upgrade

Working Environment

Parameter Specification
Power DC12/1A (external power)
Power consumption 4W
Working temperature -40—75 C
Storage temperature -40—85 C
Humidity 5%--90% non-condensing
Dimension 26(length)mm * 135mm (width) * 152mm (height)

Temperature Resistance HiOSO 4 Port ONT EPON Epon , Onu Network Device

Temperature Resistance HiOSO 4 Port ONT EPON Epon , Onu Network Device

Company Introduction
HiOSO Technology Co., Ltd. was founded in 2002, being dedicated to the research, production and sale of optical communication network products based on FTTH and FTTD.Our main products include EPON systems, fiber optic media converters, CWDM system equipment, digital video optical transceivers, converter racks, single/multi-mode converters, PDH and fiber modems.
