Specifications
Brand Name :
Hioso
Model Number :
HA7204SH
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
4000pcs/month
Delivery Time :
3-10 working days
Packaging Details :
30X25X15 CM
Name :
Epon onu
Application :
FTTB/FTTH/FTTO
Wavelength :
Tx 1310nm
Power supply :
12V DC
Warranty :
3 years
MAC Table :
64K
Description

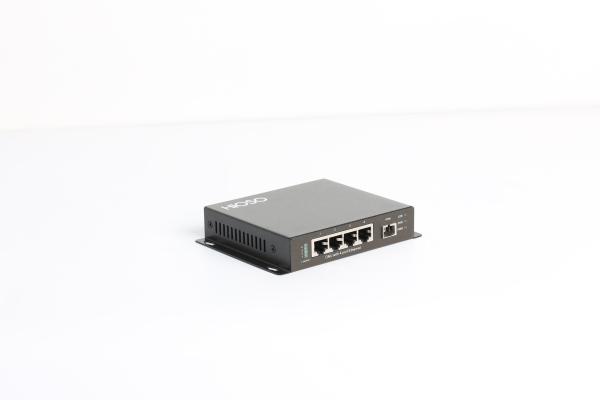

4 Port Epon Onu With 4 10 / 100M Ethernet Ports Outdoor Industrial Onu

Feature

  • Apply to IEEE802.3/802.3ah
  • Support auto discovery and auto register (real-time operation)
  • Support DBA and multi types SLA
  • Support IGMP Snooping V2 multi-broadcast function
  • Support EMI and ESD identification
  • Support VLAN
  • Support user end auto time synchronization based at SNTP
  • Support OAM and remote management
  • High temperature resistance, anti-strong lightning and anti-strong electromagnetic interference function
  • Support port speed limitation, loop detection, and port isolated function

Technical Specification

Parameter Specification
Working wavelength 1310 (TX)/1490 (RX)
Transmission distance 20KM
Optical power -1-- +4dBm
Receiving sensitivity -24dBm
Cache space 1.25MB
MTBF 100,000 hours
PON interface type SC/PC
EPON trait

Support IEEE802.3ah

Support Dynamic Bandwidth Allocation (DBA)

Support ONU auto-searching and automatic registration (real-time operation)
Standard and protocol

Support IEEE802.3, IEEE802.3u,

Support IEEE802.1q VLAN

Support IEEE802.1p QoS

IGMP Snooping V2
Management Work with OLT to configure ONU and software upgrade

Outdoor 4 10/100M Ethernet Ports Fiber Optical Equipment Tx 1310nm

Outdoor 4 10/100M Ethernet Ports Fiber Optical Equipment Tx 1310nm

FAQ

Question: Any else service

Answer: We can do OEM / ODM product for our customer, design, shipment, any service customer want can talk directly

Question: Payment terms

Answer: Trade Assurance ; T/T / Paypal / Western Union / L/C

Question: Delivery lead time

Answer: samples can be ready to ship or around 3 days, bulk order delivery do case by case
