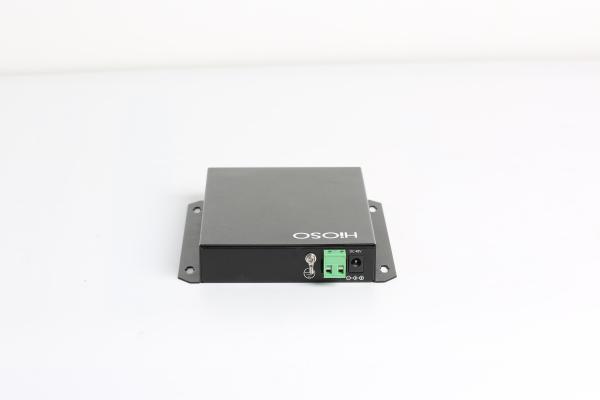

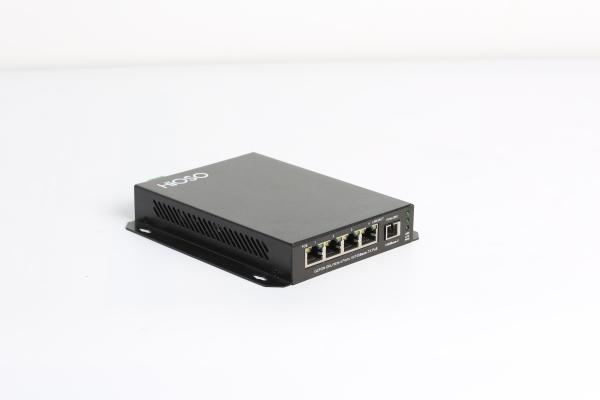

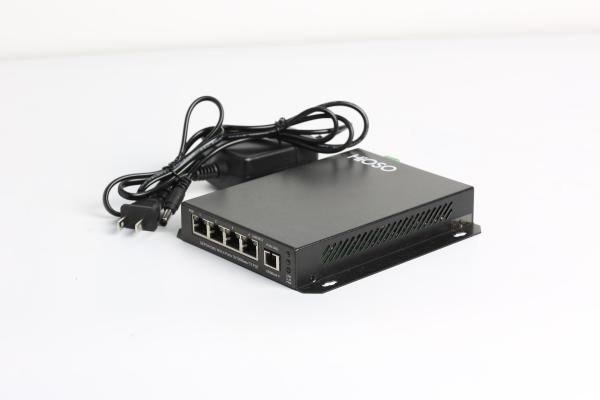

HA7204PH 10/100Mbps Auto Adapted POE Ports DC 48V EPON ONU
HA7204PH 10/100Mbps Auto Adapted POE Ports DC 48V EPON ONU
HA7204PH 10/100Mbps Auto Adapted POE Ports DC 48V EPON ONU
HA7204PH 10/100Mbps Auto Adapted POE Ports DC 48V EPON ONU
HA7204PH 10/100Mbps Auto Adapted POE Ports DC 48V EPON ONU
HA7204PH 10/100Mbps Auto Adapted POE Ports DC 48V EPON ONU
HA7204PH 10/100Mbps Auto Adapted POE Ports DC 48V EPON ONU
HA7204PH 10/100Mbps Auto Adapted POE Ports DC 48V EPON ONU
Specifications
Brand Name :
Hioso
Model Number :
HA7204PH
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
Negoitable
Payment Terms :
T/T, D/A, D/P
Supply Ability :
6000pcs / month
Delivery Time :
4-8 work days
Packaging Details :
33CM*25CM*10CM
Product name :
4 ports Epon onu
Wavelength :
Tx 1310nm, Rx 1490nm
Application :
FTTX
Color :
Black
Warranty :
3 years
Power supply :
DC 48V
Description

4 Port Poe Epon Onu 4 Fixed 10 / 100Mbps Auto Adapted POE Ports

Feature

  • Support DBA and multi types SLA
  • Support IEEE802.1D RSTP
  • Support IGMP Snooping V2 multi-broadcast function
  • Support EMI and ESD identification
  • Support powerful OAM and remote management
  • Support port speed limit, loop detection and port VLAN
  • Each PoE port supports to auto discovery the standard power receiving devices

Technical Parameter

Parameter Specification
Wavelength 1310(TX)/1490(RX)
Optical power -1~+4dBm
Receiving sensitivity -25dBm
Max transmission distance 20 km
Cache space 1.25MB
MTBF 100,000 hours
PON connector SC/PC
EPON trait

Support IEEE802.3ah

Support Dynamic Bandwidth Allocation (DBA)

Support ONU auto-searching and automatic registration (real-time operation)
Standard and Protocol

Support IEEE802.3, IEEE802.3u

IGMP Snooping V2

Support IEEE802.1q WLAN

Support IEEE802.1p QOS
POE

Supplying power port: 4 ports

Standard: IEEE802.3af 15.4W, IEEE802.3at 30W

Working mode: auto discover and power/dis-power receiving power device
Network management Cooperating with center OLT, implement management configuration and software upgrade to ONU

HA7204PH 10/100Mbps Auto Adapted POE Ports DC 48V EPON ONU

HA7204PH 10/100Mbps Auto Adapted POE Ports DC 48V EPON ONU
