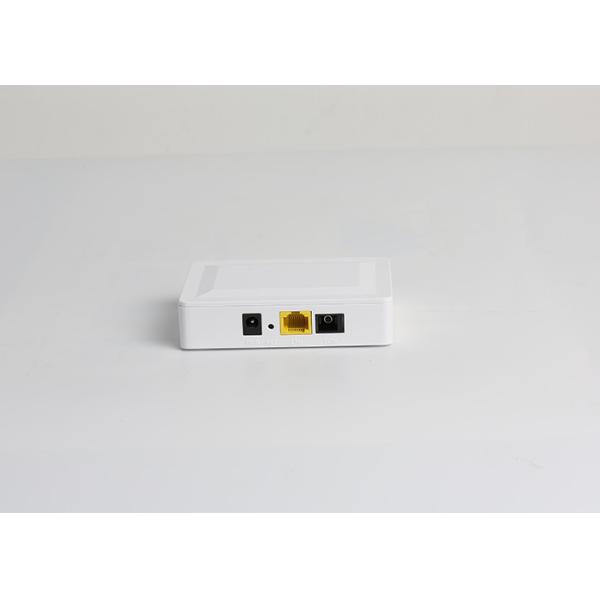

High Reliability 1 PON SC Port Gigabit XPON Fiber GPON Modem
High Reliability 1 PON SC Port Gigabit XPON Fiber GPON Modem
High Reliability 1 PON SC Port Gigabit XPON Fiber GPON Modem
High Reliability 1 PON SC Port Gigabit XPON Fiber GPON Modem
High Reliability 1 PON SC Port Gigabit XPON Fiber GPON Modem
High Reliability 1 PON SC Port Gigabit XPON Fiber GPON Modem
High Reliability 1 PON SC Port Gigabit XPON Fiber GPON Modem
High Reliability 1 PON SC Port Gigabit XPON Fiber GPON Modem
Specifications
Brand Name :
Hioso
Model Number :
HA411GSX
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
2
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
6000pcs / month
Delivery Time :
3-15 working days
Packaging Details :
25x20x12 CM
Name :
1 Port Gpon onu
Usage :
FTTH , FTTB , FTTO
Material :
plastic
Pon Port :
1 Pon port
Optical Interface :
SC/UPC Connector
Wavelength :
TX 1310nm/ RX1490nm
Description

Gpon Onu Fiber Optic Equipment 1 PON SC Port Gigabit Xpon Onu

Overview

HA411GSX is designed as HGU (Home Gateway Unit) for FTTH solutions,The carrier-class FTTH application provides data service access.

HA411GSX is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.

HA411GSX adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0 and GPON Standard of ITU-TG.984.X

Technical Specification
Technical item
Details
PON Interface
1 GPON
Receiving sensitivity: ≤-28dBm
Transmitting optical power: +1~+4dBm
Transmission distance: 20KM
Wavelength
TX: 1310nm, RX: 1490nm
Optical Interface
SC/UPC Connector
Chip Spec
RTL9601D ,CPU 300MHz,DDR2 32MB
Flash
SPI Nor Flash 16MB
LAN Interface
1x 10/100/1000Mbps auto adaptive Ethernet interface. RJ45 connector
LED
4 LED, For Status of PWR,LOS,PON,LINK/ACT
Push-Button
2,For Function of Power on/off,Reset
Operating Condition
Temperature: 0℃~+50℃
Humidity: 10%～90%(non-condensing)
Storing Condition
Temperature: -30℃~+60℃
Humidity: 10%~90%(non-condensing)
Power Supply
DC 12V/0.5A
Power Consumption
<3W
Dimension
120mmx78mmx30mm(L×W×H)
Net Weight
0.08Kg

Working Environment
Pilot
Status
Description
PWR
On
The device is powered up.
Off
The device is powered down.
PON
On
The device has registered to the PON system.
Blink
The device is registering the PON system.
Off
The device registration is incorrect.
LOS
Blink
The device doses not receive optical signals.
Off
The device has received optical signal.
LINK/ACT
On
Port is connected properly (LINK).
Blink
Port is sending or/and receiving data (ACT).
Off
Port connection exception or not connected.
