Specifications
Brand Name :
Hioso
Model Number :
HA7316G
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500pcs / month
Delivery Time :
3-7 working days
Packaging Details :
53x48x25 CM
Description

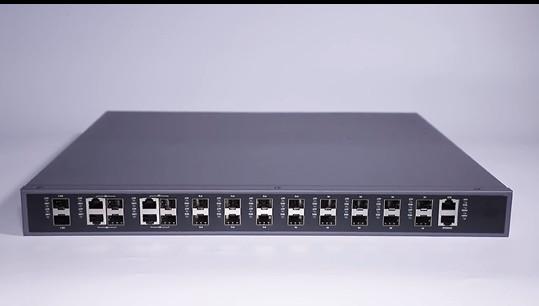

16 Port Gpon Olt Each PON Port Support Maximum Splitting Ratio 1:128

Feature

  • Support ITU-TG 984x standard
  • Supply 16 SFP GPON ports, 4 Combo uplink ports, 2 10G SFP+ uplink ports
  • Each PON port support maximum splitting ratio 1:128
  • Distance can reach 20km
  • Apply for town,village fiber network and surveillance, apply for FTTX network, to transmit IP phone, data,IPTV and other IP services access

Technical Specification

Parameter Specification
Switching Capacity 140Gbps
Forwarding Capacity(Ipv4/Ipv6) 104MPPS
Service Port

16*PON port

4*GE COMBO port, 2*10GE SFP+ port

Redundancy Design

Single power supply or dual power supply

Support AC input, or DC input

Power Supply

AC: input 90~264V 47/63Hz;

DC: input -36V~-72V;

Power Consumption ≤110W
Dimensions 440mm×44mm×380mm
Weight (Full-Loaded) ≤3kg
Environmental Requirements

Working temperature: -10°C~55°C

Storage temperature: -40°C~70°C

Relative humidity: 10%~90%, non-condensing

Parameter Specification

PON Features

ITU-TG.984.x standard

Maximum 20 Km PON transmission distance

access 128 terminals for single fiber PON

ONU terminal legitimacy certification, report illegal ONU registration

ONU batch software upgrade, fixed time upgrade, real time upgrade

PON port optical power detection

L2 Features MAC MAC Black Hole; Port MAC Limit; 64K MAC (packet exchange chip cache 2MB, external cache 720 MB )
VLAN

4K VLAN entries; Port-based/MAC-based/protocol/IP subnet-based ; QinQ and flexible QinQ (StackedVLAN)

VLAN Swap and VLAN Remark; PVLAN to realize port isolation and saving public-vlan resources; GVRP

STP STP/RSTP/MSTP; Remote loop detecting
Port

Static link aggregation and LACP(Link Aggregation Control Protocol); Port mirroring

Security

Features

User's Security

MAC address binding to the port and MAC address filtering

IEEE 802.1x and AAA/Radius authentication

Device Security

Anti-DOS attack(such as ARP, Synflood, Smurf, ICMP attack), ARP

Hierarchical management and password protection of users

Network Security

User-based MAC and ARP traffic examination

Port-based broadcast/multicast suppression and auto-shutdown risk port

DHCP Option82 and PPPoE+ upload user's physical location Plaintext authentication of OSPF, RIPv2 and BGPv4 packets and MD5; cryptograph authentication

Service Features

ACL

Standard and extended ACL

Time Range ACL

packet filtration of L2~L7 deep to 80 bytes of IP packet head

QoS

Priority remark to port or self-defined flow and provide 802.1P, DSCP priority and Remark

CAR(Committed Access Rate), Traffic Shaping and flow statistics

SP+WRR.

Congestion avoid mechanism, including Tail-Drop and WRED

IPv4

ARP Proxy, DHCP Relay, DHCP Server

Static Routing, RIPv1/v2, OSPFv2, BGPv4

Equivalent Routing, Routing Strategy

IPv6

ICMPv6, ICMPv6 Redirection, DHCPv6,ACLv6, OSPFv3, RIPng

BGP4+, Configured Tunnels, ISATAP, 6to4 Tunnels

Dual stack of IPv6 and IPv4

Multicast

IGMPv1/v2/v3, IGMPv1/v2/v3 Snooping

IGMP Fast leave, IGMP Proxy, PIM-SM/PIM-DM/PIM-SSM

PIM-SMv6, PIM-DMv6, PIM-SSMv6, MLDv2/MLDv2 Snooping

Reliability Loop Protection EAPS and GERP (recover-time <50ms), Loop back detection
Link Protection

FlexLink (recover-time <50ms), RSTP/MSTP (recover-time <1s)

LACP (recover-time <10ms), BFD

Device Protection VRRP host backup , 1+1 power hot backup
Maintenance Network Maintenance

Port real-time, utilization and transmit/receive statistic based on Telnet; RFC3176 sFlow analysis; LLDP, GPON OMCI

RFC 3164 BSD syslog Protocol; Ping and Traceroute

Device Management

CLI, Console port, Telnet and WEB

SNMPv1/v2/v3

NGBNView network management
