HA7000 OLT Chassis Card Network Management Card For 3U EPON SNMP WEB
HA7000 OLT Chassis Card Network Management Card For 3U EPON SNMP WEB
HA7000 OLT Chassis Card Network Management Card For 3U EPON SNMP WEB
HA7000 OLT Chassis Card Network Management Card For 3U EPON SNMP WEB
HA7000 OLT Chassis Card Network Management Card For 3U EPON SNMP WEB
HA7000 OLT Chassis Card Network Management Card For 3U EPON SNMP WEB
HA7000 OLT Chassis Card Network Management Card For 3U EPON SNMP WEB
HA7000 OLT Chassis Card Network Management Card For 3U EPON SNMP WEB
Specifications
Brand Name :
Hioso
Model Number :
M7000
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
USD200/PC
Payment Terms :
Western Union, T/T
Supply Ability :
2000PC/MONTH
Delivery Time :
5-10working days
Packaging Details :
60*45*34cm Carton
Name :
Management card
Application :
HA7000 EPON rack
Manage :
WEB SNMP CLI
Support :
HA7102CS,HA7104,HA7102,HA7100 cards
Description

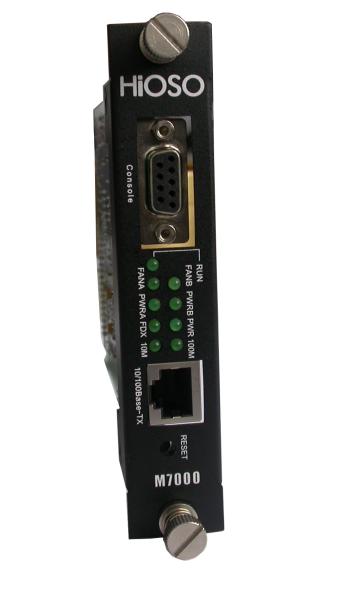

EPON NMS card for 3U EPON chassis

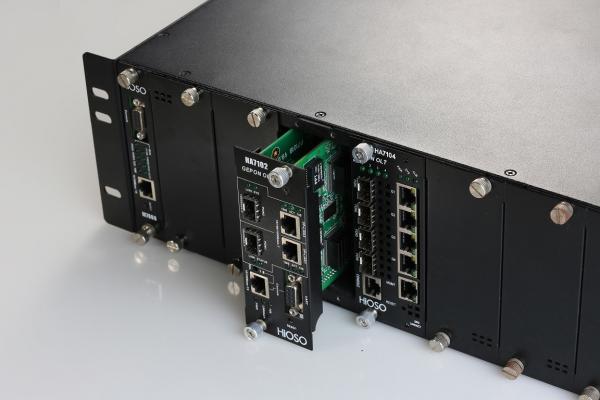

M7000 agent card works with HA7000 EPON rack, to manage the OLT cards in the rack. It supports SNMP /WEB function.

Switch

RESET reset button

Interface

Console one console port

10/100Base-TX one Ethernet port

LED

  • RUN system run LED
  • FANA Fan A status
  • FANB Fan B status
  • PWRA power A status
  • PWRB Power B status
  • PWR power supply status
  • FDX full duplex working mode
  • 100M 100M status
  • 10M 10M status

Working Environment

Power DC5V
Dimension 102mm × 147mm× 14mm
Working Temperature -10℃ ~ +55℃
Storage Temp -40℃ ~ + 70℃
Humidity 5% ~90%(non-condensing)
MTBF 100000 hours
