Onu Ftth Fiber Network Zte Chipset Gpon Onu Modem For Fiber To The Home

Description

GPON is the latest generations of access network technology. ITU-T G.984 is the standard protocol of GPON. The GPON standard differs from other PON standards in that it achieves higher bandwidth and higher efficiency using larger, variable-length packets. GPON offers efficient packaging of user traffic, with frame segmentation allowing higher quality of service (QOS) for delay-sensitive voice and video communications traffic. GPON networks provides the reliability and performance expected for business services and provides an attractive way to deliver residential services. GPON enables Fiber To The Home (FTTH) deployments economically resulting to accelerated growth worldwide.

Single-user ONU is designed for ONU in deferent FTTH solutions , The carrier-class FTTH application provides date service access. It adopts high-performance and low-consumption chips, and supports CTC 2.0 interconnection and interworking standard of China Telecom. With the help of NGBN View NMS, it can provide subscribers with abundant services, and totally meet the needs of carrier-class FTTH devices. It is designed by ZTE chipset.

GPON ONT designed for fulfilling FTTH ultra-broadband access request of home and SOHO users. It is based on the stable and mature GPON technology, which has high performance/price ratio, and the technology of layer 2 Ethernet switch as well. It is highly reliable and easy to maintain, with guaranteed QoS, and fully compliant to ITU-T G.984 GPON standards.

Feature
Router mode supports PPPoE/DHCP/ static IP
Support port-based rate limitation and bandwidth control;
In compliant with IEEE802.3ah Standard
Up to 20KM transmission Distance
Support data encryption, group broadcasting, port Vlan separation, etc.
Support Dynamic Bandwidth Allocation (DBA)
Support ONU auto-discovery/Link detection/remote upgrade of software;
Support VLAN division and user separation to avoid broadcast storm;
Support power-off alarm function ,easy for link problem detection
Support broadcasting storm resistance function
Support ACL and SNMP to configure data packet filter flexibly
Specialized design for system breakdown prevention to maintain stable system
Support software online upgrading EMS network management based on SNMP ,convenient for maintenance

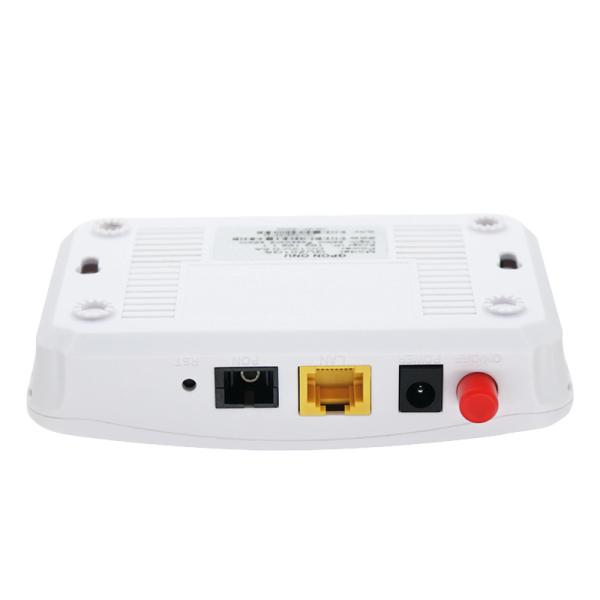

Port features:

• 1 GPON port (uplink 1.25Gbps, downlink 2.5Gbps)
• 1 10/100/1000M port

Physical features:

• Power supply: 12VDC
• Power consumption: 4W
• Dimension: 115mm*30mm*90mm(W*H*D)
• Net weight < 0.4Kg
• Temperature:
• Working temperature:0～55℃
• Storage temperature: -30～60℃
• Relative humidity: 10～90% (non-condensing)
