Compact GEPON OLT 16 Port GTGH Board With Gpon Olt Sfp C++ For Zte Zxa10 OLT C300 C320
Compact GEPON OLT 16 Port GTGH Board With Gpon Olt Sfp C++ For Zte Zxa10 OLT C300 C320
Compact GEPON OLT 16 Port GTGH Board With Gpon Olt Sfp C++ For Zte Zxa10 OLT C300 C320
Compact GEPON OLT 16 Port GTGH Board With Gpon Olt Sfp C++ For Zte Zxa10 OLT C300 C320
Compact GEPON OLT 16 Port GTGH Board With Gpon Olt Sfp C++ For Zte Zxa10 OLT C300 C320
Compact GEPON OLT 16 Port GTGH Board With Gpon Olt Sfp C++ For Zte Zxa10 OLT C300 C320
Compact GEPON OLT 16 Port GTGH Board With Gpon Olt Sfp C++ For Zte Zxa10 OLT C300 C320
Compact GEPON OLT 16 Port GTGH Board With Gpon Olt Sfp C++ For Zte Zxa10 OLT C300 C320
Specifications
Brand Name :
ZTE
Model Number :
GTGH
Certification :
ISO9001
Place of Origin :
China
MOQ :
1Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability :
500Set/Month
Delivery Time :
3-6 work days
Packaging Details :
carton box
Product name :
Zte Olt Broad
Pon Port :
16
Management mode :
NMS
Wavelength :
RX 1310nm,TX 1490nm
Weight :
1.5kg
Operating temperature :
0°C～50°C
Material :
Metal
Application :
FTTH FTTB FTTX Network
Description

16 Ports GPON OLT GTGH Board with Gpon Olt Sfp C++ For Zte Zxa10 OLT C300 C320

Description

GTGH full equipped with 16 B+ light module, is the 16 port OLT GPON interface board, and the terminal ONT device to achieve the GPON service access.

You can also choose to configure 16 C+ or C++ light modules!

Principle Introduction

Control module to complete the single board software loading, operation control, management and other functions.

Exchange module to achieve the convergence of 16 GPON port signals.

Interface module to realize the mutual conversion between GPON optical signal and Ethernet message.

The power supply module provides a working power supply for each function module in a single board.

The clock module provides a working clock for each function module in a single board.

Optical module introduction

Form:SFP/ESFP

Rate:1.25Gb/s

Optical connector type:SC/PC

Fiber type: single mode

Maximum light splitting ratio: 1:128


Characteristics

ZTE OLT GPON EPON corresponding service board series:
Model Description Apply to OLT model
ETTO Epon Bussiness Broad 8ports contains 8pcs SFPs modules Px20+ 10G
GTGO GPON Business board 8ports contains 8pcs SFPs modules C+/ C++ C300 C320
GTGH GPON Business Board 16ports contains 16pcs SFPs modules C+/ C++
ETGOD EPON business board 8ports contains 8pcs SFPs modules PX20+
ETGHDEPON business board 16ports contains 16pcs SFPs modules PX20+

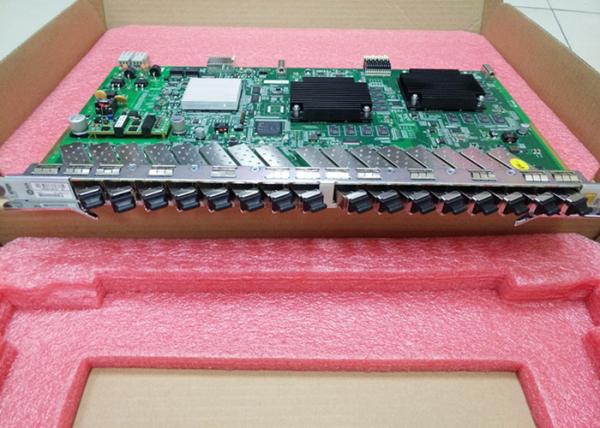

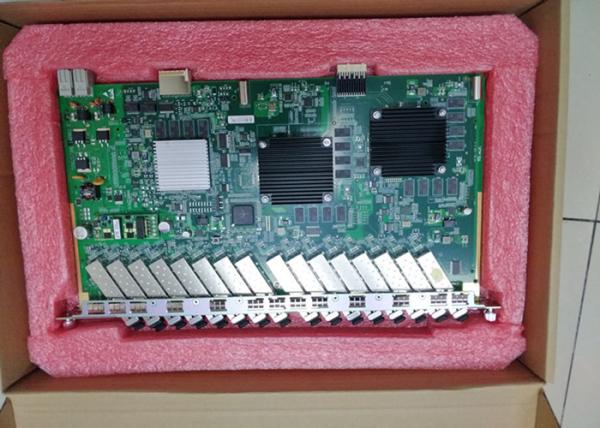

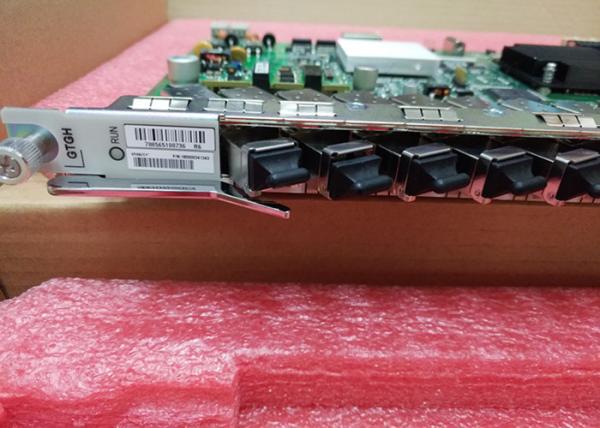

Product Pictures

Compact GEPON OLT 16 Port GTGH Board With Gpon Olt Sfp C++ For Zte Zxa10 OLT C300 C320

FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-6 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
