Gpon Olt Device Huawei MA5683T 10G Gpon Olt With 2*SCUN+2*GICF+2*PRTE+6 Broad Slots

Description

The SmartAX MA5683T is a GPON optical access product. It provides the voice, data, and video services that feature large capacity, high rate, and high bandwidth. To be specific:
lThe MA5683T functions as an optical line terminal (OLT) in a GPON network to work with the optical network unit (ONU) and optical network terminal (ONT).
lThe MA5683T supports rich network applications, such as FTTH, FTTB, and FTTC.
lThe MA5683Tmeets the network requirements of base station transmission, IP private line interconnection, and multi-ISP wholesale.
lThe MA5683T supports the point-to-point (P2P) FE optical access. By cooperating with the ONT, the MA5680T provides users with the P2P FTTH access.

Specifation

Confituration

Control Boards : H801SCUN Board

It is the core of the system control and service switching and aggregation. The board can also function as the management and control core of the integrated network management system (NMS). It communicates with service boards about the key management and control information through the master/slave serial port and inband GE/10GE channel. In this manner, the board configures, manages, and controls the device, and also implements the simple route protocol functions.

The H801SCUN board supports the following functions:

· System control and management unit;

· Local and remote maintenance;

· Active/standby switchover;

· Load balancing;

· GE or 10GE channel to the service board;

· Environmental monitoring parameters;

· Four SFP GE ports for upstream transmission or cascading.

Upstream Interface Boards : H801GICF Board

The H801GICF board is a 2-port GE Optical Interface Card, providing upstream or cascading optical ports.

The H801GICF board supports the following functions:

· Upstream transmission or cascading

· Two SFP GE ports

Power Boards : H801PRTE Board

The H801PRTE is a Connect Power Board. It leads in the -48 V DC power supply for the device.

The H801PRTE board supports the following functions:

· One -48 V power input;

· Filtering and current-limiting for the power input port;

· Under-voltage detection, detection of whether the input power exists, and fault detection;

· Combined reporting of the protection alarm and board online signal;

· ALARM indicator.

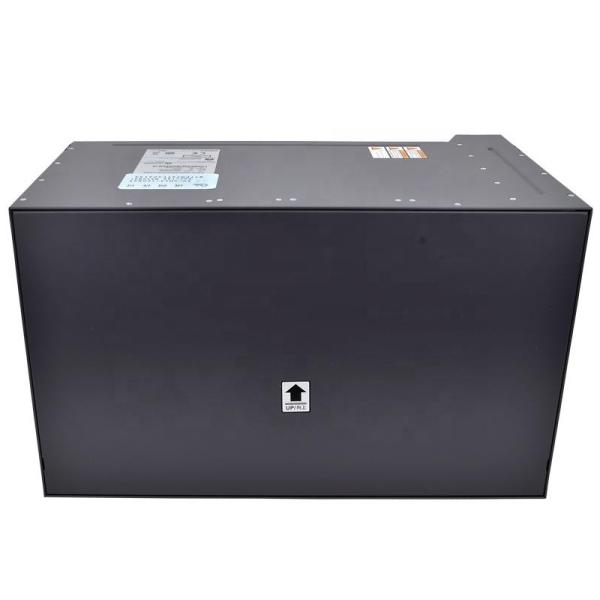

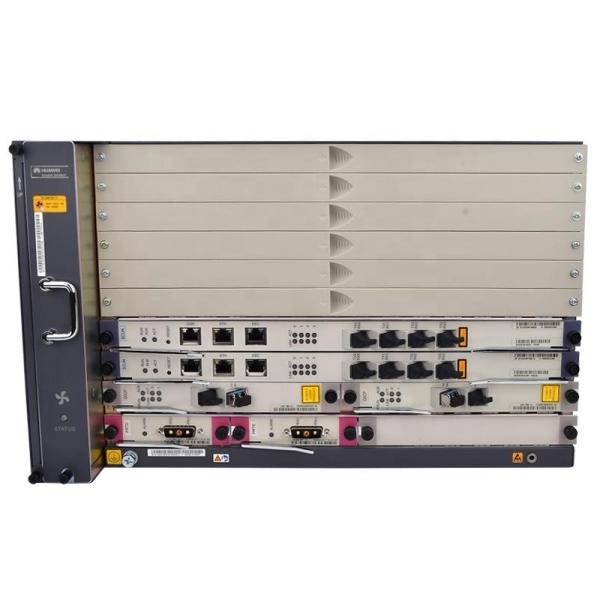

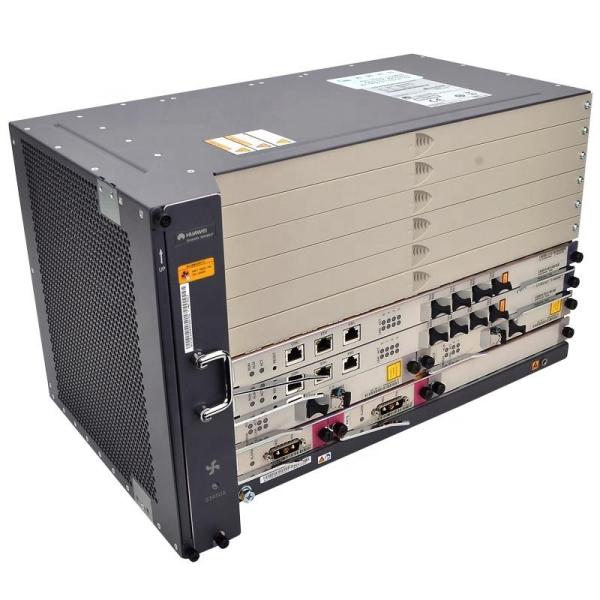

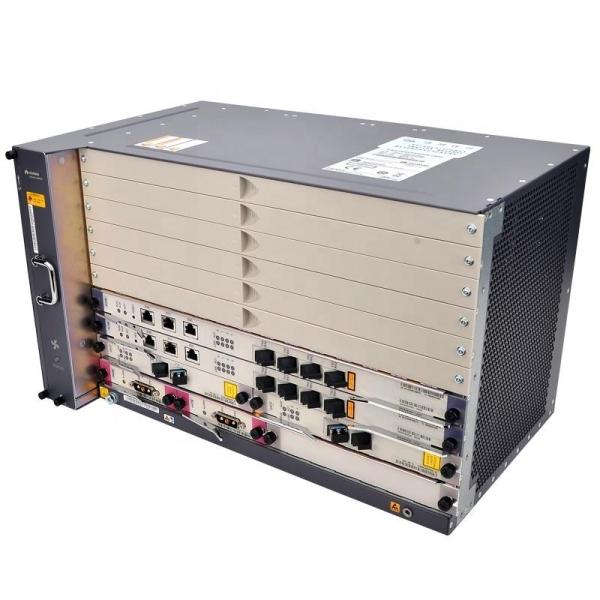

Product Pictures
