8 Port Gpon Olt Service Board EPBD With PX20+ For Huwei MA5680T MA5683T MA5608T
8 Port Gpon Olt Service Board EPBD With PX20+ For Huwei MA5680T MA5683T MA5608T
8 Port Gpon Olt Service Board EPBD With PX20+ For Huwei MA5680T MA5683T MA5608T
8 Port Gpon Olt Service Board EPBD With PX20+ For Huwei MA5680T MA5683T MA5608T
8 Port Gpon Olt Service Board EPBD With PX20+ For Huwei MA5680T MA5683T MA5608T
8 Port Gpon Olt Service Board EPBD With PX20+ For Huwei MA5680T MA5683T MA5608T
8 Port Gpon Olt Service Board EPBD With PX20+ For Huwei MA5680T MA5683T MA5608T
8 Port Gpon Olt Service Board EPBD With PX20+ For Huwei MA5680T MA5683T MA5608T
Specifications
Brand Name :
Huwei
Model Number :
EPBD
Certification :
ISO9001
Place of Origin :
China
MOQ :
1Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability :
500Set/Month
Delivery Time :
3-6 work days
Packaging Details :
carton box
Product name :
Huwei Olt Broad
Pon Port :
8
Management mode :
NMS
Wavelength :
RX 1310nm,TX 1490nm
Weight :
1.5kg
Operating temperature :
0°C～50°C
Material :
Metal
Application :
FTTH FTTB FTTX Network
Description

8 Ports OLT EPON Service Board EPBD With PX20+ For Huwei MA5680T MA5683T MA5608T

Description

EPBD full equipped with 8 light module, is the 8 port OLT EPON interface board, and the terminal ONT device to achieve the EPON service access.

Principle Introduction

Control module to complete the single board software loading, operation control, management and other functions.

Exchange module to achieve the convergence of 8 EPON port signals.

Interface module to realize the mutual conversion between EPON optical signal and Ethernet message.

The power supply module provides a working power supply for each function module in a single board.

The clock module provides a working clock for each function module in a single board.

Optical module introduction

Form:SFP/ESFP

Rate:1.25Gb/s

Optical connector type:SC/PC

Fiber type: single mode

Maximum light splitting ratio: 1:64


Characteristics

SERVICE BOARD
PORT NO
PORT TYPE
MODULE
PON TYPE
EPBD
8
GE
PX20+/PX20++
EPON

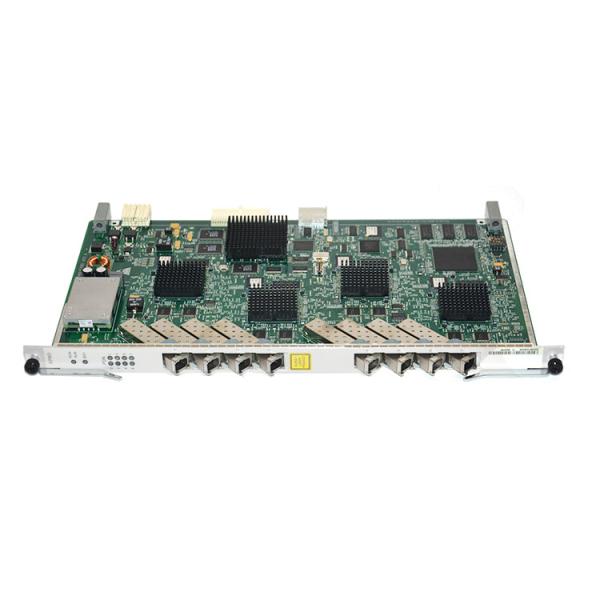

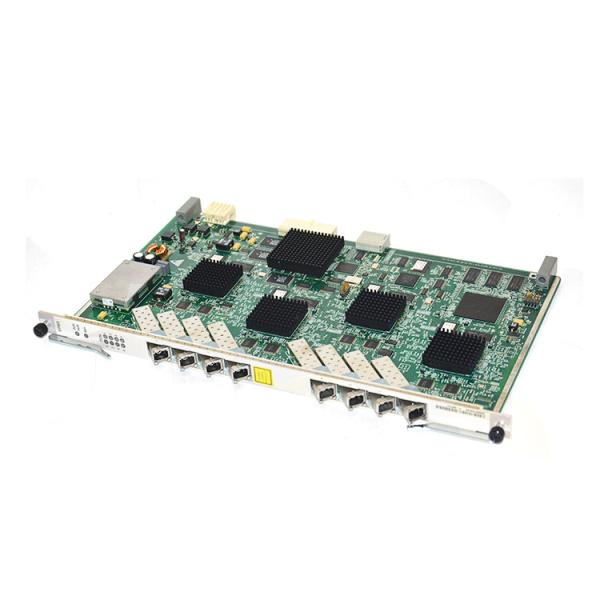

Product Pictures

8 Port Gpon Olt Service Board EPBD With PX20+ For Huwei MA5680T MA5683T MA5608T

FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-6 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
