Specifications
Brand Name :
Fibery
Model Number :
FYOR20
Certification :
ISO9001
Place of Origin :
China
MOQ :
1SET
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability :
100SET/Month
Delivery Time :
4-6 work days
Packaging Details :
carton box
Product name :
Mini Optical Receiver
Optical connector :
SC/APC,SC/UPC
Output level :
>80dBuV
Wavelength :
1490/1310/1550nm
Input power :
18~0dBm
RF Frequency range :
40~862&1006MHz
RF output port :
1&2
Applications :
FTTP,FTTH
Description

Ftth Catv AGC Wdm Mini Optical Receiver 2 Rf Output Ports For GEPON System

Description

OR20 style CATV FTTH AGC wdm mini optical receiver, 2 output ports fiber optical receiver is home-based optical receiver catering to the ultimate goal of development of optical access and suitable for FTTH(fiber to the home) optical fiber network users access to the end. Analog or digital signal to home can be used together with the ONU or EOC achieving triple play.

Parameter

Input optical power 0dBm~-10dBm(Analog signal) AGC Control range 0dBm~-9dBm
&0dBm~-18dBm(Digital signal) CTB(note) ≥65dB
optical reflection loss ＞45 dB CSO(note) ≥62dB
Optical connector form FC/APC or SC/APC or FC/PC or SC/PC Host voltage DC5V
Frequency Range 45~1006MHz Adapter voltage AC90V ~145V&AC145V ~ 265V or custom
In-band flatness ±1dB@45~1006MHz Infeed voltage DC5V
RF output reflection ≥16dB@ 47~550MH ; ≥14dB@1006MHz Operating temperature -20℃ ~+55℃
Gain adjustment range 0-18dB power <1W
Output level (78~80)dBuV(AGC:@-9~+0dBm,Pin=0dBm) Product net size 129×79×26mm
Output port number 1or 2 10 pack sizes 313×245×83mm
RF output impedance 75Ω FCL package size (100pcs) 500×440×345mm
Carrier to Noise Ratio (Note) ≥51dB Product net weight 0.17kg

Product Feature

Ftth Catv AGC Wdm Mini Fiber Optic Receiver2 Rf Output Ports For GEPON System

  • Adopts WDM technology, single fiber to the home(1490/1310/1550nm) triple-play application can be realized.
  • AGC control to guarantee relative stable RF input in different RF in. FTTH Optical Node FTTH Optical Node
  • Small housing suitable for home use.
  • 12V~15VDC power supply. FTTH Optical Node
  • Good parameter, but low power consumption

Application

1. CATV FTTH
2. Integration of three networks
3. FTTH PON

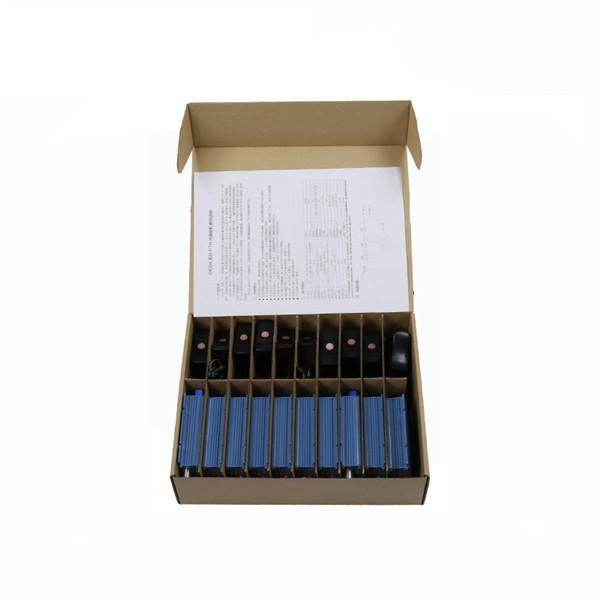

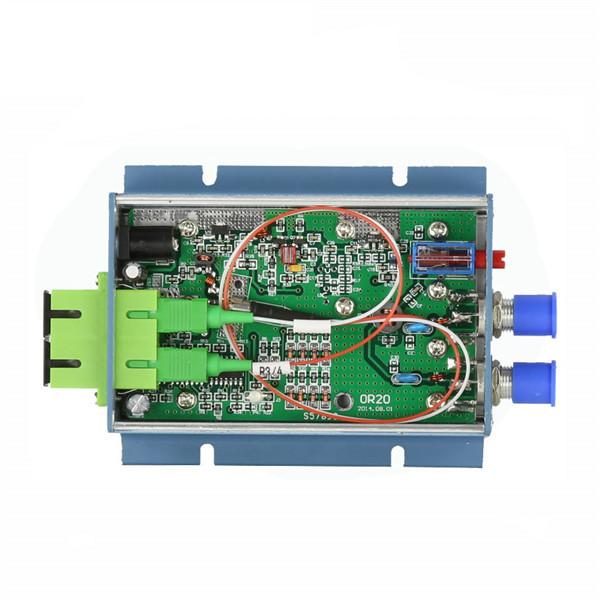

Product Pictures

Ftth Catv AGC Wdm Mini Fiber Optic Receiver2 Rf Output Ports For GEPON System
