3 Channel 1270-1610nm FWDM Module T1550nm R1310nm/1490nm Fiber Optical Filter
3 Channel 1270-1610nm FWDM Module T1550nm R1310nm/1490nm Fiber Optical Filter
3 Channel 1270-1610nm FWDM Module T1550nm R1310nm/1490nm Fiber Optical Filter
3 Channel 1270-1610nm FWDM Module T1550nm R1310nm/1490nm Fiber Optical Filter
Specifications
Brand Name :
Fibery
Model Number :
FYFWDM02
Place of Origin :
China
MOQ :
1SET
Payment Terms :
T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability :
5000Unit/Month
Delivery Time :
3-6 work days
Packaging Details :
pvc box+outer carton
Product name :
Optical Filter FWDM
Wavelength :
1270~1620nm
Connector Type :
COM,1550:SC/APC,1310/1490:SC/UPC
Pass Channel Insertion loss :
on Loss: ≤0.80 dB
PDL :
<0.1dB
Return Loss :
>50 dB
Fiber type :
Corning Single mode SMF-28
Fiber Length :
Customized
Warranty :
1 Year
Application :
FTTH FTTB FTTX Network,Telecommunication,WDM Solution,CATV/HFC/PON
Price :
Negotiable
Description

3 channels 1270-1610nm FWDM Module T1550nm R1310nm/1490nm Fiber Optical Filter

De​scription

FTTX Filter WDM module extensively used in EDFA, Raman amplifiers, WDM networks and fiber optics instrumentation is based on Thin Film Filter (TFF) technology. The device combines or separates light at different wavelengths in a wide wavelength range. It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network upgrade and expansion, or introduce new comprehensive business etc.

We provide filter-based wavelength division multiplexing (WDM) filter devices that are customized to the particular wavelength bands for your special applications. As you might know, GEPON system itself works on 1310/1490, so CATV signal here is delivered over same fiber using 1550nm, and FWDM is a place where all this get‘s "mixed".

Feature

Low Insertion Loss

High channel Isolation

Wide pass band

High reliability and stability

Epoxy free on optical path

Specification

Parameters 1×2 FWDM Device
Operating Wavelength Range (nm) 1260-1620
Pass wavelengths band[λc] (nm) 1520-1600
Reflection wavelengths band[λc] (nm) 1310±50/1490+/-10
Pass Channel Insertion Loss (dB) ≤0.80
Reflection Channel Insertion Loss (dB) ≤0.70
Channel Ripple (dB) ＜0.3

Isolation (dB)

 Pass Channel ＞30
Reflection Channel ＞20
Insertion Loss Temperature Sensitivity (dB/℃) ＜0.005
Polariation Dependent Loss (dB) ＜0.1
Polarization Mode Dispersion (ps) ＜0.1
Return Loss (dB) ＞50
Directivity (dB) ＞55
Connector Type COM,1550:SC/APC 1310/1490:SC/UPC
Fiber Length (m) 1.0
Fiber type Corning Single mode SMF-28
Maximum Optical Power (mw) 300
Operating Temperature (℃) -20～+75
Storage Temperature (℃) -40～+85
Package Dimension (mm) 90*20*10



Application

Line monitoring

Telecom munication

Cellular Application

Fiber optical Amplifier

Access Network

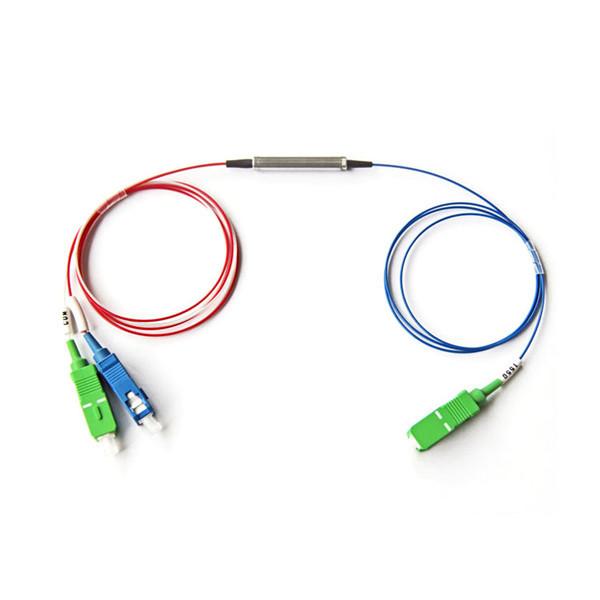

Product pictures

3 Channel 1270-1610nm FWDM Module T1550nm R1310nm/1490nm Fiber Optical Filter3 Channel 1270-1610nm FWDM Module T1550nm R1310nm/1490nm Fiber Optical Filter3 Channel 1270-1610nm FWDM Module T1550nm R1310nm/1490nm Fiber Optical Filter

Payment terms

Payment terms
1) Accepted small order,OEM,etc.
2) Ordinary delivery time: 3-7 days, according to order quantity.
3) Ready to shipping by sea ,DHL , Fedex, EMS, as soon as we receive payment
4) Accept T/T 100% advance. Western Union, PayPal.
5) Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility

Shipping

3 Channel 1270-1610nm FWDM Module T1550nm R1310nm/1490nm Fiber Optical Filter

FAQ

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-6 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
