1x9 Fiber Optic Transceiver 1.25G Bidi SC ST For Giga Media Converter
1x9 Fiber Optic Transceiver 1.25G Bidi SC ST For Giga Media Converter
1x9 Fiber Optic Transceiver 1.25G Bidi SC ST For Giga Media Converter
1x9 Fiber Optic Transceiver 1.25G Bidi SC ST For Giga Media Converter
1x9 Fiber Optic Transceiver 1.25G Bidi SC ST For Giga Media Converter
1x9 Fiber Optic Transceiver 1.25G Bidi SC ST For Giga Media Converter
1x9 Fiber Optic Transceiver 1.25G Bidi SC ST For Giga Media Converter
1x9 Fiber Optic Transceiver 1.25G Bidi SC ST For Giga Media Converter
Specifications
Brand Name :
Fibery
Model Number :
FYSFP1X9
Certification :
ISO9001
Place of Origin :
China
MOQ :
1Pair
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability :
50000Unit/Month
Delivery Time :
3-6 work days
Packaging Details :
pvc box+outer carton
Product name :
fiber optic transceiver
Fiber type :
Single Fiber Single Mode
Interface :
SC ST
Wavelength :
1310/1550nm
Distance :
100m to 120km
Data rate :
1.25G
Operating temperature :
Commerical:0 to 70 °C Industrial:-40 to 85 °C
Supply Voltage :
3.3V/5V
Warranty :
1 Years
Application :
Gigabit Ethernet,Fiber Channel,Switch to Switch interface
Description

Fiber Optic Transceiver 1.25G Bidi SC ST 1x9 Module For Giga Media Converter

Description

1x9 optical transceiver is designed for use in 0~2.67Gbps data links. It provide the SC/FC/ST optical port that is compatible with the industry standard connector. Both the transmitter and the receiver are packaged together with a top plastic cover and bottom shield.

Feature

Single Fiber Bi-directional Transmission

Standard 1×9 Footprint

Single SC, FC or ST Connector Optional

Single +3.3V or +5V Power Supply

PECL Differential Inputs and Outputs

PECL/LVPECL or TTL/LVTTL Signal Detection Output Alternative

Operating case temperature:
Commerical:0 to 70 °C Industrial:-40 to 85 °C

Absolute Maximum Ratings

Parameter Symbol Min. Max. Unit Note
Supply Voltage Vcc -0.5 4.0 V
Storage Temperature -40 85 °C
Relative Humidity 5 85 %

Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.

OPTICAL CHARACTERISTICS

l )Transmitter

arameter Symbol Min. Typ Max. Unit Note
Operating Wavelength λC 1270 1310 1360 nm
1470 1490 1510
Ave. output power (Enabled) Po -8 -4 dBm 1
Extinction Ratio ER 9 dB 1
RMS spectral width Δλ 4 nm
Rise/Fall time (20%~80%) Tr/Tf 0.26 ps 2
Output Eye Mask Compliant with IEEE802.3 z (class 1 laser safety)

Note (1): Measure at 2^23-1 NRZ PRBS pattern

Note (2): Transmitter eye mask definition

2)Receiver

Parameter Symbol Min. Typ Max. Unit Note
Operating Wavelength 1470 1490 1510 nm
1270 1310 1360
Sensitivity Psen -22 dBm 1
Min. overload Pimax -3 dBm
LOS Assert Pa -35 dBm
LOS De-assert Pd -23 dBm 2
LOS Hysteresis Pd-Pa 0.5 6 dB

Note (1): Measured with Light source 1490nm(1310nm), ER=9dB; BER =<10^-12 @PRBS=2^23-1 NRZ.

Note (2): When LOS de-asserted, the RX data+/- output is signal output.

Ordering Information

1x9 Module BIDI,LC,Tx1310/Rx1550nm 1.25Gbps, 20km, with DDM
1x9 Module BIDI,LC,Tx1550/Rx1310nm 1.25Gbps, 20km, with DDM
1x9 Module BIDI,LC,Tx1310/Rx1550nm 1.25Gbps, 20km, without DDM
1x9 Module BIDI,LC,Tx1550/Rx1310nm 1.25Gbps, 20km, without DDM

Applications
1. Gigabit Ethernet
2. Fiber Channel
3. Switch to Switch interface
4. Switched backplane applications
5. Router/Server interface
6. Other optical transmission systems

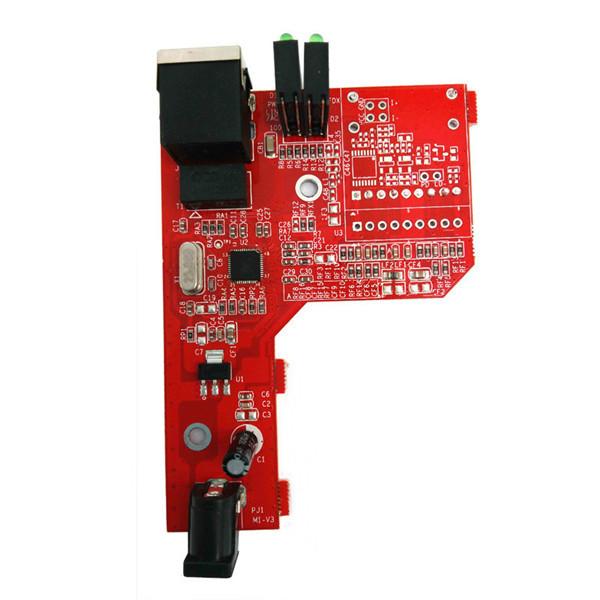

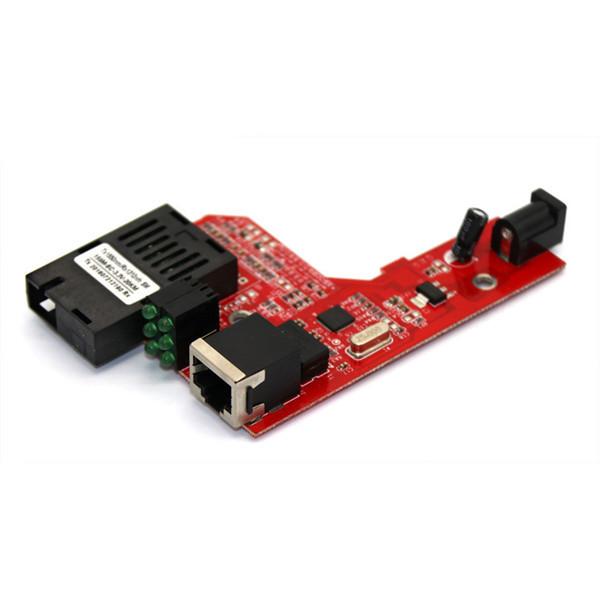

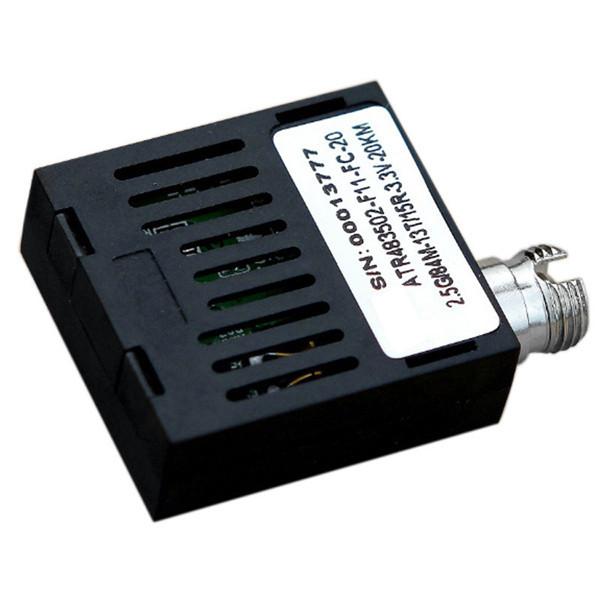

Product Pictures
1x9 Fiber Optic Transceiver 1.25G Bidi SC ST For Giga Media Converter
1x9 Fiber Optic Transceiver 1.25G Bidi SC ST For Giga Media Converter
1x9 Fiber Optic Transceiver 1.25G Bidi SC ST For Giga Media Converter
Factory Image
1x9 Fiber Optic Transceiver 1.25G Bidi SC ST For Giga Media Converter
Shipping
1x9 Fiber Optic Transceiver 1.25G Bidi SC ST For Giga Media Converter

FAQ

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-6 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
