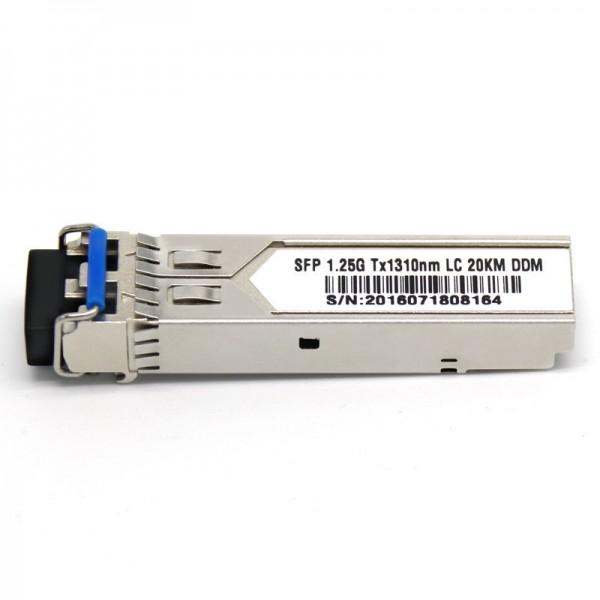

1.25G Sfp Modules 1310nm Dual Fiber Optic Transceiver Compatible With Cisco Huawei HP
1.25G Sfp Modules 1310nm Dual Fiber Optic Transceiver Compatible With Cisco Huawei HP
1.25G Sfp Modules 1310nm Dual Fiber Optic Transceiver Compatible With Cisco Huawei HP
1.25G Sfp Modules 1310nm Dual Fiber Optic Transceiver Compatible With Cisco Huawei HP
1.25G Sfp Modules 1310nm Dual Fiber Optic Transceiver Compatible With Cisco Huawei HP
1.25G Sfp Modules 1310nm Dual Fiber Optic Transceiver Compatible With Cisco Huawei HP
1.25G Sfp Modules 1310nm Dual Fiber Optic Transceiver Compatible With Cisco Huawei HP
1.25G Sfp Modules 1310nm Dual Fiber Optic Transceiver Compatible With Cisco Huawei HP
Specifications
Brand Name :
Fibery
Model Number :
FYSFP125D
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability :
20000Pcs/Month
Delivery Time :
4-6 work days
Packaging Details :
pvc box ,or customized
Product name :
Fiber Optical Transceiver
Fiber type :
Dual Fiber
Fiber Port :
Lc,Sc,Optional
Date rate :
1.25Gbps
Distance :
100m to 120km
Wavelength :
1310 nm
Power supply :
+3.3V
Weight :
0.024kg
Warranty :
3 Years
Operating temperature :
0~70°C
Description
1.25G Sfp Modules 1310nm Dual Fiber Optical Transceiver Compatible with Cisco Huawei
Description
The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.
Specification
1. Dual data-rate of 1.25Gbps/1.063Gbps operation
2. 1310nm FP laser and PIN photodetector for 10/20/40km transmission
3. Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
4. Digital Diagnostic Monitoring:
5. Internal Calibration or External Calibration
6. Compatible with SONET OC-24-LR-1
7. Operating case temperature: Standard: 0 to +70°C, Industrial: -40 to +85°C
8. Compatible with RoHS
9. +3.3V single power supply

Feature
Multi-sourced SFP package with dual LC/PC receptacles;
Single mode dual fibers transmission
Up to 10~80Km with 9/125μm SMF;
AC coupled for Rx and Tx side
Two temperature ranges: 0°C to +70°C for commercial level, -40°C to +85°C for industrial level;
operates at data rate 1.25Gbps;
Complies with MIL-STD-883/GR-468
Complies with lots of brands of switch such as cisco h3c…….
Can be with or without DDM
Data Rate 1.25G Fiber Mode Single Mode Fiber (SMF)
Types of Interface LC Types of Laser FP
Operating Temperature Standard 0~70°C Operating Humidity 0%~90% RH (non condensing)
Transmission distance 10/20/40km Modes of Communications Duplex
Wavelength 1310nm Hot Pluggable Times 200
Receiver Sensitivity <-23dBm Extinction Ratio >9dB
Saturated Optical Power -3dBm Power Consumption <3W
Weight 0.024kg Power Supply +3.3V
Hot Pluggable Times 200 Average Output Power -9 ~ -3dBm

Product parameters:
Part No. Wavelength Connector Temp.

TX Power

(dBm)

RX Sens

(Max.) (dBm)

 DDMI Distance
FYSFP3X24-F11LC-10 T 1310FP/rx 1100~1610 LC -20 to 70 -9 to-1 -22 F 10km
FYSFP3X24-F11LC-20 T 1310FP/rx 1100~1610 LC -20 to 70 -9 to-0 -23 F 20km
FYSFP5X24-D12LC-40 T 1550DFP /R 1100~1610 LC -20 to 70 -5~0 -24 T 40Km
FYSFP6124-C12LC-80 T 1610 CWDM/ R 1100~1610 LC -20 to 70 -3 to 2 -26 T 80km

Applications
1. Gigabit Ethernet
2. Fiber Channel
3. Switch to Switch interface
4. Switched backplane applications
5. Router/Server interface
6. Other optical transmission systems
Product Pictures
1.25G Sfp Modules 1310nm Dual Fiber Optic Transceiver Compatible With Cisco Huawei HP
1.25G Sfp Modules 1310nm Dual Fiber Optic Transceiver Compatible With Cisco Huawei HP
1.25G Sfp Modules 1310nm Dual Fiber Optic Transceiver Compatible With Cisco Huawei HP
Factory Image
1.25G Sfp Modules 1310nm Dual Fiber Optic Transceiver Compatible With Cisco Huawei HP
Shipping
1.25G Sfp Modules 1310nm Dual Fiber Optic Transceiver Compatible With Cisco Huawei HP

FAQ

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-6 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
