Pen Type Fiber Optic Tools Fiber Optic Visual Fault Locator VFL 10MW Laser Diode
Pen Type Fiber Optic Tools Fiber Optic Visual Fault Locator VFL 10MW Laser Diode
Pen Type Fiber Optic Tools Fiber Optic Visual Fault Locator VFL 10MW Laser Diode
Pen Type Fiber Optic Tools Fiber Optic Visual Fault Locator VFL 10MW Laser Diode
Pen Type Fiber Optic Tools Fiber Optic Visual Fault Locator VFL 10MW Laser Diode
Pen Type Fiber Optic Tools Fiber Optic Visual Fault Locator VFL 10MW Laser Diode
Pen Type Fiber Optic Tools Fiber Optic Visual Fault Locator VFL 10MW Laser Diode
Pen Type Fiber Optic Tools Fiber Optic Visual Fault Locator VFL 10MW Laser Diode
Specifications
Brand Name :
Fibery
Model Number :
VFL10MW
Place of Origin :
China
MOQ :
1Set
Payment Terms :
T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability :
1000Set/Month
Delivery Time :
4-6 work days
Packaging Details :
inner box+outer carton
Product Name :
Visual Fault Locator
Central wavelength :
650+10nm
Light source :
Laser diode
Output Power :
1mw, 10mw,30mw,Optional
Operating Model :
Both CW and Pulse available
Optical Connector :
2.5mm universal connector, 1.25mm connectors
Weight :
120g(Without battery)
Application :
FTTH Testing Tools
Price :
Negotiable
Description

Fiber Optic Visual Fault Locator Pen-type VFL 10MW Fiber Optic Testing Tools

Description

Fiber optic visual fault locator adopts 650nm laser diode as a light emitting device,the output power can be up to 1mw-50mw. It’s applied to single-mode or multi-mode fiber measurements.In the meantime, you can use SC/ST adapter and do not need to configure the conversion interface furthermore, it can optionally connect all frequently-used joint.It is an ideal tool to test various types of optic fiber patch cord, ribbon, bundle fiber optic pigtail and maintain a variety of fiber optic lines for you.

The Pen type VFL is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in optical network. It includes:
Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.
Finding the faults of OTDR dead zone
End-to-end visual fiber identification

Feature

  1. 2.5mm universal connector, for 1.25mm connectors FC (Male)-LC (Female) convertor can be provided on requests.
  2. Operates either in CW or Pulsed
  3. Constant output power
  4. Lower Battery warning
  5. Long battery life (up to 60 hours)
  6. Crash-proof and dust-proof design for laser head
  7. Laser case ground design prevents ESD damage
  8. Burning testing to ensure the reliability.
  9. Portable and rugged, easy to use
  10. Guarantee to CE standards include EMC, EMI, ROHS

Product characteristics

Type Pen-type Visual Fault Finder
Central Wavelength 650nm±10nm (635nm can be required on request)
Emitter Type FP-LD
Output Power Optional choice for 1mw, 10mw on actual needs
Optical Connector 2.5mm universal connector
For 1.25mm connectors, FC (Male)-LC (Female) convertor
can be optional on customer requests
Operating Model Both CW and Pulse available
Pulse Frequency 2~3Hz
Power Supply 2 AA alkaline batteries
Battery Operating Time 650nm@1mw ≥65hour
650nm@10mw≥15hour
Test with Panasonic LR6 AA ALKALINE battery
Operating Temperature -10~+45 (℃)
Storage Temperature -40~+70 (℃)
Dimension (mm) 15X180
Weight 120g(Without battery)

Application

  • Fiber network panels and assemblies
  • Outdoor FTTX applications
  • Cable assembly production facility
  • Testing laboratories
  • Server, switches, routers and OADMS with SC and LC interfac

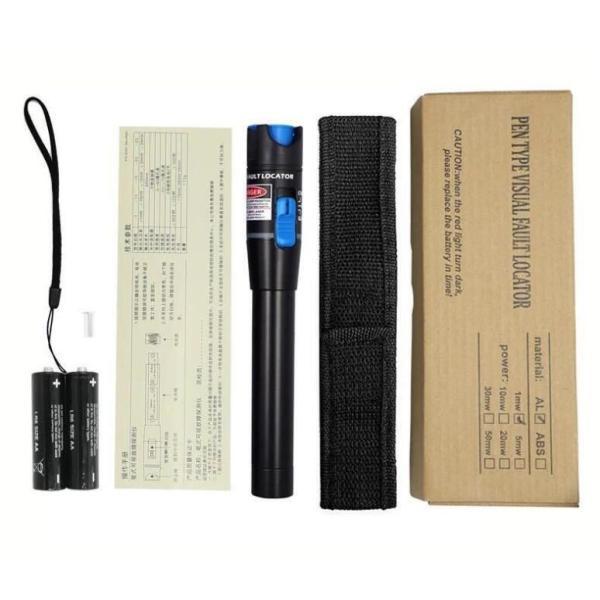

Product Pictures

Pen Type Fiber Optic Tools Fiber Optic Visual Fault Locator VFL 10MW Laser Diode

FAQ

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-6 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
