1.5mm 2.5mm Fiber Optic Tools SC FC ST One Click Fiber Optic Cleaning Pen
1.5mm 2.5mm Fiber Optic Tools SC FC ST One Click Fiber Optic Cleaning Pen
1.5mm 2.5mm Fiber Optic Tools SC FC ST One Click Fiber Optic Cleaning Pen
1.5mm 2.5mm Fiber Optic Tools SC FC ST One Click Fiber Optic Cleaning Pen
1.5mm 2.5mm Fiber Optic Tools SC FC ST One Click Fiber Optic Cleaning Pen
1.5mm 2.5mm Fiber Optic Tools SC FC ST One Click Fiber Optic Cleaning Pen
1.5mm 2.5mm Fiber Optic Tools SC FC ST One Click Fiber Optic Cleaning Pen
1.5mm 2.5mm Fiber Optic Tools SC FC ST One Click Fiber Optic Cleaning Pen
Specifications
Brand Name :
Fibery
Model Number :
OneClick
Place of Origin :
China
MOQ :
1Set
Payment Terms :
T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability :
1000Set/Month
Delivery Time :
4-6 work days
Packaging Details :
inner box+outer carton
Product Name :
Optic Fiber Cleaner
Universal :
1.5mm 2.5mm
Connector :
SC/ST/FC
Durability :
>1000 matings
Insertion Loss :
IL<0.2db
Return Loss :
> 50db
Mode :
Singlemode or Multimode
Application :
Fiber Optic Cleaning
Price :
Negotiable
Description

Fiber Optic Cleaning Tools 2.5 1.5mm SC FC ST One Click Cleaner Fiber Optic Cleaning Pen

Description

Fiber Optic Cleaner Pen is designed to specially work well with the female connectors, this instrument cleans the ferrule end faces removing dust, oil, and other debris without nicking or scratching the end face.
The One-Click Cleaner is an easy-to-use option for cleaning 2.5mm ferruled connectors in adapters. Simply insert the One-Click Cleaner into an adapter and push until an audible "click" is heard. The One-Click Cleaner uses the mechanical push action to advance an optical grade cleaning tape while the cleaning tip is rotated to ensure the fiber end-face is effectively, but gently, cleaned. The One-Click Cleaner is a must-have for field technicians. Small enough to fit in a shirt pocket and a great addition to cleaning kits.

Feature

  • One action cleaning system
  • Easy pushing motion engages connector and initiates cleaner
  • Disposable with 800+ cleanings per piece
  • Made from anti static resin
  • Cleaning micro fibers are densely stranded and debris free
  • Extendable tip reaches recessed connectors
  • Cleaning system rotates 180 for a full sweep
  • Audible click when engaged

Product characteristics

Model Number
2.5mm/1.25mm
Classification Color
white and blue
Application Fiber Optic Connector &Adapter
SC,FC,ST,LC/LC,MU
Dimensions(mm)
(Guide Cap dimentions and prongs are not included)
W17.5xH17.5xL165
(Nozzle Extendability:L200)
Function/Handle type
One-Push
NO. of Cleanings
800+ times
Cleaning Method
Dry(Cleaning the Zirconia ferrule endface with cleaning cloth,with no chemical or solvent
ODC version available
"click" is heard

Advantage

Easy push operation use

Optical grade cleaning tape

Must have for field technicians

Rotating cleaning tip

Application

  • Fiber network panels and assemblies
  • Outdoor FTTX applications
  • Cable assembly production facility
  • Testing laboratories
  • Server, switches, routers and OADMS with SC and LC interfac

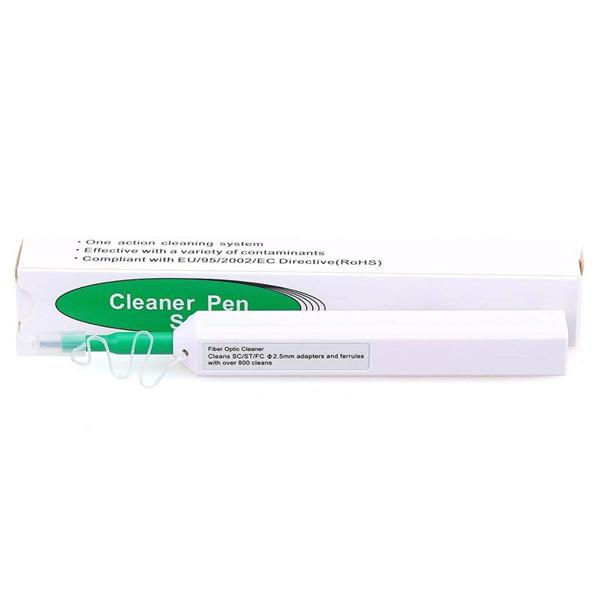

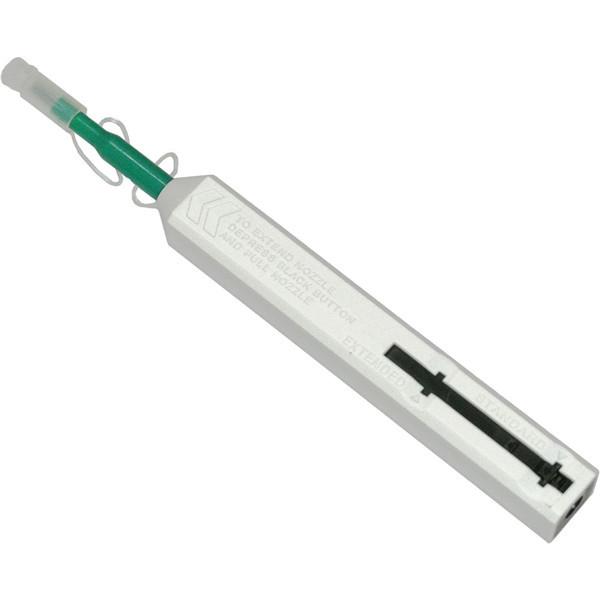

Product Pictures

1.5mm 2.5mm Fiber Optic Tools SC FC ST One Click Fiber Optic Cleaning Pen1.5mm 2.5mm Fiber Optic Tools SC FC ST One Click Fiber Optic Cleaning Pen

Package details

FAQ

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-6 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
