Singlemode OTDR Launch Cable Box With Test Extension Line For Dead Zone Eliminator
Singlemode OTDR Launch Cable Box With Test Extension Line For Dead Zone Eliminator
Singlemode OTDR Launch Cable Box With Test Extension Line For Dead Zone Eliminator
Singlemode OTDR Launch Cable Box With Test Extension Line For Dead Zone Eliminator
Singlemode OTDR Launch Cable Box With Test Extension Line For Dead Zone Eliminator
Singlemode OTDR Launch Cable Box With Test Extension Line For Dead Zone Eliminator
Singlemode OTDR Launch Cable Box With Test Extension Line For Dead Zone Eliminator
Singlemode OTDR Launch Cable Box With Test Extension Line For Dead Zone Eliminator
Specifications
Brand Name :
Fibery
Certification :
ISO9001
Place of Origin :
China
MOQ :
1Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability :
1000Set/Month
Delivery Time :
4-6 work days
Packaging Details :
inner box+outer carton
Product Name :
OTDR Launch Cable
Fiber Length :
500M -2km
Fiber Types :
SM,MM
Insertion Loss :
<0.3 dB/km typical, <0.5 dB/km max
Material :
SR Polypropylene
Dimension :
230x125x60mm
Net Weight :
0.75 kg (without fiber)
Application :
FTTH FTTB FTTX Network
Description

Singlemode OTDR Launch Cable Box With Test Extension Line For Dead Zone Eliminator

Description

The OTDR Launch Cable is designed to aid inthe testing of fiber optic cable when using an OTDR tohelp minimize the effects of the OTDR's launch pulseon measurement uncertainty. Using a launch cable at the beginning of the fiber under test and a OLCB receive cable at the end of the fiber under testallows the ability to perform loss measurements onentire length of the fiber.
The light weight unit measures only 6.25” in diameter and 1.25” high and includes a carabiner clip allowing the unit to be easily attached to belts,
equipment straps and rack mounts. Units are available in lengths from 100 up to 1000 meters with a choice of a variety of connectors in order to connect to virtually all OTDR and patch panel ports.

Specification

Mechanical Environmental Characteristics
Dimension 9.37" x 5.56" x 2.62"
Material SR Polypropylene
Color Yellow
Weight 0.75 kg (without fiber)
Packaging Rugged,hard-shell transit case
Storage Temperature -40 ~ +85°C
Operating temperature -40 ~ +85°C
Humidity 0~95% (no condensing)

Fiber & Connector Characteristics
Fiber Types G652D
Lead Length 2 Meters,3mm buffer
Typical Loss <1dB@1310 for 1000 meters
Connector Type SC/LC/FC/ST
Polish PC,UPC,APC
Return Loss UPC>=50dB,APC>=60dB,PC>=35dB
Repeatability(dB) <=0.2(1000 times)
Exchangeability(dB) <=0.2

Feature

1. Use as a Pulse Suppressor, OTDR Launch/Receive Cable, Delay Line, Training, Product Demonstrations, Calibration
2. Leads wrap in the same direction for quick easy access and storage
3. Carabiner Clip included allows unit to be attached to equipment straps, belts and racks
4. Light weight, easy to carry, small/low profile design portable for field use
5. Singlemode, Multimode 62.5/125, Multimode 50/125 OM2 and Multimode 50/125 OM3
6. Custom length configurations also available

Application

OTDR Launch Cable/Lead
Equipment Calibration
System emulation of loss, length, time delay and reflectance

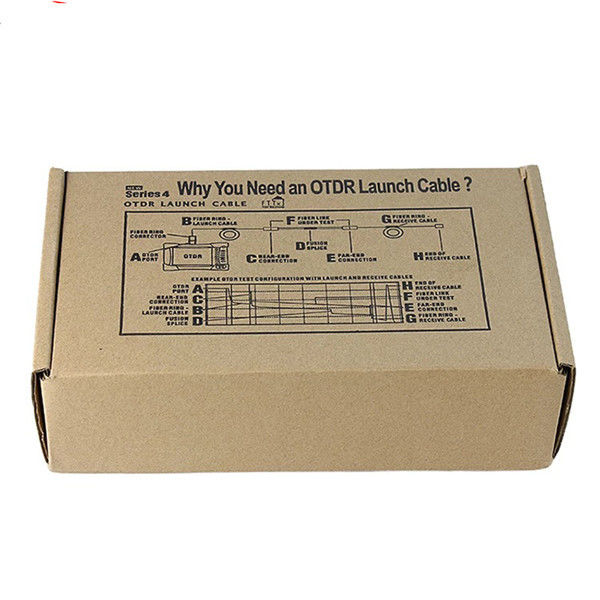

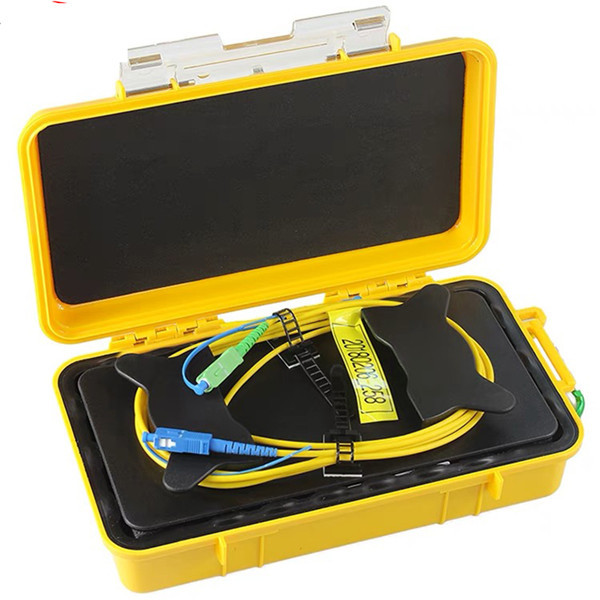

Product Pictures

Singlemode OTDR Launch Cable Box With Test Extension Line For Dead Zone Eliminator

Singlemode OTDR Launch Cable Box With Test Extension Line For Dead Zone Eliminator

FAQ

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-6 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
