Hybrid Singlemode Sc Fc Adapter Fiber Optic Cable Coupler 1 Year Warranty
Hybrid Singlemode Sc Fc Adapter Fiber Optic Cable Coupler 1 Year Warranty
Hybrid Singlemode Sc Fc Adapter Fiber Optic Cable Coupler 1 Year Warranty
Hybrid Singlemode Sc Fc Adapter Fiber Optic Cable Coupler 1 Year Warranty
Hybrid Singlemode Sc Fc Adapter Fiber Optic Cable Coupler 1 Year Warranty
Hybrid Singlemode Sc Fc Adapter Fiber Optic Cable Coupler 1 Year Warranty
Hybrid Singlemode Sc Fc Adapter Fiber Optic Cable Coupler 1 Year Warranty
Hybrid Singlemode Sc Fc Adapter Fiber Optic Cable Coupler 1 Year Warranty
Specifications
Brand Name :
FIBERY
Model Number :
FYFASCST
Certification :
ISO9001
Place of Origin :
China
MOQ :
1Pcs
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability :
50000Unit/Week
Delivery Time :
3-6 work days
Packaging Details :
pvc box+outer carton
Product name :
Fiber adapter
Connector :
FC-SC
Fiber type :
SM
Insertion loss :
≤0.2db
Return loss :
upc≥50db/apc≥60db
Frequency of usage :
≥1000 times
Operating Temperature :
-40℃~+80℃
Warranty :
1 year
Description

Fibre Optic Accessories Hybrid Singlemode Sc-Fc Adapter Fiber Optic Coupler

De​scription

Fiber optic adapter is also called fiber optic coupler. People sometimes also name them to be mating sleeves and hybrid adaptors. They include many types, such as FC, SC, ST, LC, MTRJ, Widely used in ODF, fiber transmission equipment etc.

The product is an elastic clip structure, which is convenient and quick to connect and easy to install on site. The internal assembly is 100% high quality ceramic (zirconia) sleeve, which has extremely reliable alignment ability, good repeatability and low insertion loss. The structure conforms to the domestic optical fiber industry standard and the international IEC standard; it is suitable for various connection types of optical fiber SC type.

Feature

LC/SC/FC/ST Type Optional

UPC or APC Optional

SM or MM Optional

With/Without flange Optional

Simplex , Duplex or Quad Optional

Zirconia Sleeve ,Compact design

Low insertional loss, High return loss

Comply with IEC, Telcordia GR 326 and JIS standard

Low insertion and back reflection loss, high precision alignment

Telcordia, TIA/EIA compliance

Compact design, Plastic housing

Good changeability and repeatability

Good Durability

Specification

Parameter Unit LC, SC, FC, ST
SM MM
PC UPC APC PC
Insertion Loss (Typical) dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Return Loss dB ≥45 ≥50 ≥60 ≥30
Exchangeability dB ≤0.2
Repeatability dB ≤0.2
Durability Time >1000
Operating Temperature °C -40~75
Storage Temperature °C -45~85

Application

1.Fiber Optical Communication System

2.FTTH

3.Local Area Network

4.Fiber Sensor

5.CATV

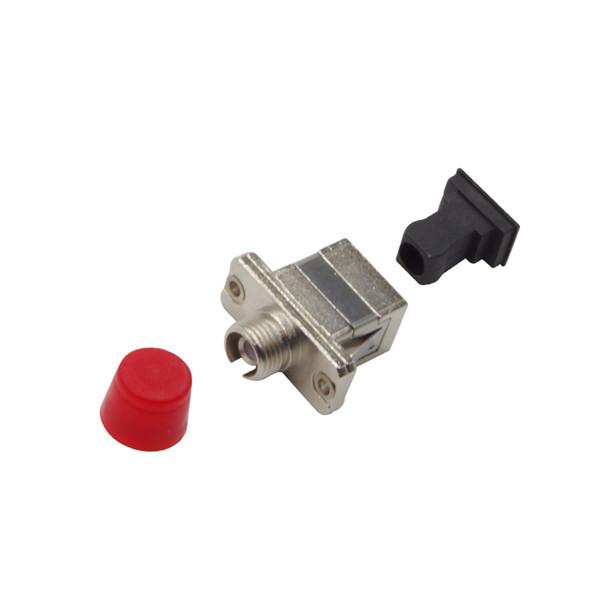

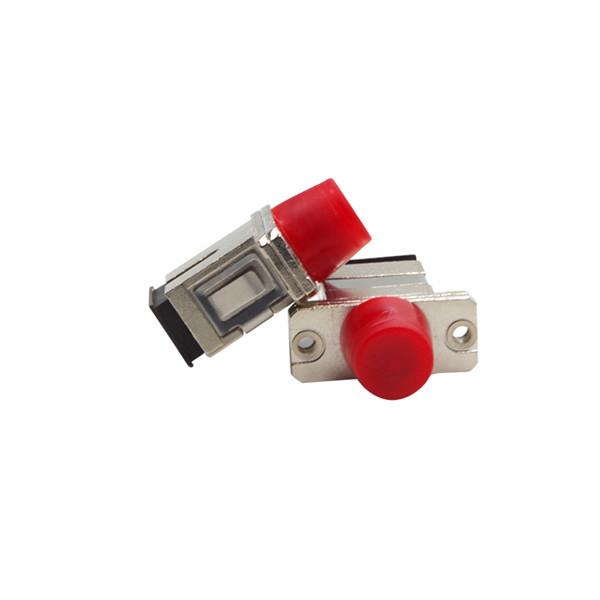

Product pictures

Hybrid Singlemode Sc Fc Adapter Fiber Optic Cable Coupler 1 Year Warranty

Hybrid Singlemode Sc Fc Adapter Fiber Optic Cable Coupler 1 Year Warranty

FAQ

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-6 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
