SPMT Heavy Duty Trailer Independent Power Heavy Load Trailer For Industrial Logistics
SPMT Heavy Duty Trailer Independent Power Heavy Load Trailer For Industrial Logistics
SPMT Heavy Duty Trailer Independent Power Heavy Load Trailer For Industrial Logistics
SPMT Heavy Duty Trailer Independent Power Heavy Load Trailer For Industrial Logistics
SPMT Heavy Duty Trailer Independent Power Heavy Load Trailer For Industrial Logistics
SPMT Heavy Duty Trailer Independent Power Heavy Load Trailer For Industrial Logistics
SPMT Heavy Duty Trailer Independent Power Heavy Load Trailer For Industrial Logistics
SPMT Heavy Duty Trailer Independent Power Heavy Load Trailer For Industrial Logistics
Specifications
Brand Name :
Huilong
Model Number :
Heavy Duty Trailer
Certification :
ISO9001
Place of Origin :
Suizhou, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 units per month
Delivery Time :
4~6 weeks
Packaging Details :
in nude or by wax
Module Width :
3,000 mm
Main Beam Material :
AH60, 40Cr
Axle Range :
6/8/10/12/16/20 sets
Power System :
24V, 7 core socket
Axle Capacity :
13 Tons
Suspension Config :
Hydraulic Suspension
Description

SPMT Heavy Duty Trailer Independent Power Heavy Load Trailer For Industrial Logistics

Description:

• Core Application

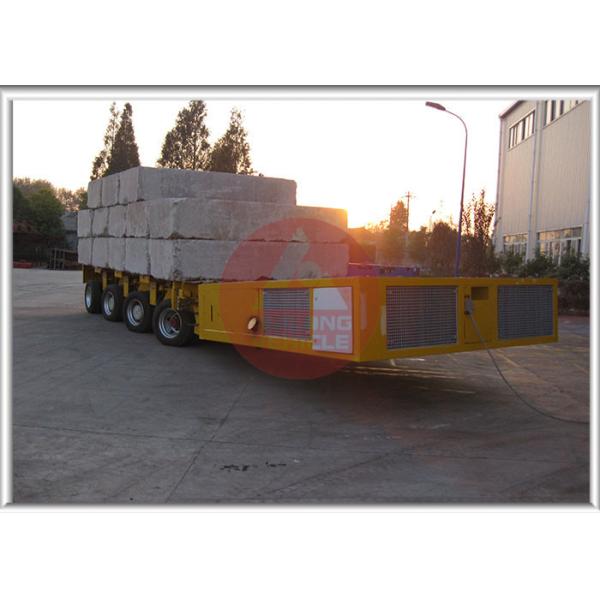

Multi axle trailer SPMT trailer modular transporter is the huge transportation equipment for industrial logistics and provides the solution of transporting extremely large, long and heavy cargoes which are not easily split. Especially, it is skillful in transporting drilling platform, module factory, module used in ocean engineering etc. Its advantages cover flexible operation, convenient stevedoring, and heavy load.

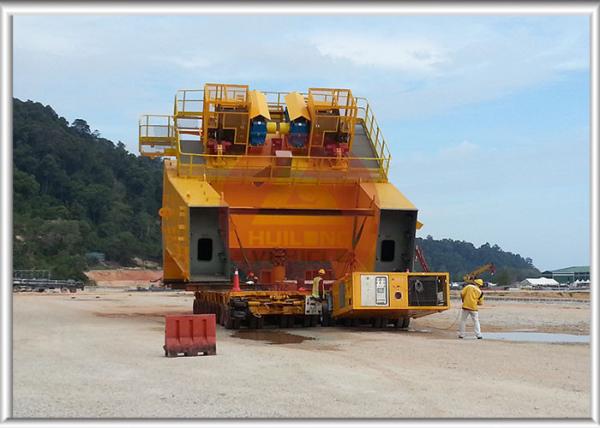

• Elevator-Platform

When the goods are put on a trestle, the SPMT can enable the lifting function to elevate the goods. Then, the goods will be separated from the trestle using the power offered by SPMT. In most working conditions, thousands of tons of goods cannot be lifted by any crane. Only SPMT is capable of the heavy-duty handling.

Advantages:

• Flexible Operation

The movement, control and steering are flexible and reliable. Even during the full load, the automatic steering and lifting can be realized in the low pressure. The closed lubrication system is adopted for the trailer. Key seal components are imported from famous manufacturer. Hence, frequent maintenance is avoided.

• Wide Working Conditions

SPMT trailer can normally work in -40°C - 50°C and relative humidity 100%.

Specifications:

Function

For heavy duty machine:

as transformer, crane, excavator transportation
Basic Module Width 3,000 mm
Modules Connections

Sidebattle for different combinations;

Axle units mounted on the frame

by bolting equipment for modular combinations
Main Beam Material AH60, 40Cr
Suspension Stroke hydraulic + / - 300 mm
Axles 6/8/10/12/16/20 sets optional (13 Tons per axle)
Wheel Base 1500mm
King Pin 90# (3.5 inch)
Braking System Dual line braking system with automatic air brake and ABS
Electrical System

24V, 7 core socket

Lights according to European Standards
Tool Box 1 set with standard tools
Spare Tire Carrier 2 Sets
Gallery
SPMT Heavy Duty Trailer Independent Power Heavy Load Trailer For Industrial Logistics
